Insights on Amorphous Silicon Nip and MIS 3D Position Sensitive Detectors

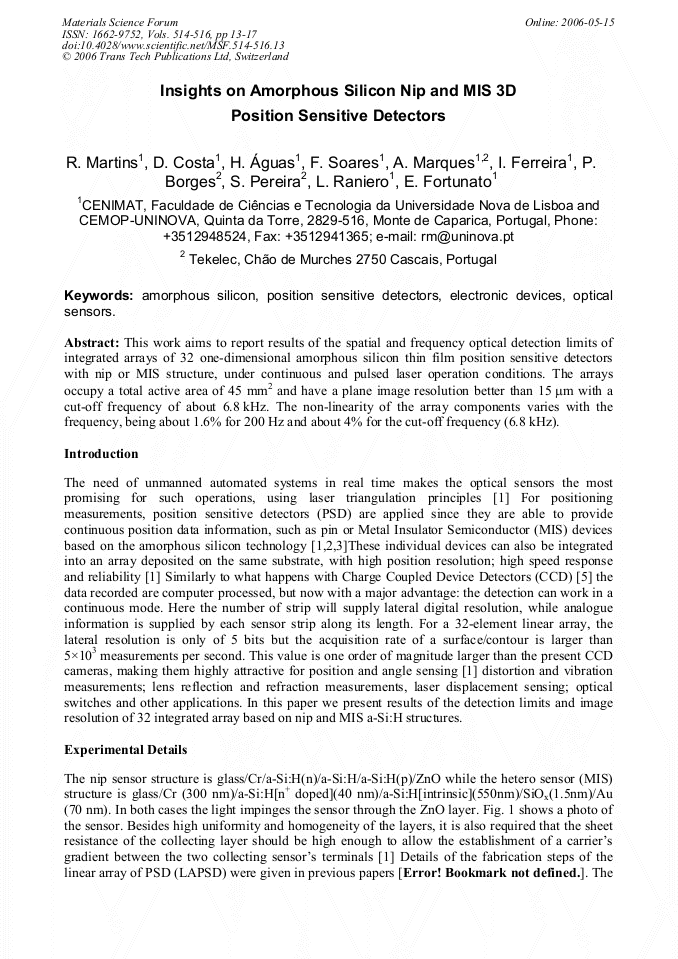

Article Preview

This work aims to report results of the spatial and frequency optical detection limits of integrated arrays of 32 one-dimensional amorphous silicon thin film position sensitive detectors with nip or MIS structure, under continuous and pulsed laser operation conditions. The arrays occupy a total active area of 45 mm2 and have a plane image resolution better than 15 m with a cut-off frequency of about 6.8 kHz. The non-linearity of the array components varies with the frequency, being about 1.6% for 200 Hz and about 4% for the cut-off frequency (6.8 kHz).



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




R. Martins et al., "Insights on Amorphous Silicon Nip and MIS 3D Position Sensitive Detectors", Materials Science Forum, Vols. 514-516, pp. 13-17, 2006

Online since:

May 2006




[1] S. Middelhoek, S.A. Audet: Microelectronics and Signal Processing - Silicon Sensors, Academic Press, London, (1989).

[2] E. Fortunato, F. Soares, P. Teodoro, N. Guimarães, M. Mendes, H. Águas, V. Silva, R. Martins. Thin Solid Films 337 (1999) 222.


[3] E. Fortunato, L. Pereira, H. Águas, I. Ferreira, R. Martins, Sensors and Actuators A: Physical, 116, 1 (2004) 119.

[4] R. Martins, E. Fortunato: Thin Film Position Sensitive Detectors: From 1D to 3D Applications, ed. by R. Street, Technology and Applications of Amorphous Silicon (Springer-Verlag, 2000), chap. 8. 342-409.


[5] H. Kahmen, M. Roic: A new generation of measurement robots for object reconstruction without targeting, in Optical 3d Measurements III, eds. A. Grün and H. Kahemen, Karlsruche, Germany, Herbert Wichmann Verlag (1995) pp.251-262.

[6] D. Brida, E. Fortunato, I. Ferreira, H. Águas, R. Martins, J. N. -Cryst. Sol. 299-302 (2002) 1277. [7 E. Fortunato, R. Martins, Sensors & Actuators A 68 (1998) 244.

[8] James E. Harvey in Handbook of Optics, edited by Michael Bass Vol. II, chapter 11, (1995).

[9] N. Koren, Understanding of Image Sharpness, Amazon. com (2004).
