Sintering M3/2 High Speed Steel Powder by DMLS Process

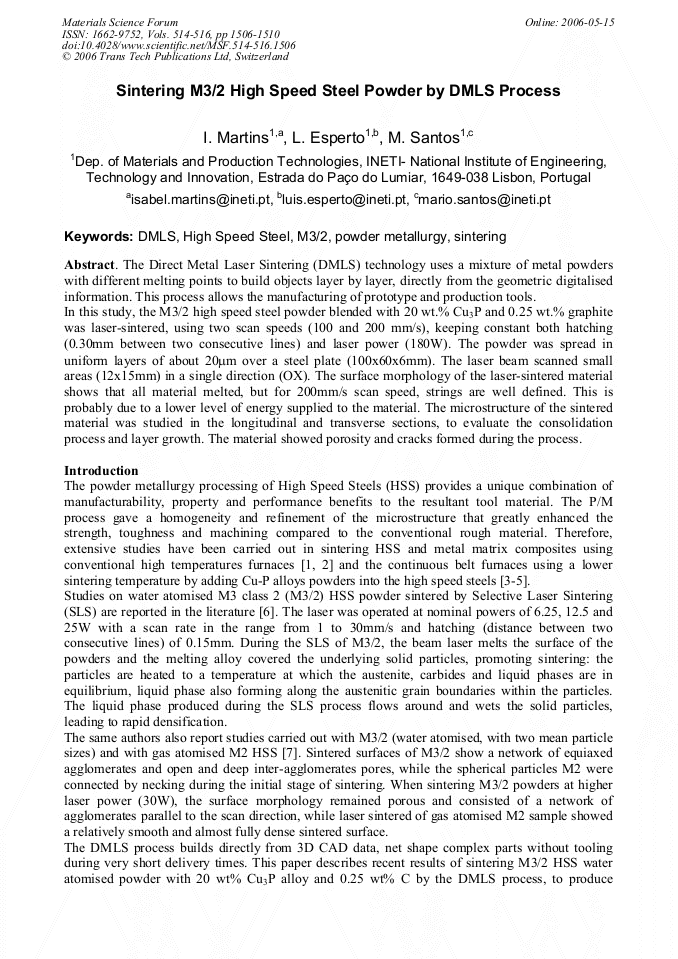

Article Preview

The Direct Metal Laser Sintering (DMLS) technology uses a mixture of metal powders with different melting points to build objects layer by layer, directly from the geometric digitalised information. This process allows the manufacturing of prototype and production tools. In this study, the M3/2 high speed steel powder blended with 20 wt.% Cu3P and 0.25 wt.% graphite was laser-sintered, using two scan speeds (100 and 200 mm/s), keeping constant both hatching (0.30mm between two consecutive lines) and laser power (180W). The powder was spread in uniform layers of about 20m over a steel plate (100x60x6mm). The laser beam scanned small areas (12x15mm) in a single direction (OX). The surface morphology of the laser-sintered material shows that all material melted, but for 200mm/s scan speed, strings are well defined. This is probably due to a lower level of energy supplied to the material. The microstructure of the sintered material was studied in the longitudinal and transverse sections, to evaluate the consolidation process and layer growth. The material showed porosity and cracks formed during the process.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




I. M. Martins et al., "Sintering M3/2 High Speed Steel Powder by DMLS Process", Materials Science Forum, Vols. 514-516, pp. 1506-1510, 2006

Online since:

May 2006




[1] C.S. Wright and B. Ogel, Powder Metall. 36 (1993), p.213.

[2] J.D. Bolton and A.J. Gant, Powder Metall. 40 (1997), p.143.

[3] I.M. Martins, M.M. Oliveira and H. Carvalhinhos, Colloque sur la Maitrise des Proprietés des Métaux Frittés par leur Microstruture, (1990), p.16. 1-16. 6.

[4] J.D. Bolton, M.M. Oliveira and I.M. Martins, Conference IMF7, Limerick, (1991).

[5] I.M. Martins, M.M. Oliveira and H. Carvalhinhos, PM 92, 21-26, S. Francisco USA, Advances in Powder Metallurgy & Particulate Materials-1992, vol6 (1992), pp.213-222.

[6] H.J. Niu and I.T.H. Chang, Scripta Materalia, vol. 39, Nº1 (1998), pp.67-72.

[7] H.J. Niu and I.T.H. Chang, Scripta Materalia, vol. 41, Nº1 (1999), pp.25-30.

[8] M. Colomb and G. Brunel, Patent N. º 8604309 Alliages frittés metafram, France, (1988).

[9] Standard test method for microindentation hardness of materials, ASTM E 384-99 (1999).

[10] Metallic materials-Vickers hardness-Part1: Test method, ISO 6507-1 (1977).

[11] S. Pogson, P. Fox, W. O` Neill, C. J. Sutcliffe, Materials Science and Engineering, A 386 (2004), pp.453-459. .
