New Ceramic Products from Slate and Aluminium Sludge Wastes

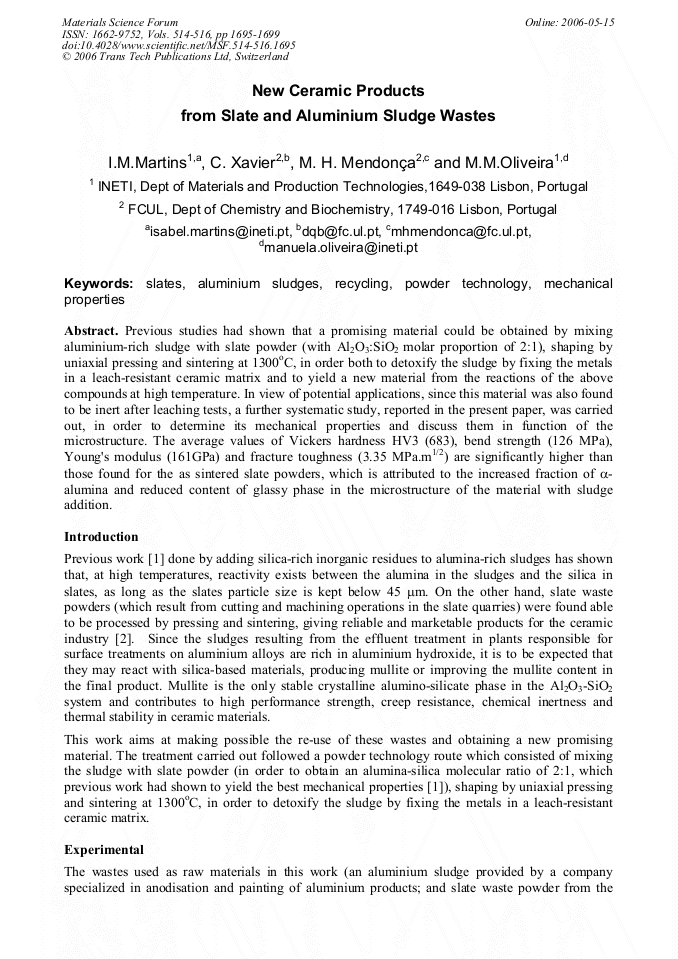

Article Preview

Previous studies had shown that a promising material could be obtained by mixing aluminium-rich sludge with slate powder (with Al2O3:SiO2 molar proportion of 2:1), shaping by uniaxial pressing and sintering at 1300oC, in order both to detoxify the sludge by fixing the metals in a leach-resistant ceramic matrix and to yield a new material from the reactions of the above compounds at high temperature. In view of potential applications, since this material was also found to be inert after leaching tests, a further systematic study, reported in the present paper, was carried out, in order to determine its mechanical properties and discuss them in function of the microstructure. The average values of Vickers hardness HV3 (683), bend strength (126 MPa), Young's modulus (161GPa) and fracture toughness (3.35 MPa.m1/2) are significantly higher than those found for the as sintered slate powders, which is attributed to the increased fraction of α- alumina and reduced content of glassy phase in the microstructure of the material with sludge addition.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




I. M. Martins et al., "New Ceramic Products from Slate and Aluminium Sludge Wastes", Materials Science Forum, Vols. 514-516, pp. 1695-1699, 2006

Online since:

May 2006




[1] I. M. Martins, S. Vieira, V. Livramento, J. Sousa, F. Delmas, M. M. Oliveira and M. T. Vieira: Materials Science Forum, Vol. 455-456 (2004), p.822.


[2] I. M. Martins, J. Sousa, L. Catarino, M. T. Vieira and M. M. Oliveira: Key Engineering Materials, Vol. 230-232(2002), p.380.

[3] Y-F Chen, M-C Wang, M-H Hon: J. Mater. Res., Vol. 18 (2003), p.1355.

[4] R. Morrell: Handbook of Properties of Technical & Engineering Ceramics (NPL, UK, 1989).

[5] M. Dondi, G. Ercolani, C. Melandri, C. Mingazzini and M. Marsigli: Interceram, Vol. 48 (1999), p.75.

[6] M. Campos, F. Velasco, M.A. Martinez and J.M. Torralba: Journal of the European Ceramic Society Vol. 24 (2004), p.811.

[7] S. Kumar, K. K. Singh and P. Ramachandrarao: J. Materials Science, vol. 36 (2001), p.5917.

[8] L. Barbieri, L. Bonfatti, C. Leonelli, T. Manfredini, D. Settembre Blundo: Industrial Ceramics, Vol. 17 (1997), p.133.
