Structural and Magnetic Properties of Chemically Deposited Hexaferrites

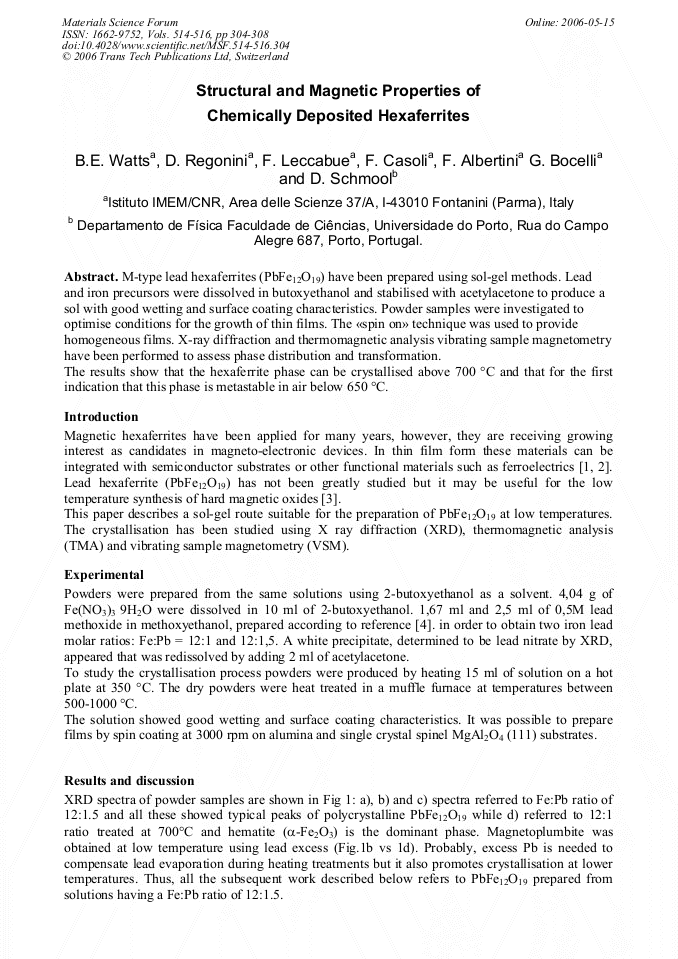

Article Preview

M-type lead hexaferrites (PbFe12O19) have been prepared using sol-gel methods. Lead and iron precursors were dissolved in butoxyethanol and stabilised with acetylacetone to produce a sol with good wetting and surface coating characteristics. Powder samples were investigated to optimise conditions for the growth of thin films. The «spin on» technique was used to provide homogeneous films. X-ray diffraction and thermomagnetic analysis vibrating sample magnetometry have been performed to assess phase distribution and transformation. The results show that the hexaferrite phase can be crystallised above 700 °C and that for the first indication that this phase is metastable in air below 650 °C.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




B. E. Watts et al., "Structural and Magnetic Properties of Chemically Deposited Hexaferrites", Materials Science Forum, Vols. 514-516, pp. 304-308, 2006

Online since:

May 2006




[1] Oliver, S. A., Yoon, S. D., Kozulin, I., Chen, M. L. & Vittoria, C., Growth and characterization of thick oriented barium hexaferrite films on MgO (111) substrates, Appl. Phys. Lett., 2000, 76, 3612-3614.


[2] Qi, X. W., Zhou, J., Yue, Z. X., Gui, Z. L. & Li, L. T., Study on magnetic and dielectric properties of ferroelectric/ferromagnetic composites, Electronic Components & Materials, 2003, 22, 3-5.

[3] Díaz-Castañón, S., Leccabue, F., Watts, B. E., Yapp, R., Asenjo, A. & Vázquez, M., Oriented PbFe12O19 thin films prepared by pulsed laser deposition on sapphire substrate, Mater. Lett., 2001, 47, 356-361.


[4] Chiorboli, G., Leccabue, F., Watts, B. E., Di Cristoforo, A., Mengucci, P. & Majni, G., The crystallisation behaviour of Pb(ZrTi)O3 sol-gel films on platinum electrodes, Mat. Sci. and Eng B, 1997, 47, 263-268.
