Laser Developed Al-Cr Surface Alloys: Microstructure, Mechanical and Wear Behaviour


Article Preview

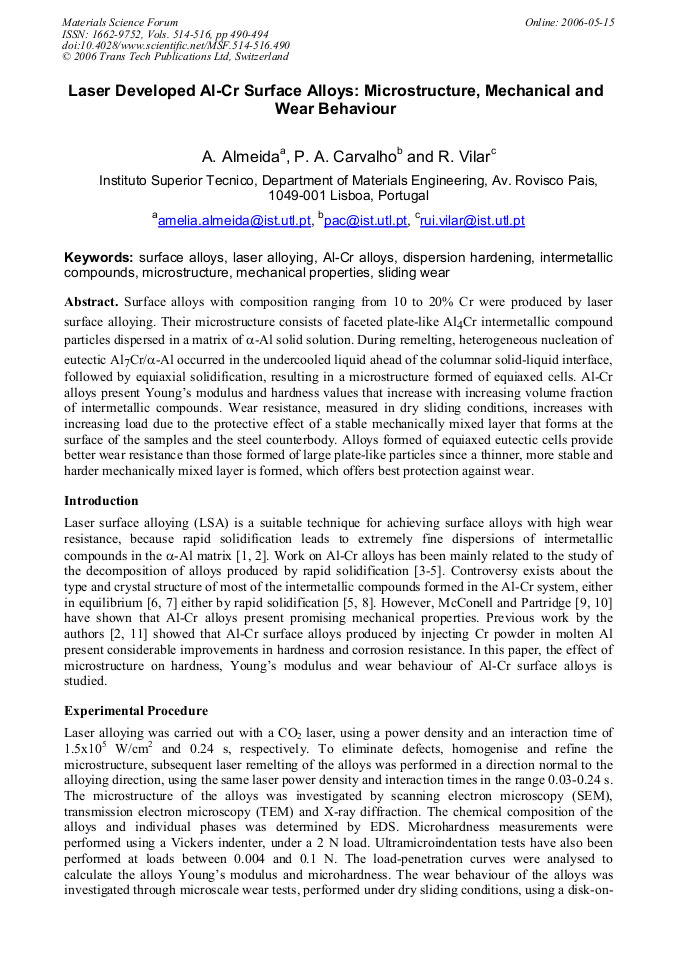

Surface alloys with composition ranging from 10 to 20% Cr were produced by laser surface alloying. Their microstructure consists of faceted plate-like Al4Cr intermetallic compound particles dispersed in a matrix of α-Al solid solution. During remelting, heterogeneous nucleation of eutectic Al7Cr/α-Al occurred in the undercooled liquid ahead of the columnar solid-liquid interface, followed by equiaxial solidification, resulting in a microstructure formed of equiaxed cells. Al-Cr alloys present Young’s modulus and hardness values that increase with increasing volume fraction of intermetallic compounds. Wear resistance, measured in dry sliding conditions, increases with increasing load due to the protective effect of a stable mechanically mixed layer that forms at the surface of the samples and the steel counterbody. Alloys formed of equiaxed eutectic cells provide better wear resistance than those formed of large plate-like particles since a thinner, more stable and harder mechanically mixed layer is formed, which offers best protection against wear.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




A. Almeida et al., "Laser Developed Al-Cr Surface Alloys: Microstructure, Mechanical and Wear Behaviour", Materials Science Forum, Vols. 514-516, pp. 490-494, 2006

Online since:

May 2006




[1] D.K. Das, K.S. Prasad and A.G. Paradkar: Mater. Sci. Engn. A Vol. 174 (1994), p.75.

[2] A. Almeida, M. Anjos, R. Vilar, R. Li, M.G.S. Ferreira, W.M. Steen and K.G. Watkins: Surf. Coat. Techn. Vol. 70 (1995), p.221.

[3] H. Warlimont, W. Zingg and P. Furrer: Mater. Sci. Engn. A Vol. 23 (1976), p.101.

[4] P. Furrer and H. Warlimont: Mater. Sci. Engn. A Vol. 28 (1977), p.127.

[5] L. Bendersky, R.J. Schaefer, F.S. Biancaniello and D. Shechtman: J. Mater. Sci. Vol. 21 (1986), p.1889.

[6] J.L. Murray: J. Phase Equilibria Vol. 19 (1998), p.368.

[7] K. Mahdouk and J. -C. Gachon: J. Phase Equilibria Vol. 21 (2000), p.157.

[8] V.T. Swamy, S. Ranganathan and K. Chattopadhyay: J. Mater. Res. Vol. 4 (1989), p.539.

[9] M.C. McConnell and P.G. Partridge: Acta Metall. Vol. 35 (1987), p. (1973).

[10] P.G. Partridge and M.C. McConnell: Acta Metall. Vol. 35 (1987), p. (1981).

[11] A. Almeida, B. Triep, R. Vilar, R. Li, M.G.S. Ferreira, K.G. Watkins and W.M. Steen: ATTT-9th Int. Congr. Heat Treatment and Surface Engn. (PYC Edition, Nice, France 1994), p.483.

[12] A. Kassman, S. Jacobson, L. Erickson, P. Hedenqvist and M. Olson: Surf. Coat. Techn. Vol. 50 (1991), p.75.

[13] T. Chande and J. Mazumder: Metall. Trans. B Vol. 14 (1983), p.181.

[14] B.J. Keene: Int. Mater. Rev. Vol. 38 (1993), p.157.

[15] M. Audier, M. D. -Charre, E. Laclau and H. Klein: J. Alloys Comp. Vol. 220 (1995), p.225.

[16] M.J. Cooper: Acta Cryst. Vol. 13 (1960), p.257.

[17] A. Almeida: Ph.D. Thesis (Instituto Superior Tecnico, Lisbon 2005).

[18] W.D. Nix and H. Gao: J. Mech. Phys. Solids Vol. 46 (1998), p.411.

[19] B. Venkataraman and G. Sundararajan: Wear Vol. 245 (2000), p.22.

[20] X.Y. Li and K.N. Tandon: Wear Vol. 245 (2000), p.148.

[21] B. Venkataraman and G. Sundararajan: Acta Mater. Vol. 44 (1996), p.461.
