Surface Integrity of H13 ESR Mould Steel Milled by Carbide and CBN Tools

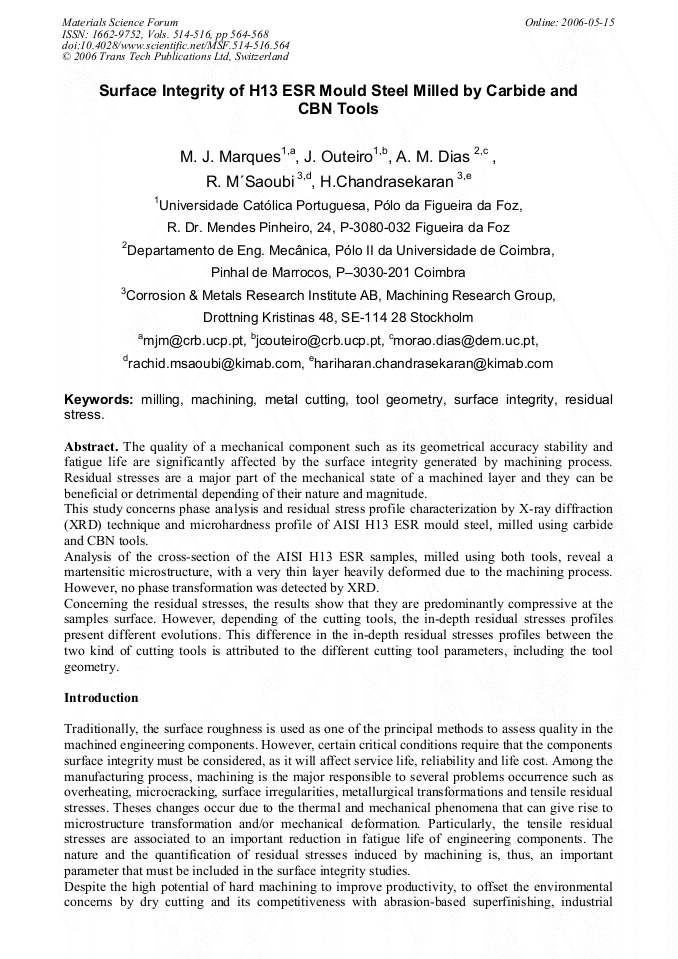

Article Preview

The quality of a mechanical component such as its geometrical accuracy stability and fatigue life are significantly affected by the surface integrity generated by machining process. Residual stresses are a major part of the mechanical state of a machined layer and they can be beneficial or detrimental depending of their nature and magnitude. This study concerns phase analysis and residual stress profile characterization by X-ray diffraction (XRD) technique and microhardness profile of AISI H13 ESR mould steel, milled using carbide and CBN tools. Analysis of the cross-section of the AISI H13 ESR samples, milled using both tools, reveal a martensitic microstructure, with a very thin layer heavily deformed due to the machining process. However, no phase transformation was detected by XRD. Concerning the residual stresses, the results show that they are predominantly compressive at the samples surface. However, depending of the cutting tools, the in-depth residual stresses profiles present different evolutions. This difference in the in-depth residual stresses profiles between the two kind of cutting tools is attributed to the different cutting tool parameters, including the tool geometry.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho






M. J. Marques et al., "Surface Integrity of H13 ESR Mould Steel Milled by Carbide and CBN Tools", Materials Science Forum, Vols. 514-516, pp. 564-568, 2006

Online since:

May 2006




[1] Y. Kono, A. Hara, S. Yazu, T. Uchida, Y. Mori, Cutting Performance of Sintered CBN Tools, Cutting Tool Materials, Proceedings of the International Conference, American Society for Metals, Mitchell , Kentuchy, (1980).

[2] M. M. El-Khabeery, M. Fattouh, Residual stresses distribution caused by milling, Int. J. of Machine Tools and Manufacture, 29 (1989) 391-401.

DOI: 10.1016/0890-6955(89)90008-4

[3] Y. Matsumoto, F. Hashimoto, G. Lahoti, Surface Integrity Generated by Precision Hard Turning, Annals of the CIRP, 48/1 (1999) 59-62.

DOI: 10.1016/s0007-8506(07)63131-x

[4] H. A. Kishawy, M. A. Elbestawi, Effect of edge preparation and cutting speed on surface integrity of die material in high speed machining, ASME Proc. of Int. Mech. Eng. Congress and Exposition, 8 (1998).

[5] J. D. Thiele, S. N. Melkote, R. A. Peascoe, T. Watkins, Effect of cutting-edge geometry and workpiece hardness on surface residual stresses in finish hard turning of AISI 52100 steel, ASME J. Manuf. Sci. Eng., 122 (2000) 642-649.

DOI: 10.1115/1.1286369

[6] Y. Matsumoto, M. M. Barash, C. R. Liu, Effect of Hardeness on the Surface Integrity of AISI 4340 Steel, Journal of Engineering for Industry, 108 (1986) 169-175.

DOI: 10.1115/1.3187060

[7] D. W. Wu, Y. Matsumoto, The Effect of Hardness on Residual Stresses in Orthogonal Machining of AISI 4340 Steel, Journal of Engineering for Industry, 112 (1990) 245-252.

DOI: 10.1115/1.2899582

[8] W. König, R. Komanduri, H. K. Tonshoff, G. Ackershott, Machining of Hard Materials, Annals of the CIRP, 39/1 (1990) 417-427. vc = 600 m/min.

DOI: 10.1016/s0007-8506(16)30164-0
