Thermoreactivity of Sol-Gel Precursor for ZnO-Based Thin Films

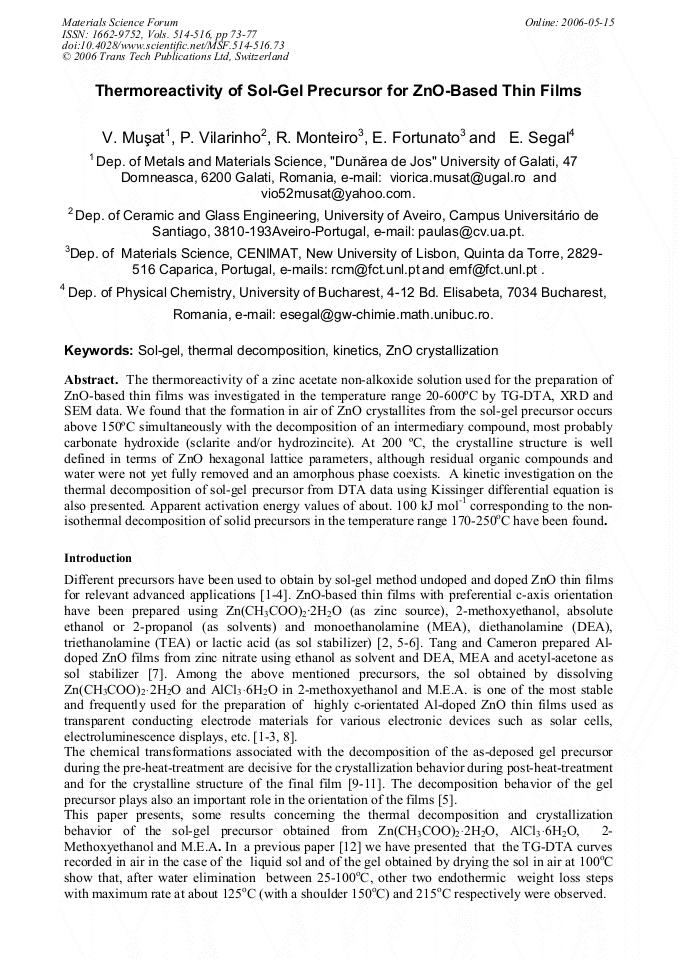

Article Preview

The thermoreactivity of a zinc acetate non-alkoxide solution used for the preparation of ZnO-based thin films was investigated in the temperature range 20-600°C by TG-DTA, XRD and SEM data. We found that the formation in air of ZnO crystallites from the sol-gel precursor occurs above 150°C simultaneously with the decomposition of an intermediary compound, most probably carbonate hydroxide (sclarite and/or hydrozincite). At 200 °C, the crystalline structure is well defined in terms of ZnO hexagonal lattice parameters, although residual organic compounds and water were not yet fully removed and an amorphous phase coexists. A kinetic investigation on the thermal decomposition of sol-gel precursor from DTA data using Kissinger differential equation is also presented. Apparent activation energy values of about. 100 kJ mol-1 corresponding to the nonisothermal decomposition of solid precursors in the temperature range 170-250oC have been found.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




V. Muşat et al., "Thermoreactivity of Sol-Gel Precursor for ZnO-Based Thin Films", Materials Science Forum, Vols. 514-516, pp. 73-77, 2006

Online since:

May 2006




[1] S. Bandyopadhyay, G.K. Paul and S.K. Sen, Solar Energy Materials & Solar Cells, Vol. 71 (2002), p.103.

[2] Y. Ohya, H. Saiki, T. Tanaka and Y. Takahashi, J. Am. Ceram. Soc., Vol. 79(4) (1996), p.824.

[3] M. Ohyama, H. Kozuka and T. Yoko, Thin Solid Films, Vol. 306 (1997), p.78.

[4] S. Fujihara, C. Sasaki and T. Kimura, Applied Surface Sci., Vol. 180 (2001), p.341.

[5] K. Nishio, S. Miyake, T. Sei, Y. Watanabe and T. Tsuchiya, J. Mat. Sci., Vol. 31 (1996), p.3651.

[6] M. Ohyama, J. Am. Ceram., Vol. 81 (1998), p.162.

[7] W. Tang and D. C. Cameron, Thin Solid Films, 238 (1994), p.83.

[8] E. Fortunato, P. Nunes, A. Marques, D. Costa, H. Aguas, I. Ferreira, M.E.V. da Costa, M.H. Godinho, P.L. Almeida, J. P. Borges and R. Martins, Surace and Coatings Technologies, Vol. 151-152 (2002), p.247.


[9] D. Bao, H. Gu and A. Kuang, Thin Solid Films, Vol. 312 (1998), p.37.

[10] K. Y. Cheong, N. Muti and S. R. Ramanan, Thin Solid Films, Vol. 410 (2002), p.142.

[11] E. M. Bachari, G. Baud, S. Ben Amor and M. Jacquet, Thin Solid Films, Vol. 348 (1999), p.165.


[12] V. Musat, R. Monteiro, R. Martins, Rev. Roum. de Chim., Vol 48 (12) (2003), p.967.

[13] O. Carp, L. Patron, I. Mandroiu, G. Marinescu and E. Segal, J. Thermal Anal. Cal. (in press).
