Open Cell Polyurethane Foams for New Filters with Supported Adsorbents

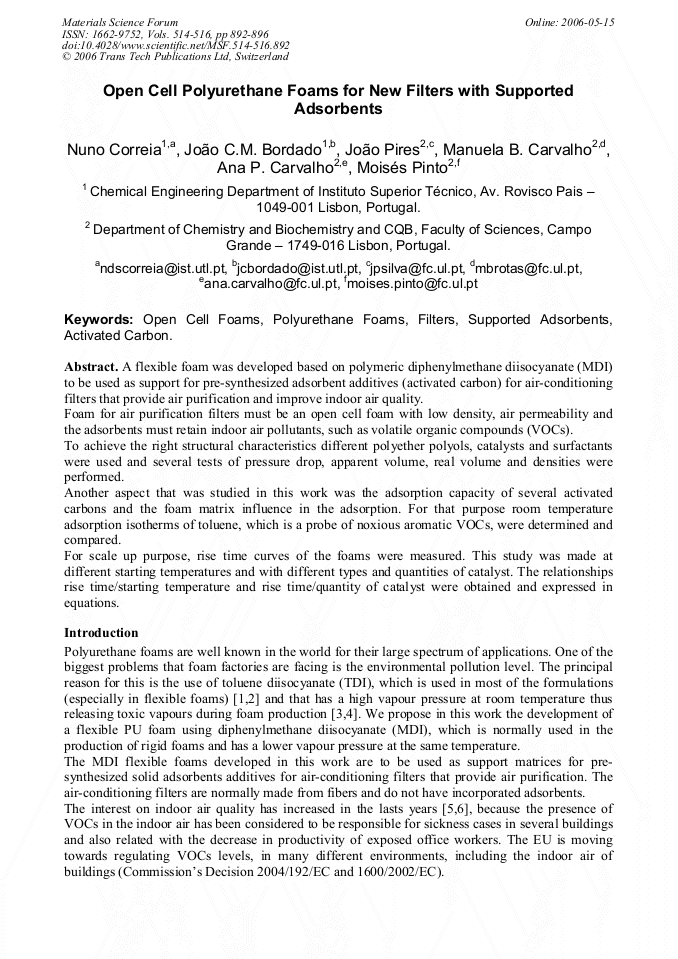

Article Preview

A flexible foam was developed based on polymeric diphenylmethane diisocyanate (MDI) to be used as support for pre-synthesized adsorbent additives (activated carbon) for air-conditioning filters that provide air purification and improve indoor air quality. Foam for air purification filters must be an open cell foam with low density, air permeability and the adsorbents must retain indoor air pollutants, such as volatile organic compounds (VOCs). To achieve the right structural characteristics different polyether polyols, catalysts and surfactants were used and several tests of pressure drop, apparent volume, real volume and densities were performed. Another aspect that was studied in this work was the adsorption capacity of several activated carbons and the foam matrix influence in the adsorption. For that purpose room temperature adsorption isotherms of toluene, which is a probe of noxious aromatic VOCs, were determined and compared. For scale up purpose, rise time curves of the foams were measured. This study was made at different starting temperatures and with different types and quantities of catalyst. The relationships rise time/starting temperature and rise time/quantity of catalyst were obtained and expressed in equations.



Materials Science Forum (Volumes 514-516)

Edited by:

Paula Maria Vilarinho




N. Correia et al., "Open Cell Polyurethane Foams for New Filters with Supported Adsorbents ", Materials Science Forum, Vols. 514-516, pp. 892-896, 2006

Online since:

May 2006




[1] Vilar, W., 2002, Química e Tecnologia dos Poliuretanos, 3rd Edition, Vilar Consultadoria, Rio de Janeiro.

[2] Klempner, D. and Sendijarevic, V, 2004, Handbook of Polymeric Foams and Foam Technology, 2nd Edition, Hanser Publishers, Munich.

[3] Alexandersson, R. et al, 1985, Symptoms and lung function in low-exposure to TDI by polyurethane foam manufacturing, Int. Arch. Occup. Environ. Health, 55, 149-157.


[4] Mobay Corporation, 1991, Longitudinal study of respiratory Hazards in the polyurethane foaming industry, Submission to U.S. EPA, OTS accession No. 86910001010.

[5] Myers, I and Maynard, R. L., 2005, Polluted air-outdoors and indoors, Occup. Med., 55, 432-438.


[6] Fisk, W. J., 2000, Health and Productivity Gains from Better Indoor Environments and Their Implications for the U.S. Department of Energy, Presented at the E-Vision 2000 Conference, October 11-13, Washington DC.

[7] Rivin, D. and Kendrick, C. E., 1997, Adsorption Properties of Vapor-Protective Fabrics Containing Activated Carbon, Carbon, 35, 1295.


[8] Cagliostro, D. E. et al, 1985, Gas Adsorption on Carbon-Containing Fabrics, J. M. Ind. Eng. Chem. Process Des. Dev., 24, 377.


[9] Strommen, M. R., 2004, United States Patent 6, 762, 139 B2.

[10] Pinto, M. L. et al, 2003, Synthesis and Characterization of Polyurethane Foam Matrices for the Support of Granular Adsorbent Materials, J. Appl. Polymer Science, 92, 2045-(2053).

[11] Pinto, M. L. et al, 2004, Characterization of Adsorbent Materials Supported on Polyurethane Foams by Nitrogen and Toluene Adsorption, Microporous M. Materials, 80, 253-262.
