Modification of Epoxy Resin Using Liquid Natural Rubber


Article Preview

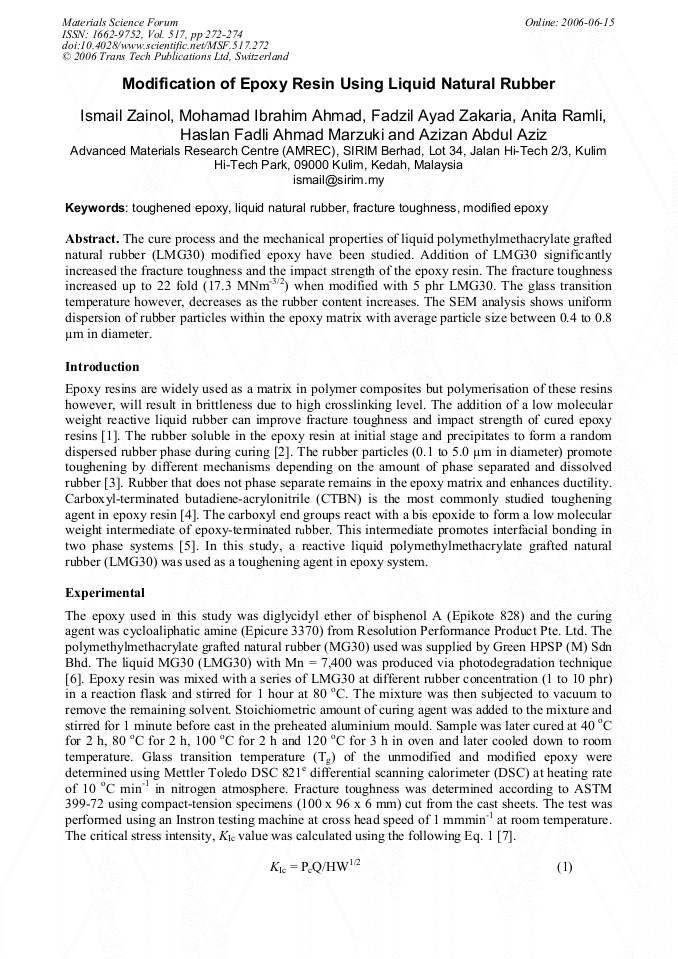

The cure process and the mechanical properties of liquid polymethylmethacrylate grafted natural rubber (LMG30) modified epoxy have been studied. Addition of LMG30 significantly increased the fracture toughness and the impact strength of the epoxy resin. The fracture toughness increased up to 22 fold (17.3 MNm-3/2) when modified with 5 phr LMG30. The glass transition temperature however, decreases as the rubber content increases. The SEM analysis shows uniform dispersion of rubber particles within the epoxy matrix with average particle size between 0.4 to 0.8 0m in diameter.



Edited by:

A.K. Arof and S.A. Hashim Ali




I. Zainol et al., "Modification of Epoxy Resin Using Liquid Natural Rubber", Materials Science Forum, Vol. 517, pp. 272-274, 2006

Online since:

June 2006




[1] J. N. Sultan and F. J. McGarry: Polym. Eng. Sci., 13(1), (1973). p.29.

[2] C.B. Bucknall and T. Yoshii: Br. Polym. J. 10 (1978), p.53.

[3] Z. N. Sanjana and L. Kupchella: Polym. Eng. Sci., 25, 18, (1985).

[4] R. A Pearson and A. F. Yee: J. Mat. Sci., 21 (1986), p.2475.

[5] L. T. Manzione, J. K. Gillham and C. A. McPherson, J. App. Polym. Sci. Vol. 26, (1981), p.907 A. Ibrahim , Malaysian Patent 108852.

[6] L. C. Chan, J. K. Gillham, A. J. Kinloch and S. J. Shaw, Advances in Chemistry Series 208, American Chemical Society, Washington DC, (1984), p.263.

[7] I. Zainol, 10 th International Seminar on Elastomer 2005, Organised by Instituto de Quimica/UERJ Rio de Janeiro Brazil, April 2005. Extended Abstracts on CD. Fig. 3. Impact strength of modified epoxy resin at different rubber content 0 20 40 60 80 100 0 3 6 9 12 Rubber Cont. (phr) Impact Strength (J/m) Fig. 4. Scanning electron micrographs of fracture surface of various rubber content (a) 0 phr rubber, (b) 1 phr rubber, (c ) 3 phr rubber, (d) 5 phr rubber (e) 7 phr rubber (f) 10 phr rubber.
