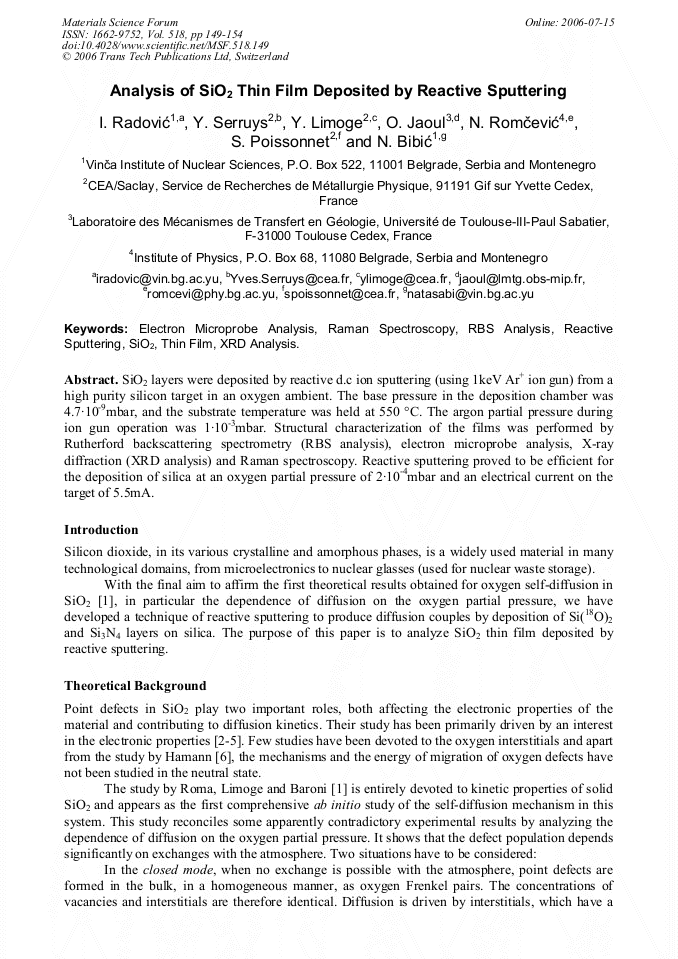

Analysis of SiO2 Thin Film Deposited by Reactive Sputtering


Article Preview

SiO2 layers were deposited by reactive d.c ion sputtering (using 1keV Ar+ ion gun) from a high purity silicon target in an oxygen ambient. The base pressure in the deposition chamber was 4.7·10-9mbar, and the substrate temperature was held at 550 °C. The argon partial pressure during ion gun operation was 1·10-3mbar. Structural characterization of the films was performed by Rutherford backscattering spectrometry (RBS analysis), electron microprobe analysis, X-ray diffraction (XRD analysis) and Raman spectroscopy. Reactive sputtering proved to be efficient for the deposition of silica at an oxygen partial pressure of 2·10-4mbar and an electrical current on the target of 5.5mA.



Edited by:

Dragan P. Uskokovic, Slobodan K. Milonjic and Dejan I. Rakovic




I. Radović et al., "Analysis of SiO2 Thin Film Deposited by Reactive Sputtering", Materials Science Forum, Vol. 518, pp. 149-154, 2006

Online since:

July 2006




[1] G. Roma, Y. Limoge and S. Baroni: Phys. Rev. Lett. Vol. 86 (2001), p.4564.

[2] C.M. Carbonaro, V. Fiorentini and S. Massidda: J. Non-Cryst. Solids Vol. 221 (1997), p.89.

[3] G. Pacchioni and G. Ierano: Phys. Rev. B Vol. 56 (1997), p.7304.

[4] K.C. Snyder and W.B. Fowler: Phys. Rev. B Vol. 48 (1993), p.13238 and references therein.

[5] D.C. Allan and M.P. Teter: J. Am. Ceram. Soc. Vol. 73 (1990), p.3247.

[6] D.R. Hamann: Phys. Rev. Lett. Vol. 81 (1998), p.3447.

[7] Y. Serruys, J. Tirira and P. Calmon: Nucl. Instr. Meth. B Vol. 74 (1993), p.565.

[8] Y. Serruys: Note technique SRMP 2003-03 (CEA Saclay, France 2003).

[9] I. Radović, Y. Serruys, Y. Limoge, O. Jaoul and N. Bibić: Proc. 22 nd SPIG, Tara, Serbia and Montenegro (2004), p.215.

[10] I. Radović, Y. Serruys, Y. Limoge, O. Jaoul and N. Bibić: VI National Conference Physics and Technology of Materials, Čačak, Serbia and Montenegro, 1-3 August 2005 (Science of Sintering, in press).

[11] B.H. Henry: Raman Spectroscopy: Sixty Years On, J.R. During (Ed. ) (Elsevier, Amsterdam 1990), Vol. 10.

[12] M.S. Dresselhaus, M.A. Pimenta, P.C. Eklund and G. Dresselhaus: Raman Scattering in Materials Science, W.H. Weber, R. Merlin (Eds. ) (Springer-Verlag, Berlin, Heidelberg, New York 2000), p.314.


[13] N. Chiodini, F. Meinardi, F. Morazzoni, A. Paleari, R. Scotti and G. Spinolo: Sol. State Commun. Vol. 109 (1999), p.145.
