Repairing of Damaged Pressure Pipes with a Composite Sleeve

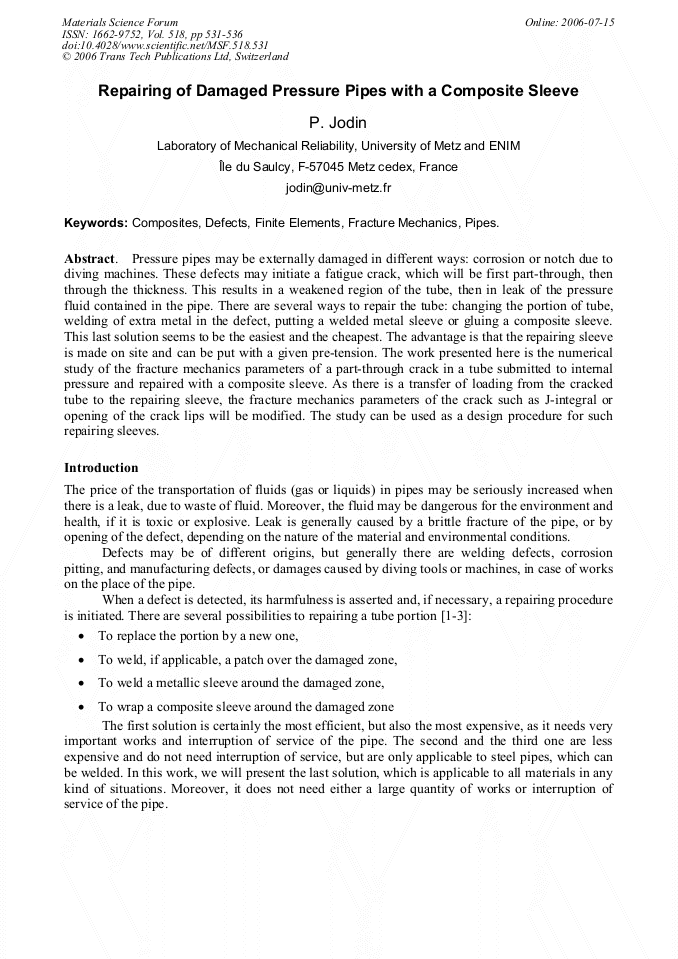

Article Preview

Pressure pipes may be externally damaged in different ways: corrosion or notch due to diving machines. These defects may initiate a fatigue crack, which will be first part-through, then through the thickness. This results in a weakened region of the tube, then in leak of the pressure fluid contained in the pipe. There are several ways to repair the tube: changing the portion of tube, welding of extra metal in the defect, putting a welded metal sleeve or gluing a composite sleeve. This last solution seems to be the easiest and the cheapest. The advantage is that the repairing sleeve is made on site and can be put with a given pre-tension. The work presented here is the numerical study of the fracture mechanics parameters of a part-through crack in a tube submitted to internal pressure and repaired with a composite sleeve. As there is a transfer of loading from the cracked tube to the repairing sleeve, the fracture mechanics parameters of the crack such as J-integral or opening of the crack lips will be modified. The study can be used as a design procedure for such repairing sleeves.



Edited by:

Dragan P. Uskokovic, Slobodan K. Milonjic and Dejan I. Rakovic




P. Jodin, "Repairing of Damaged Pressure Pipes with a Composite Sleeve", Materials Science Forum, Vol. 518, pp. 531-536, 2006

Online since:

July 2006





[1] R. Frassine: Advances in Polymer Technology Vol. 16.

[1] (1997), p.33.

[2] C.R. Alexander and F. D. Wilson: Proceedings of the ASCE National Conference on Environmental and Pipeline Engineering 2000, p.343, Kansas City (Mis. ), July 23-26 (2000).

[3] R. Palmer-Jones and D. Paisley: Proceedings of the 4 th International Pipeline Rehabilitation and Maintenance Conference, Prague, September 2000, p.1.

[4] Ph. Jodin: Proceedings of the NT2F5 Congress, Bari (Italy), 9-10 May 2005 (to be published).
