A Suitable Criterion for Precise Determination of Incipient Necking in Sheet Materials

Abstract:

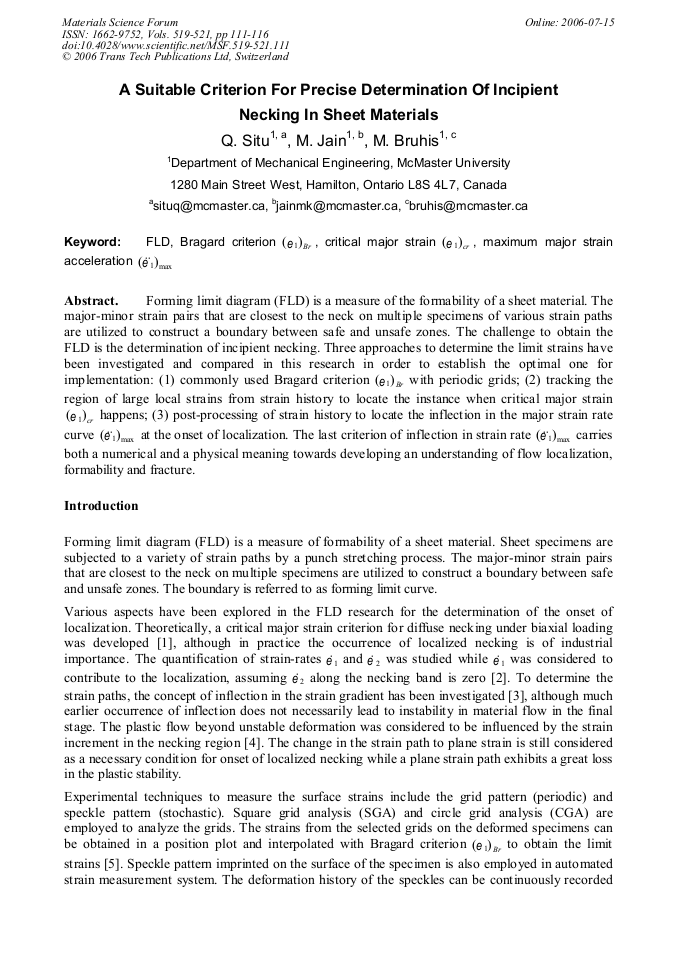

Article Preview

Forming limit diagram (FLD) is a measure of the formability of a sheet material. The major-minor strain pairs that are closest to the neck on multiple specimens of various strain paths are utilized to construct a boundary between safe and unsafe zones. The challenge to obtain the FLD is the determination of incipient necking. Three approaches to determine the limit strains have been investigated and compared in this research in order to establish the optimal one for implementation: (1) commonly used Bragard criterion ( 1)e Br with periodic grids; (2) tracking the region of large local strains from strain history to locate the instance when critical major strain ( 1)e cr happens; (3) post-processing of strain history to locate the inflection in the major strain rate curve 1 max (e&&) at the onset of localization. The last criterion of inflection in strain rate 1 max (e&&) carries both a numerical and a physical meaning towards developing an understanding of flow localization, formability and fracture.

Info:

Periodical:

Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd

Pages:

111-116

DOI:

10.4028/www.scientific.net/MSF.519-521.111

Citation:

Q. Situ et al., "A Suitable Criterion for Precise Determination of Incipient Necking in Sheet Materials", Materials Science Forum, Vols. 519-521, pp. 111-116, 2006

Online since:

July 2006

Export:

Price:

$35.00

[1] Swift, H. W., Plastic Instability Under Plane Stress, Journal of the Mechanics and Physics of Solids, vol. 1 (1952), pp.1-18.

[2] Lian, J., Zhou, D., Diffuse Necking And Localized Necking Under Plane Stress, Material Science Engineering, A111 (1989), pp.1-7.

DOI: 10.1016/0921-5093(89)90191-3

[3] Kocks, U.F., Jonas, J.J., Mecking, H., The Development Of Strain-Rate Gradients, Symposium of Formability, Analysis and Experimentation, Chicago, AIME, (1977).

[4] Barata Da Rocha, A., Jalinier, J.M., Plastic Instability Of Sheet Metals Under Simple And Complex Strain Paths, Transaction of Iron and Steel Institute, Japan, vol. 24, no. 2 (1984), pp.132-140.

DOI: 10.2355/isijinternational1966.24.132

[5] Bragard, A., Baret, J.C., Bonnarens, H., A Simplified Method To Determine The FLD Onset Of Localized Necking, Liège, Rapport Centre de Recherche de la mètallurgie, vol. 35 (1972), 33.

[6] GOM, http: /www. gom. com.
