Influence of Surface Defect Geometry on the Localization and Failure of AA6111 Sheet: Necking versus Shear

Abstract:

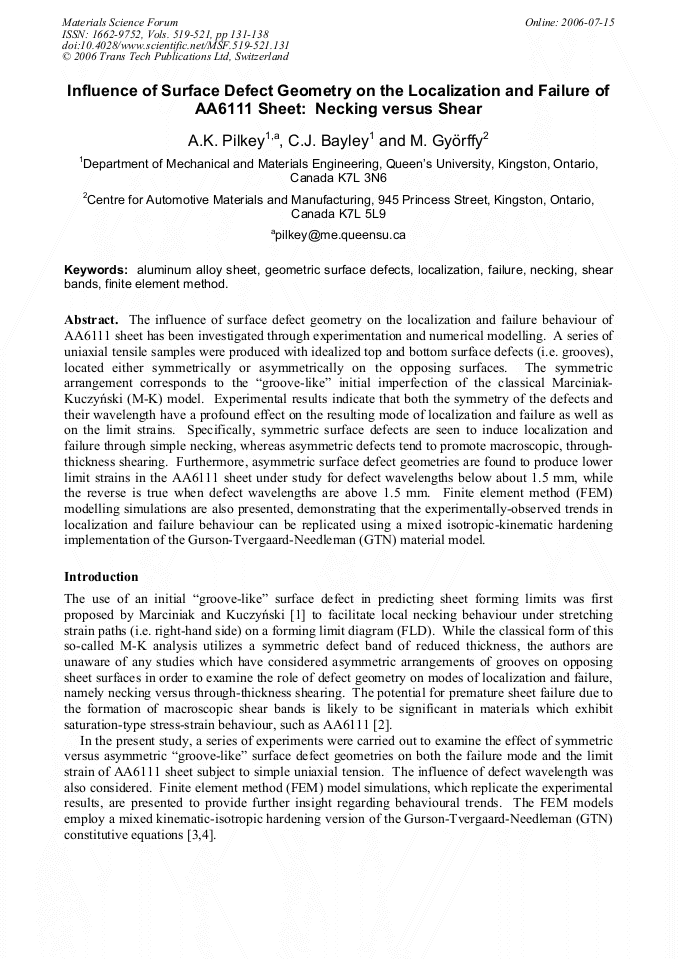

Article Preview

The influence of surface defect geometry on the localization and failure behaviour of AA6111 sheet has been investigated through experimentation and numerical modelling. A series of uniaxial tensile samples were produced with idealized top and bottom surface defects (i.e. grooves), located either symmetrically or asymmetrically on the opposing surfaces. The symmetric arrangement corresponds to the “groove-like” initial imperfection of the classical Marciniak- Kuczyński (M-K) model. Experimental results indicate that both the symmetry of the defects and their wavelength have a profound effect on the resulting mode of localization and failure as well as on the limit strains. Specifically, symmetric surface defects are seen to induce localization and failure through simple necking, whereas asymmetric defects tend to promote macroscopic, throughthickness shearing. Furthermore, asymmetric surface defect geometries are found to produce lower limit strains in the AA6111 sheet under study for defect wavelengths below about 1.5 mm, while the reverse is true when defect wavelengths are above 1.5 mm. Finite element method (FEM) modelling simulations are also presented, demonstrating that the experimentally-observed trends in localization and failure behaviour can be replicated using a mixed isotropic-kinematic hardening implementation of the Gurson-Tvergaard-Needleman (GTN) material model.

Info:

Periodical:

Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd

Pages:

131-138

DOI:

10.4028/www.scientific.net/MSF.519-521.131

Citation:

A.K. Pilkey et al., "Influence of Surface Defect Geometry on the Localization and Failure of AA6111 Sheet: Necking versus Shear", Materials Science Forum, Vols. 519-521, pp. 131-138, 2006

Online since:

July 2006

Export:

Price:

$35.00

[1] Z. Marciniak and K. Kuczyński: Int. J. Mech. Sci. Vol. 9 (1967), p.609.

[2] D.J. Lloyd D.J. and D. Kenny: Met. Trans. A Vol. 13 (1982), p.1445.

[3] V. Tvergaard: J. Mech. Phys. Solids Vol. 35 (1987), p.43.

[4] W.B. Lievers, A. K. Pilkey and M. J. Worswick: Mech. Mat. Vol. 35 (2003), p.661.

[5] E. Voce: J. Inst. Met. Vol. 74 (1948), p.537.

[6] ISO 12085: Geometrical Products Specifications (GPS) Surface Texture: Profile Method Motif Parameters (International Standards Organization, Switzerland 1996).

[7] W.B. Lievers, A.K. Pilkey and D.J. Lloyd: Mat. Sci. Eng. A Vol. A361 (2003), p.312.

[8] W.B. Lievers, A.K. Pilkey and D.J. Lloyd: Acta Mat. Vol. 52 (2004), p.3001.

[9] G.J. Baczynski, R. Guzzo, M.D. Ball and D.J. Lloyd: Acta Mat. Vol. 48 (2000), p.3361.

[10] P.D. Wu, D.J. Lloyd, A. Bosland, H. Jin and S.R. MacEwen: Acta Mat. Vol. 51 (2003), p. (1945).
