Solidification Behaviour of 357 Al-Alloy under Intensive Forced Convection


Article Preview

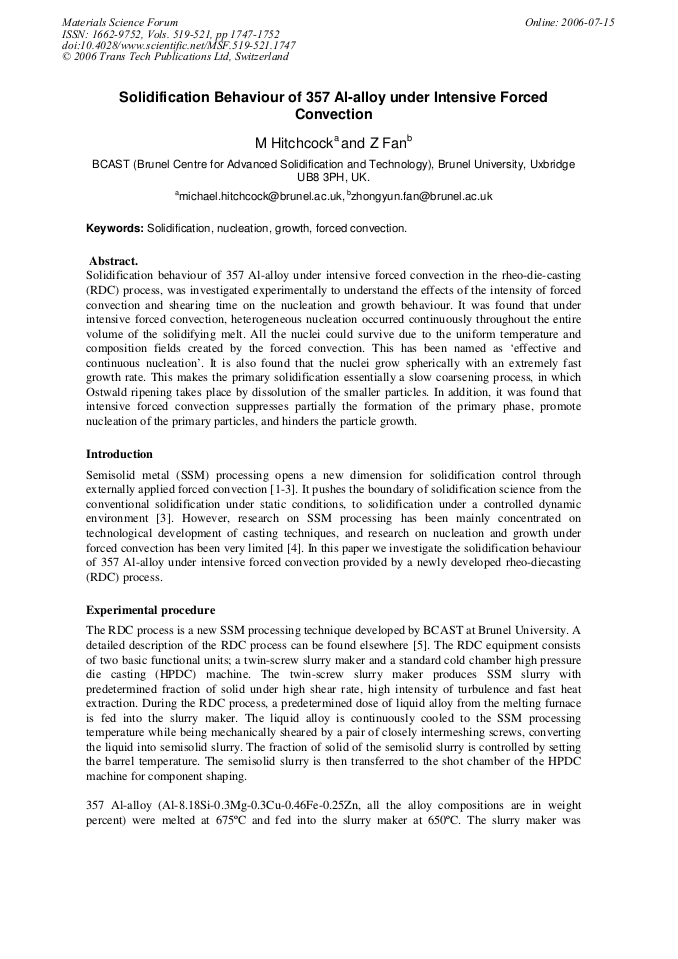

Solidification behaviour of 357 Al-alloy under intensive forced convection in the rheo-die-casting (RDC) process, was investigated experimentally to understand the effects of the intensity of forced convection and shearing time on the nucleation and growth behaviour. It was found that under intensive forced convection, heterogeneous nucleation occurred continuously throughout the entire volume of the solidifying melt. All the nuclei could survive due to the uniform temperature and composition fields created by the forced convection. This has been named as ‘effective and continuous nucleation’. It is also found that the nuclei grow spherically with an extremely fast growth rate. This makes the primary solidification essentially a slow coarsening process, in which Ostwald ripening takes place by dissolution of the smaller particles. In addition, it was found that intensive forced convection suppresses partially the formation of the primary phase, promote nucleation of the primary particles, and hinders the particle growth.



Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd




M. Hitchcock and Z. Y. Fan, "Solidification Behaviour of 357 Al-Alloy under Intensive Forced Convection", Materials Science Forum, Vols. 519-521, pp. 1747-1752, 2006

Online since:

July 2006




[1] M.C. Flemings, Metall. Trans. 22A (1991), 957.

[2] D.H. Kirkwood, Inter. Mater. Rev. 39 (1994), 173.

[3] Z. Fan, Inter. Mater. Rev. 47 (2002), 49.

[4] W.J. Boettinger, S.R. Coriell, A.L. Greer, A. Karma, W. Kurz, M. Rappaz, R. Trivedi, Acta Mater. 48 (2000), 43.


[5] Z. Fan, X. Fang and S. Ji, Mater. Sci. Eng., A412 (2005), 298.

[6] M. Volmer, A. Z. Webber, Phys. Chem. 119 (1925), 277.

[7] D. Turnbul, in Progr. Met. Phys. 4 (1953), 333.

[8] B. Chalmers, Principles of Solidification, New York, John Wiley &Sons, Inc. (1995).

[9] R.S. Qin, Z. Fan, Conf. Proc. on Semisolid Processing of Alloys and Composites, Turin, 2000, p.819.

[10] A. Das, S. Ji, Z. Fan, Acta Mater. 50 (2002), 4571.

[11] R.S. Qin, E.R. Wallach, Mater. Sci. Engng. 357A (2003), 45.

[12] I.M. Lifshitz, V.V. Slyozov. J. Phys. Chem. Solids, 11 (1961), 35.

[13] C. Z. Wagner, Electrochem. 65 (1968), 581.

[14] S. Ji, Z. Fan, M.J. Bevis, Mater. Sci. Eng. 299A (2001), 210.
