Improvement of Bake-Hardening Response of Al-Mg-Cu Alloys by Means of Nanocluster Assist Processing (NCAP) Technique


Article Preview

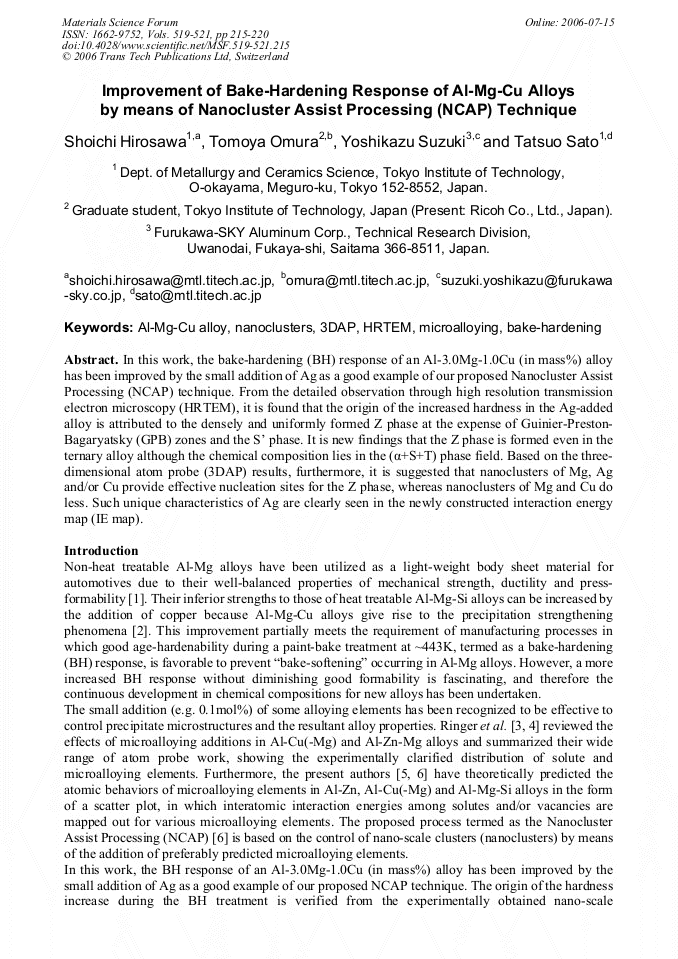

In this work, the bake-hardening (BH) response of an Al-3.0Mg-1.0Cu (in mass%) alloy has been improved by the small addition of Ag as a good example of our proposed Nanocluster Assist Processing (NCAP) technique. From the detailed observation through high resolution transmission electron microscopy (HRTEM), it is found that the origin of the increased hardness in the Ag-added alloy is attributed to the densely and uniformly formed Z phase at the expense of Guinier-Preston- Bagaryatsky (GPB) zones and the S’ phase. It is new findings that the Z phase is formed even in the ternary alloy although the chemical composition lies in the (α+S+T) phase field. Based on the threedimensional atom probe (3DAP) results, furthermore, it is suggested that nanoclusters of Mg, Ag and/or Cu provide effective nucleation sites for the Z phase, whereas nanoclusters of Mg and Cu do less. Such unique characteristics of Ag are clearly seen in the newly constructed interaction energy map (IE map).



Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd




S. Hirosawa et al., "Improvement of Bake-Hardening Response of Al-Mg-Cu Alloys by Means of Nanocluster Assist Processing (NCAP) Technique", Materials Science Forum, Vols. 519-521, pp. 215-220, 2006

Online since:

July 2006




[1] For example, J. Hirsch: Proc. 9th Int. Conf. on Aluminum Alloys (2004), p.15.

[2] Y. Suzuki, M. Matsuo, M. Saga and M. Kikuchi: Materials Science Forum Vol. 217-222 (1996), p.1789.

[3] S.P. Ringer and K. Raviprasad: Materials Forum Vol. 24 (2000), p.59.

[4] I.J. Polmear and S.P. Ringer: J. Japan Inst. Light Metals Vol. 50 (2000), p.633.

[5] S. Hirosawa, T. Sato, A. Kamio and H.M. Flower: Acta mater. Vol. 48 (2000), p.1797.

[6] T. Sato, S. Hirosawa, K. Hirose and T. Maeguchi: Metall. Mater. Trans. Vol. 34A (2003), p.2745.

[7] T. Hoshino and F. Nakamura: J. Metastable and Nanocrystalline Materials Vols. 24-25 (2005), p.237.

[8] F. Nakamura, T. Hoshino, S. Tanaka, K. Hirose, S. Hirosawa and T. Sato: Trans. Materials Research Society of Japan (2006), in print.

[9] J.T. Vietz and I.J. Polmear: J. Inst. Metals Vol. 94 (1966), p.410.

[10] S.P. Ringer, T. Sakurai and I.J. Polmear: Acta mater. Vol. 45 (1997), p.3731.

[11] L. Reich, S.P. Ringer and K. Hono: Phil. Mag. Lett. Vol. 79 (1999), p.639.

[12] H.D. Chopra, B.C. Muddle and I.J. Polmear: Phil. Mag. Lett. Vol. 73 (1996), p.351.

[13] J.H. Auld and B.E. Williams: Acta Cryst. Vol. 21 (1966), p.830.

[14] A.M. Zahra, C.Y. Zahra, C. Alfonso and A. Charai: Scripta Materiala Vol. 39 (1998), p.1553.

[15] S.P. Ringer, S.K. Caraher and I.J. Polmear: Scripta Materiala Vol. 39 (1998), p.1559.

[16] P. Ratchev, B. Verlinden, P. De Smet, P. Van Houtte, Acta mater. Vol. 46 (1998), p.3523.

[17] L. Kovarik, P.I. Gouma, C. Kisielowski, S.A. Court and M.J. Mills: Mater. Sci. Forum Vols. 396- 402 (2002), p.1043.

[18] S.P. Ringer, G.C. Quan and T. Sakurai: Mater. Sci. Eng. A Vol. 250 (1998), p.120.
