Through Process Modelling of Microchemistry in AA3103

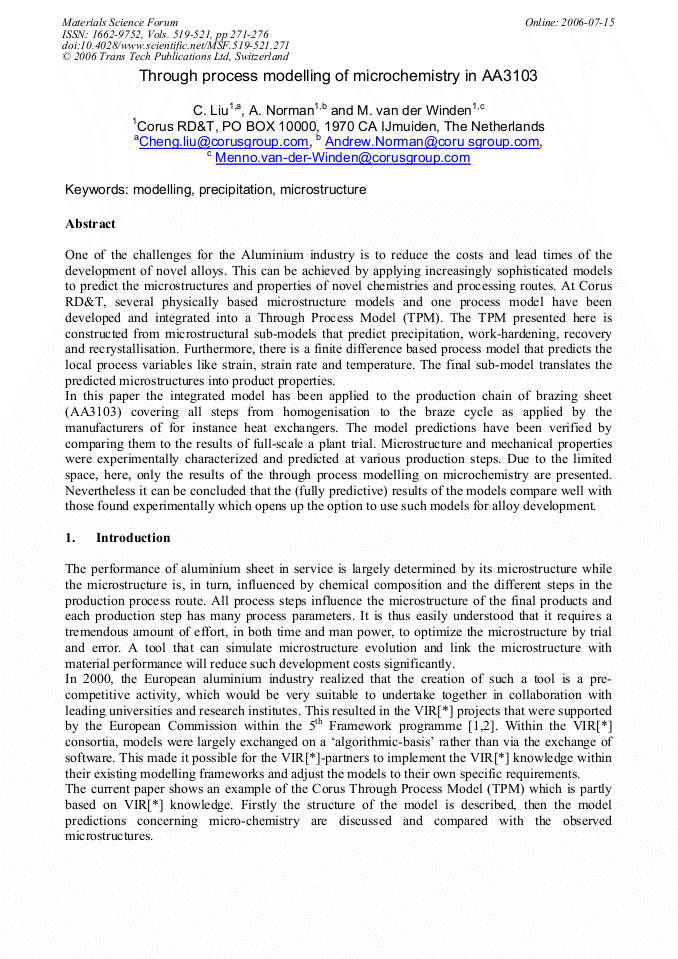

Article Preview

One of the challenges for the Aluminium industry is to reduce the costs and lead times of the development of novel alloys. This can be achieved by applying increasingly sophisticated models to predict the microstructures and properties of novel chemistries and processing routes. At Corus RD&T, several physically based microstructure models and one process model have been developed and integrated into a Through Process Model (TPM). The TPM presented here is constructed from microstructural sub-models that predict precipitation, work-hardening, recovery and recrystallisation. Furthermore, there is a finite difference based process model that predicts the local process variables like strain, strain rate and temperature. The final sub-model translates the predicted microstructures into product properties. In this paper the integrated model has been applied to the production chain of brazing sheet (AA3103) covering all steps from homogenisation to the braze cycle as applied by the manufacturers of for instance heat exchangers. The model predictions have been verified by comparing them to the results of full-scale a plant trial. Microstructure and mechanical properties were experimentally characterized and predicted at various production steps. Due to the limited space, here, only the results of the through process modelling on microchemistry are presented. Nevertheless it can be concluded that the (fully predictive) results of the models compare well with those found experimentally which opens up the option to use such models for alloy development.



Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd




C. Liu et al., "Through Process Modelling of Microchemistry in AA3103", Materials Science Forum, Vols. 519-521, pp. 271-276, 2006

Online since:

July 2006




[1] Van der Winden, Grün, Furu, Asboll, Aluminium, 2004, vol. 80, p.566.

[2] Miroux et al. Aluminium, 2004, vol. 80, p.654.

[3] C. Liu, Y. Bi and R. Benedictus, Proc. ICAA9, 2004, p.907.

[4] J. D Robson and P.B. Prangnell, Acta Materi., 2001, vol. 49, p.49.

[5] Y. Bergstrom, Rev. Powder Metall. and Phys. Ceramics, 1983, p.79.

[6] E.S. Puchi, J. Beynon and C.M. Sellars, THERMEC 88, 1988, p.572.

[7] H.E. Vatne, K. Marthinsen, R. Orsund and E Nes, Metall. Trans. A, 1996, vol. 27A, p.4463.

[8] E. Hornbogen and E.A. Starke, Acta Metall., 1993, vol. 41, p.1.

[9] Y. Li and L Arnberg, Light Metals, 2003, p.991.

[10] S. Chen, Ph. D Thesis, Delft Univ. of Technology, (2003).

[11] A. Flemming, Former Alcan UK, Private communication, (2002).

[12] E. Anselmino, A. Miroux and S. van der Zwaag, Aluminium, 2004, vol. 80, p.680.
