Modelling the Phase Transformation from Al6(Mn,Fe) to α-Al(Mn,Fe)Si Phase during Homogenization of AA3xxx Alloys

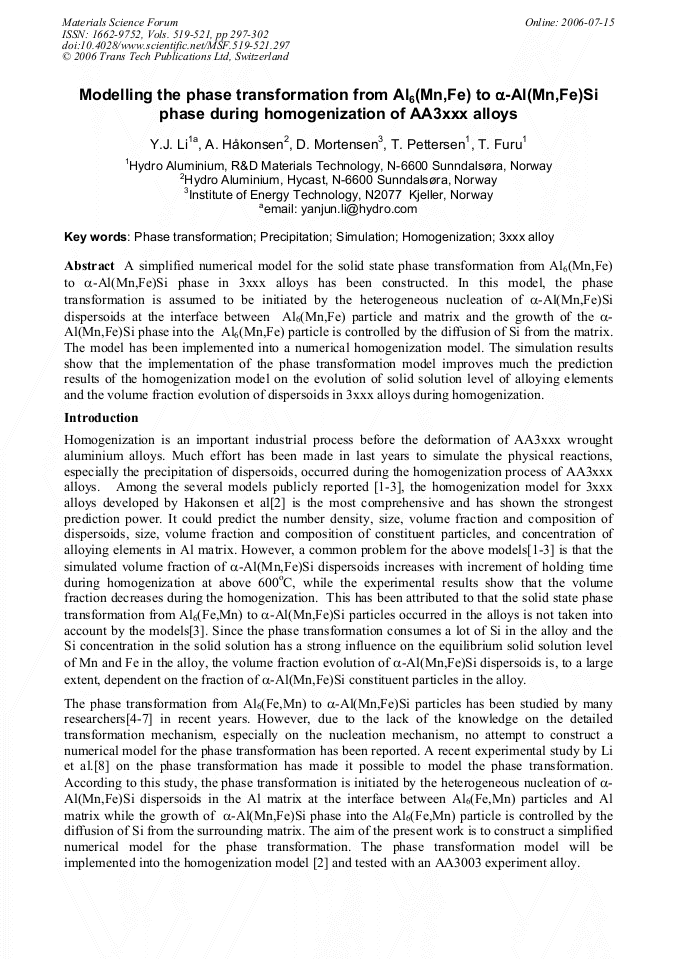

Article Preview

A simplified numerical model for the solid state phase transformation from Al6(Mn,Fe) to α-Al(Mn,Fe)Si phase in 3xxx alloys has been constructed. In this model, the phase transformation is assumed to be initiated by the heterogeneous nucleation of α-Al(Mn,Fe)Si dispersoids at the interface between Al6(Mn,Fe) particle and matrix and the growth of the α- Al(Mn,Fe)Si phase into the Al6(Mn,Fe) particle is controlled by the diffusion of Si from the matrix. The model has been implemented into a numerical homogenization model. The simulation results show that the implementation of the phase transformation model improves much the prediction results of the homogenization model on the evolution of solid solution level of alloying elements and the volume fraction evolution of dispersoids in 3xxx alloys during homogenization.



Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd




Y. J. Li et al., "Modelling the Phase Transformation from Al6(Mn,Fe) to α-Al(Mn,Fe)Si Phase during Homogenization of AA3xxx Alloys", Materials Science Forum, Vols. 519-521, pp. 297-302, 2006

Online since:

July 2006




[1] M. Serrier, Ch. A. Gandin, M. Dehmas, E. Gautier and P. Archambault: Aluminium, 80(2004), pp.592-597.

[2] A. Håkonsen, D. Mortensen, S. Benum, T. Pettersen and T. Furu: Modelling the metalurgical reactions during homogenization of an AA3103 alloy, Light Metals, 2002, edited by W. Schneider (TMS, 2002), pp.793-800.


[3] M. Schneider, G. Gottstein, L. Lochte and J. Hirsch: Mater. Sci. Forum, 396-402(2002), pp.637-642.

[4] Y.J. Li and L. Arnberg: Mater. Sci. Eng. A, 347(2003), pp.130-135.

[5] Y.J. Li, A. Johansen, S. Benum, C. J. Simensen, A.L. Dons and A. Hakonsen: Aluminium, 80(2004), pp.578-583.

[6] D.T.L. Alexander DTL and A.L. Greer: Acta Mater., 50(2002), pp.2571-83.

[7] E. Trømborg, A.L. Dons, L. Arnberg, In: Proceedings of ICAA3, 1992. pp.270-275.

[8] Y.J. Li, A. Olsen and L. Arnberg: TMS Annual Meeting 2005, March, 2005, San Francisco. submitted to Acta. Mater.

[9] M. Cooper and K. Robinson, Acta Crystal., 20(1996), pp.614-619.

[10] Y. J Li and L. Arnberg: Mater Sci Forum, 396-402(2002), pp.875-880.

[11] Y.J. Li and L. Arnberg: Acta Mater., 51(2003), pp.3415-3428.

[12] A.L. Dons: Met. Trans. A, 30A(1999), pp. 2135_2146.

[13] ASM Handbook, Vol. 2. Properties and Selection: Nonferrous alloys and special-purpose materials, ASM international, (1990).
