Quantitative Correlation between Strength, Ductility and Precipitate Microstructures with PFZ in Al-Zn-Mg(-Ag, Cu) Alloys

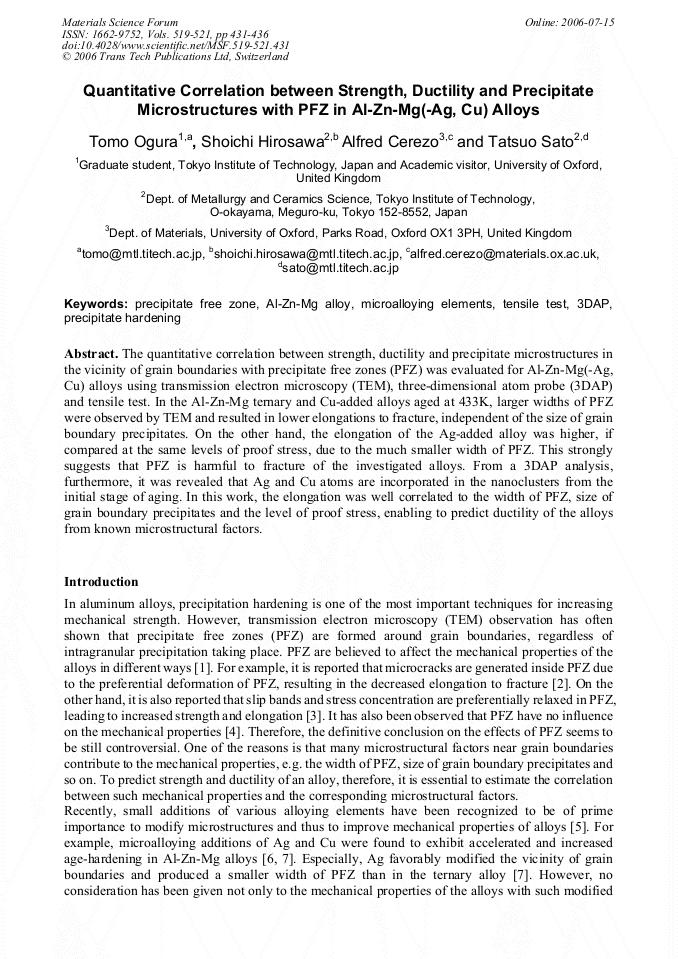

Article Preview

The quantitative correlation between strength, ductility and precipitate microstructures in the vicinity of grain boundaries with precipitate free zones (PFZ) was evaluated for Al-Zn-Mg(-Ag, Cu) alloys using transmission electron microscopy (TEM), three-dimensional atom probe (3DAP) and tensile test. In the Al-Zn-Mg ternary and Cu-added alloys aged at 433K, larger widths of PFZ were observed by TEM and resulted in lower elongations to fracture, independent of the size of grain boundary precipitates. On the other hand, the elongation of the Ag-added alloy was higher, if compared at the same levels of proof stress, due to the much smaller width of PFZ. This strongly suggests that PFZ is harmful to fracture of the investigated alloys. From a 3DAP analysis, furthermore, it was revealed that Ag and Cu atoms are incorporated in the nanoclusters from the initial stage of aging. In this work, the elongation was well correlated to the width of PFZ, size of grain boundary precipitates and the level of proof stress, enabling to predict ductility of the alloys from known microstructural factors.



Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd






T. Ogura et al., "Quantitative Correlation between Strength, Ductility and Precipitate Microstructures with PFZ in Al-Zn-Mg(-Ag, Cu) Alloys", Materials Science Forum, Vols. 519-521, pp. 431-436, 2006

Online since:

July 2006




[1] Y. Baba and H. Yoshida: J. Japan Inst. Metals, Vol. 22 (1983), p.115.

[2] G. Thomas and J. Nutting: J. Inst. Metals, Vol. 88 (1959-60), p.81.

[3] N. Ryum: Acta Met., Vol. 16 (1968), p.327.

[4] H. Muraki, H. Yoshinaga and S. Koda: J. Japan Inst. Light Metals, Vol. 19 (1969), p.344.

[5] T. Sato, S. Hirosawa, K. Hirose and T. Maeguchi: Metall. Mater. Trans, Vol. 34A (2003), p.2745.

[6] Y. Baba: Trans. JIM, Vol. 7 (1966), p.224.

[7] I.J. Polmear: Journal of Institute of Metals, Vol. 89 (1960-61), p.51.

[8] A. Cerezo, T.J. Godfrey, S.J. Sijgrandij, G.D.W. Smith and P.J. Warren: Rev. Sci. Instrum., Vol. 69 (1998), p.49.

[9] T. Ogura, S. Hirosawa and T. Sato: Sci. Tech. Adv. Mater., Vol. 5 (2004), p.491.

[10] M.K. Miller: Atom probe tomography: Analysis at the atomic level (Kluw er Academic/Plenum Publishers, New York 2000), p.158.

[11] N.Q. Chinh, J. Lendvai, D.H. Ping and K. Hono: J. Alloy and Compounds, Vol. 378 (2004), p.52.

[12] S.K. Maloney, K. Hono, I.J. Polmear, S.P. Ringer: Micron, Vol. 32 (2001), p.741.

[13] T. Ogura, S. Hirosawa and T. Sato: Proc. 9th Int. Conf. on Aluminum Alloys, (2004).
