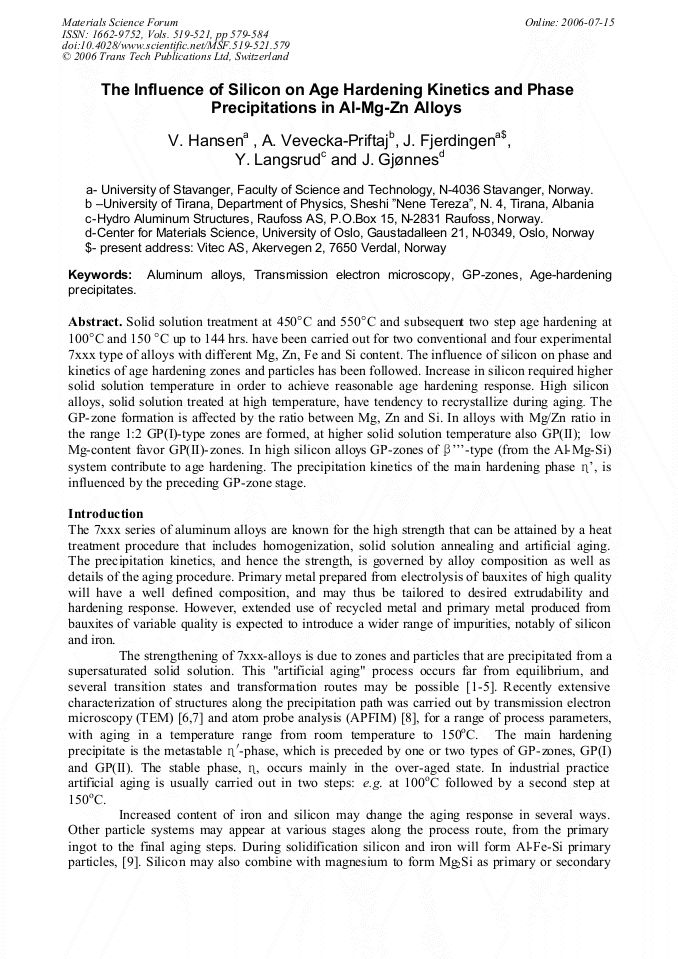

The Influence of Silicon on Age Hardening Kinetics and Phase Precipitation in Al-Mg-Zn Alloys

Abstract:

Article Preview

Solid solution treatment at 450°C and 550°C and subsequent two step age hardening at 100°C and 150 °C up to 144 hrs. have been carried out for two conventional and four experimental 7xxx type of alloys with different Mg, Zn, Fe and Si content. The influence of silicon on phase and kinetics of age hardening zones and particles has been followed. Increase in silicon required higher solid solution temperature in order to achieve reasonable age hardening response. High silicon alloys, solid solution treated at high temperature, have tendency to recrystallize during aging. The GP-zone formation is affected by the ratio between Mg, Zn and Si. In alloys with Mg/Zn ratio in the range 1:2 GP(I)-type zones are formed, at higher solid solution temperature also GP(II); low Mg-content favor GP(II)- zones. In high silicon alloys GP-zones of b’’’-type (from the Al-Mg-Si) system contribute to age hardening. The precipitation kinetics of the main hardening phase h’, is influenced by the preceding GP-zone stage.

Info:

Periodical:

Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd

Pages:

579-584

DOI:

10.4028/www.scientific.net/MSF.519-521.579

Citation:

V. Hansen et al., "The Influence of Silicon on Age Hardening Kinetics and Phase Precipitation in Al-Mg-Zn Alloys", Materials Science Forum, Vols. 519-521, pp. 579-584, 2006

Online since:

July 2006

Export:

Price:

$35.00

[1] J. Lendvai: Materials Science Forum Vol. 43 (1996), p.217.

[2] Z. Katz and N. Ryum: Scripta Met. Vol. 15 (1981), p.265.

[3] S.P. Ringer and K. Hono: Mater character. Vol. 47 (2002), p.101.

[4] R. Ferragut, A. Somoza and A. Dupasquier: J. Phys. Condens Matter Vol. 8 (1996), p.8945.

[5] J. C. Werenskiold, A. Deschamps and Y. Brechet: Mater Sci. Eng. Vol. A293 (2000), p.267.

[6] L.K. Berg, J. Gjønnes, V. Hansen, X.Z. Li, M. Knutson-Wedel, G. Waterloo, D. Schryvers and L.R. Wallenberg: Acta Mater. Vol. 49 (2001), p.3443.

DOI: 10.1016/s1359-6454(01)00251-8

[7] V. Hansen, O.B. Karlsen, Y. Langsrud and J. Gjønnes: Mater. Sci. Tech. Vol. 20 (2004), p.185.

[8] K. Stiller, P.J. Warren, V. Hansen, J. Angenete and J. Gjønnes: Mater. Sci. Eng. Vol. A270 (1999), p.55.

[9] P. Skjerpe: Metal Trans. Vol. 18A (1987), p.189.

[10] CD. Marioara, S.J. Andersen, J. Jansen and H.W. Zandbergen: Acta Mater. Vol. 49 (2001), p.321.

[11] X.J. Jiang, B. Noble, B. Holme, G. Waterloo and J. Tafto: Metall. and Mater. Trans. Vol. A31 (2000), p.339.

[12] J.E. Hatch: Aluminium Properties and Physical Metallurgy: American Society for Metals, Ohio, USA (1984) p.206.

[13] M.J. Starink and X.M. Li: Metall and Mater Trans. Vol. A34 (2003), p.899.

[14] G. Waterloo, V. Hansen, J. Gjønnes and S.R. Skjervold: Mater. Sci. Eng, Vol. A303(2001), p.226.

[15] X.Z. Li, V. Hansen, J. Gjønnes and L.R. Wallenberg: Acta mater. Vol. 47 (1999), p.2651.

[16] Y. Komura and K. Tokunaga: Acta Cryst. Vol. B36 (1980), p.1548.

[17] J. Gjønnes and Chr. J. Simensen: Acta metal. Vol. 18 (1970), p.881.

[18] O.R. Myhr, Ø. Grong and S.J. Andersen: Acta mater. Vol. 49 (2001), p.56.

In order to see related information, you need to Login.
