Large Strain Deformation and Annealing of Aluminium


Article Preview

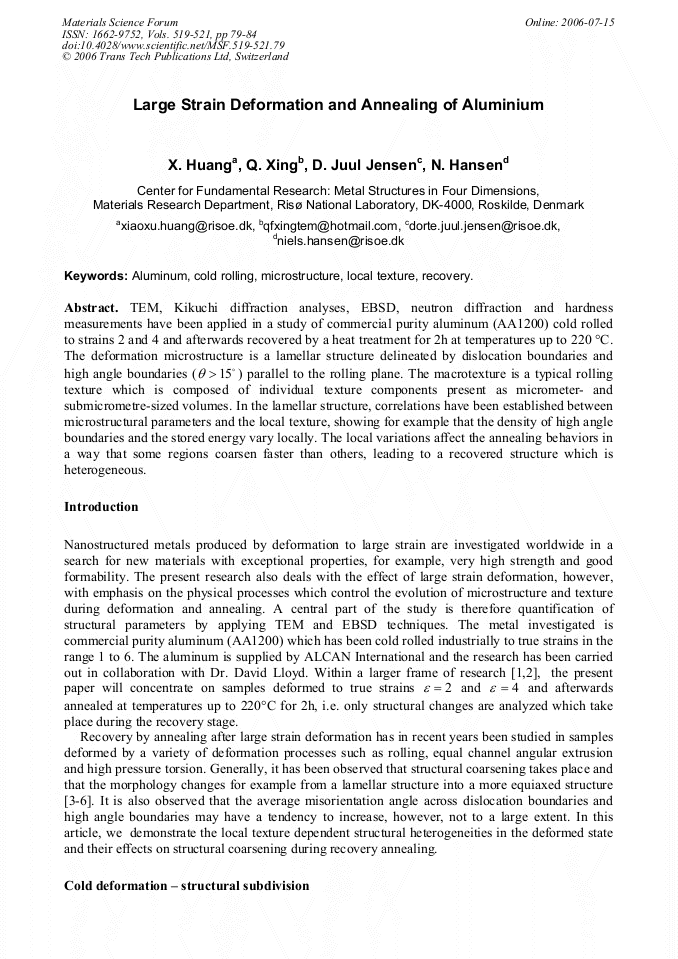

TEM, Kikuchi diffraction analyses, EBSD, neutron diffraction and hardness measurements have been applied in a study of commercial purity aluminum (AA1200) cold rolled to strains 2 and 4 and afterwards recovered by a heat treatment for 2h at temperatures up to 220 °C. The deformation microstructure is a lamellar structure delineated by dislocation boundaries and high angle boundaries ( ) parallel to the rolling plane. The macrotexture is a typical rolling texture which is composed of individual texture components present as micrometer- and submicrometre-sized volumes. In the lamellar structure, correlations have been established between microstructural parameters and the local texture, showing for example that the density of high angle boundaries and the stored energy vary locally. The local variations affect the annealing behaviors in a way that some regions coarsen faster than others, leading to a recovered structure which is heterogeneous.



Materials Science Forum (Volumes 519-521)

Edited by:

W.J. Poole, M.A. Wells and D.J. Lloyd




X. Huang et al., "Large Strain Deformation and Annealing of Aluminium", Materials Science Forum, Vols. 519-521, pp. 79-84, 2006

Online since:

July 2006




[1] Q. Liu, X. Huang, D. J. Lloyd and N. Hansen: Acta Mater. Vol. 50 (2002), p.3789.

[2] Q. Xing, X. Huang and N. Hansen: Metall. Mater. Trans. A, Vol. 37A (2006), in press.

[3] P. B. Prangnell, J. S. Bowen, P. J. Apps and P. S. Bate: Acta Mater, Vol. 52 (2004), p.3193.

[4] H. Jazaeri and F. J. Humphreys: Acta Mater. Vol 52 (2004), p.3239.

[5] H. Jazaeri and F. J. Humphreys: Acta Mater. Vol 52 (2004), p.3239.

[6] T. Furu, R. Ørsund and E. Nes, Acta Metall. Mater. Vol. 43 (1995), p.2209.

[7] N. Hansen, Metall. Mater. Trans. A, Vol. 32A (2001), p.2917.

[8] D. A. Hughes and N. Hansen, Acta Mater. Vol. 45 (1997), p.3871.

[9] D. A. Hughes, in: Proceedings of Rex'99, Eds, T. Sakai, H. G. Suzuki. JIMIS-10, P. 111.
