Effect of Chromium Content on the Oxidation Behaviour of High-Speed Steels under Dry and Moist Air Environments


Article Preview

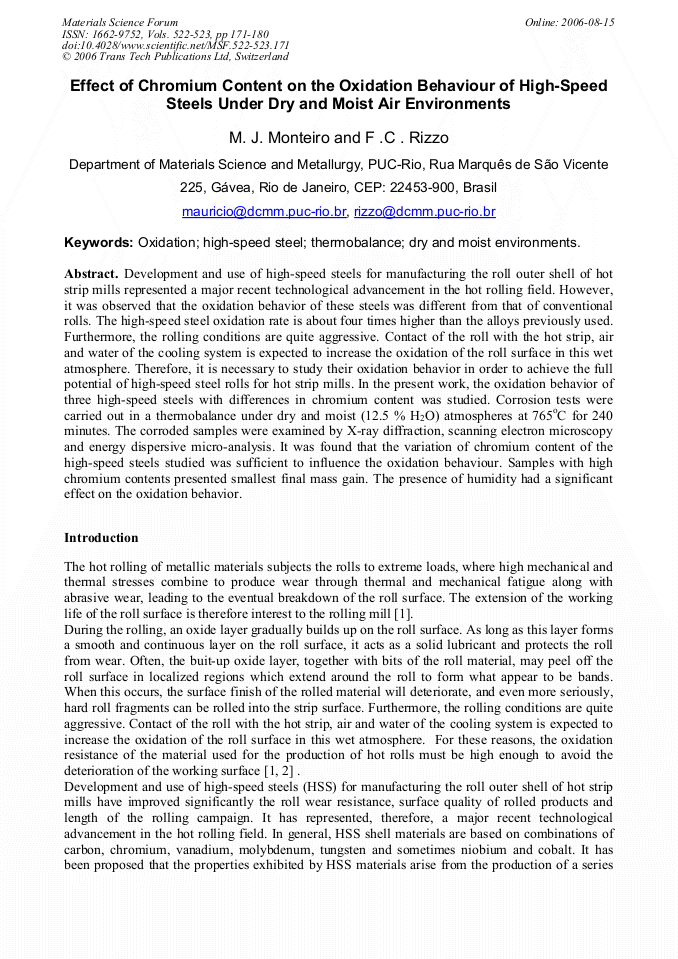

Development and use of high-speed steels for manufacturing the roll outer shell of hot strip mills represented a major recent technological advancement in the hot rolling field. However, it was observed that the oxidation behavior of these steels was different from that of conventional rolls. The high-speed steel oxidation rate is about four times higher than the alloys previously used. Furthermore, the rolling conditions are quite aggressive. Contact of the roll with the hot strip, air and water of the cooling system is expected to increase the oxidation of the roll surface in this wet atmosphere. Therefore, it is necessary to study their oxidation behavior in order to achieve the full potential of high-speed steel rolls for hot strip mills. In the present work, the oxidation behavior of three high-speed steels with differences in chromium content was studied. Corrosion tests were carried out in a thermobalance under dry and moist (12.5 % H2O) atmospheres at 765oC for 240 minutes. The corroded samples were examined by X-ray diffraction, scanning electron microscopy and energy dispersive micro-analysis. It was found that the variation of chromium content of the high-speed steels studied was sufficient to influence the oxidation behaviour. Samples with high chromium contents presented smallest final mass gain. The presence of humidity had a significant effect on the oxidation behavior.



Materials Science Forum (Volumes 522-523)

Edited by:

Shigeji Taniguchi, Toshio Maruyama, Masayuki Yoshiba, Nobuo Otsuka and Yuuzou Kawahara




M. J. Monteiro and F.C. Rizzo, "Effect of Chromium Content on the Oxidation Behaviour of High-Speed Steels under Dry and Moist Air Environments", Materials Science Forum, Vols. 522-523, pp. 171-180, 2006

Online since:

August 2006




[1] L.C. Erickson and S. Hogmark: Wear, Vol. 165 (1993), p.231.

[2] J.J. deBarbadillo: Iron and Steel Engineer, January (1981), p.63.

[3] R. Kurahashi, Y. Nishima, T. Kouga, T. Ogura, Y., Sugimura, Y. Sano and N. Fuchigami: CAMP-ISIJ, Vol. 2 (1989), p.490.

[4] T. Kurita, F. Hoshi and H. Takahashi: CAMP-ISIJ, Vol. 2, (1989) p.49.

[5] Y. Nakamura, R. Kurahashi, Y. Nishiyama, T. Kouga, H. Hashimoto and S. Otomo: CAMPISIJ, Vol. 3 (1990) p.418.

[6] Y. Nishiyama, R. Kurahashi, T. Kouga, S. Kawashima and R. Kurahashi: CAMP-ISIJ, Vol. 4 (1991) p.442.

[7] T. Kudo, H. Ohkura, T. Koizumi, S. Kawashima and R. Kurahashi: CAMP-ISIJ, Vol. 4 (1991), p.442.

[8] T. Kudo, H. Yatsu and S. Izumikawa: AISE annual convention, (1994), p.19.

[9] G.C. Wood, F.H. Stott: Mater. Sci. Technol., Vol. 3 (1987), p.519.

[10] F.H. Stott: Mater. Sci. Technol., Vol. 5 (1989), p.734.

[11] A. Molinari, G. Straffelini, A. Tomasi, A. Biggi and G. Corbo: Mat. Sci. Eng. A, Vol. 280 (2000), p.255.

[12] P. Kofstad: High Temperature Corrosion (Elsevier applied science, England 1988).

[13] A.S. Khanna: High Temperature Oxidation and Corrosion (ASM International, USA 2002).

[14] I. Kvernes, M. Oliveira and P. Kofstad: Corrosion science, Vol. 17 (1997), p.237.

[15] C.T. Fuji and R.A. Meussner: Journal of Electrochemical Society, Vol. 12 (1963), p.1195.

[16] G.C. Wood, I.G. Wright, T. Hodgkiess and D.P. Whittle: Werkst. Korros., Vol. 21 (1970), p.900.

[17] S. Jianian, Z. Longjiang and L. Tiefan: Oxidation of metals, Vol. 48 (1997), p.347.

[18] H. Buscail, S. Heinze, Ph. Dufour and J.P. Larpin: Oxidation of Metals, Vol. 47 (1997), p.445.

Fetching data from Crossref.
This may take some time to load.
