Development of an Oxidation Resistant Coating on Nb-Based Ultra-High Temperature Alloy

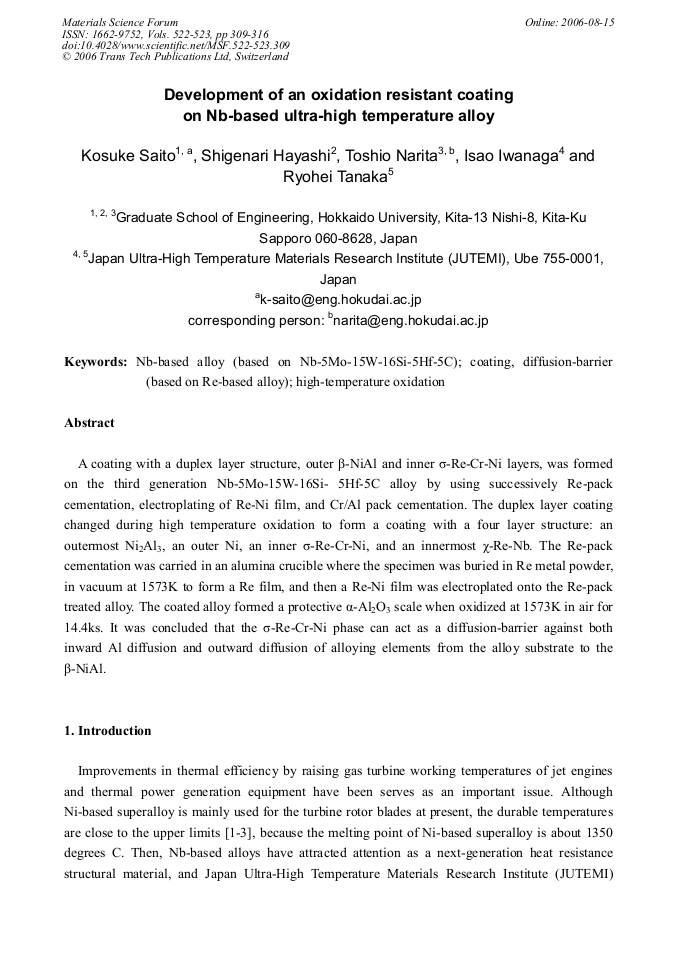

Article Preview

A coating with a duplex layer structure, outer β-NiAl and inner σ-Re-Cr-Ni layers, was formed on the third generation Nb-5Mo-15W-16Si- 5Hf-5C alloy by using successively Re-pack cementation, electroplating of Re-Ni film, and Cr/Al pack cementation. The duplex layer coating changed during high temperature oxidation to form a coating with a four layer structure: an outermost Ni2Al3, an outer Ni, an inner σ-Re-Cr-Ni, and an innermost χ-Re-Nb. The Re-pack cementation was carried in an alumina crucible where the specimen was buried in Re metal powder, in vacuum at 1573K to form a Re film, and then a Re-Ni film was electroplated onto the Re-pack treated alloy. The coated alloy formed a protective α-Al2O3 scale when oxidized at 1573K in air for 14.4ks. It was concluded that the σ-Re-Cr-Ni phase can act as a diffusion-barrier against both inward Al diffusion and outward diffusion of alloying elements from the alloy substrate to the β-NiAl.



Materials Science Forum (Volumes 522-523)

Edited by:

Shigeji Taniguchi, Toshio Maruyama, Masayuki Yoshiba, Nobuo Otsuka and Yuuzou Kawahara




K. Saito et al., "Development of an Oxidation Resistant Coating on Nb-Based Ultra-High Temperature Alloy ", Materials Science Forum, Vols. 522-523, pp. 309-316, 2006

Online since:

August 2006




[1] H. Tanaka, W.Y. Kim, M. Fujikura, R. Tanaka and Y. Mishima: J. Japan Inst. Metals Vol. 67 (2003), p.385.

[2] R. Tanaka, A. Kasama, M. Fujikura, I. Iwanaga, H. Tanaka, Y. Matsumura: J. Gas Turbine Society of Japan vol. 31 (2003), p.81.

[3] T. Fujimura: J. Gas Turbine Society of Japan vol. 32 (2004), p.174.

[4] T. Narita: Journal of High Temperature Society Vol. 28 (2002), p.135.

[5] K. Saito: Japan Institute of Metals spring 136th Meeting, (2005), p.21.

[6] B.A. Pint, K.L. More, I.G. Wright: Oxidation of Metals Vol. 59 (2003), p.257.

[7] C.A. Barrett: Oxidation of Metals Vol. 30 (1988), p.361.
