Hardness of Oxide Scales on Fe-Si Alloys at Room- and High-Temperatures


Article Preview

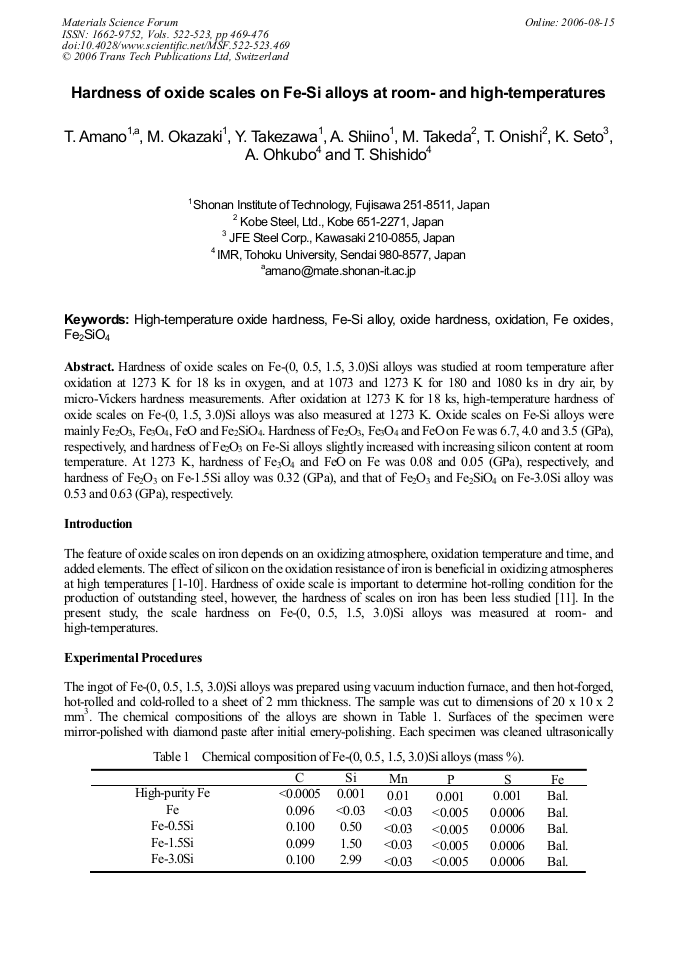

Hardness of oxide scales on Fe-(0, 0.5, 1.5, 3.0)Si alloys was studied at room temperature after oxidation at 1273 K for 18 ks in oxygen, and at 1073 and 1273 K for 180 and 1080 ks in dry air, by micro-Vickers hardness measurements. After oxidation at 1273 K for 18 ks, high-temperature hardness of oxide scales on Fe-(0, 1.5, 3.0)Si alloys was also measured at 1273 K. Oxide scales on Fe-Si alloys were mainly Fe2O3, Fe3O4, FeO and Fe2SiO4. Hardness of Fe2O3, Fe3O4 and FeO on Fe was 6.7, 4.0 and 3.5 (GPa), respectively, and hardness of Fe2O3 on Fe-Si alloys slightly increased with increasing silicon content at room temperature. At 1273 K, hardness of Fe3O4 and FeO on Fe was 0.08 and 0.05 (GPa), respectively, and hardness of Fe2O3 on Fe-1.5Si alloy was 0.32 (GPa), and that of Fe2O3 and Fe2SiO4 on Fe-3.0Si alloy was 0.53 and 0.63 (GPa), respectively.



Materials Science Forum (Volumes 522-523)

Edited by:

Shigeji Taniguchi, Toshio Maruyama, Masayuki Yoshiba, Nobuo Otsuka and Yuuzou Kawahara




T. Amano et al., "Hardness of Oxide Scales on Fe-Si Alloys at Room- and High-Temperatures", Materials Science Forum, Vols. 522-523, pp. 469-476, 2006

Online since:

August 2006




[1] A. Rahmel and J. Tobolski: Werkst. Korros., 16(1965) 662-676.

[2] C. W. Tuck: Corros. Sci., 5 (1965) 631-643.

[3] W. W. Smeltzer, L. A. Morris and R. C. Logani: Can. Metall. Quart., 9(1970) 513.

[4] R. C. Logani and W. W. Smeltzer: Oxid. Met., 3(1971) 15-32.

[5] K. Kusabiraki, H. Sugihara and T. Ooka: Tetsu-to-Hagane, 77(1991) 123-130.

[6] T. Nakamura and M. Sato: Tetsu-to-Hagane, 79(1993) 597-603.

[7] M. Fukumoto, S. Hayashi, S. Maeda and T. Narita: Tetsu-to-Hagade, 85(1999) 878-884.

[8] M. Fukumoto, S. Maeda, S. Hayashi and T. Narita: Proc. High-Temperature Corros. Protection 2000, 2000, 215-220.

[9] K. Yanagihara, S. Suzuki and S. Yamazaki: Oxid. Met., 57(2002) 281-296.

[10] T. Amano, K. Yamada, M. Okazaki, M. Yorikawa and M. Takeda: Proc. 2 nd Int. Conf. On Environmental Degradation of Engineering Materials, (2003).

[11] S. R. J. Saunders and S. Osgerby: MPOS Database, NPL Result (1998).

[12] G. R. Anstis, P. Chantikul, B. R. Lawn and D. B. Marshall: J. Am. Ceram. Soc., 64(1981) 533-538.

[13] M. Schutze, Protective Oxide Scales and Their Breakdown, John Wiley � Sons (1997) 71.

[14] Y. Hidaka, T. Anraku and N. Otsuka: Oxid. Met., 58(2002) 469-485.

[15] T. B. Massalsky, Binary Alloy Phase Diagrams (1990)1771.
