The Influence of Sulfur Additions on the Corrosive Environments in a Waste-Fired CFB Boiler


Article Preview

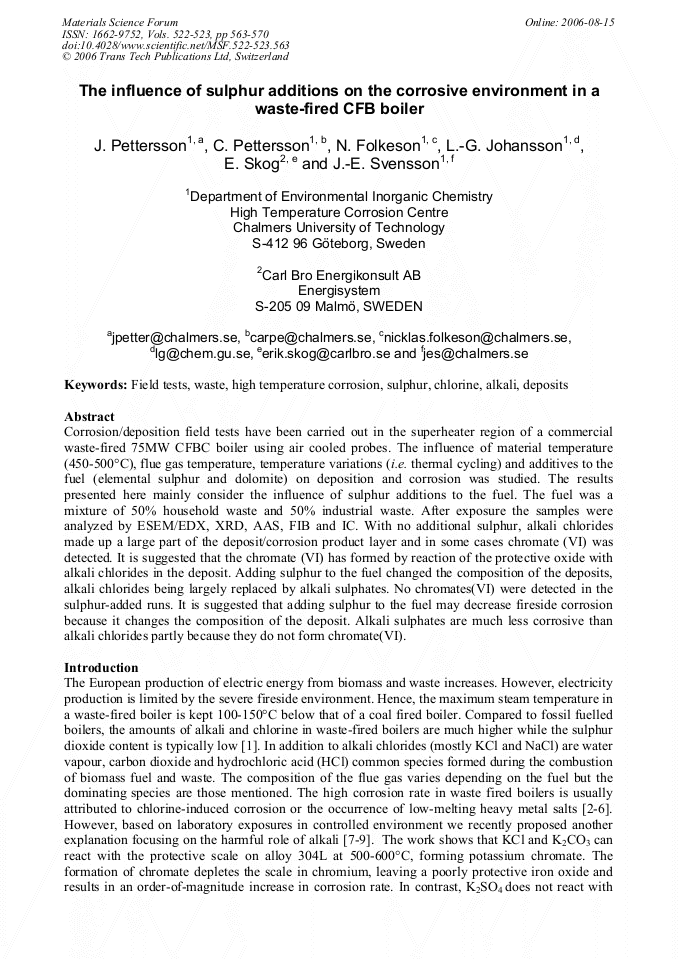

Corrosion/deposition field tests have been carried out in the superheater region of a commercial waste-fired 75MW CFBC boiler using air cooled probes. The influence of material temperature (450-500°C), flue gas temperature, temperature variations (i.e. thermal cycling) and additives to the fuel (elemental sulphur and dolomite) on deposition and corrosion was studied. The results presented here mainly consider the influence of sulphur additions to the fuel. The fuel was a mixture of 50% household waste and 50% industrial waste. After exposure the samples were analyzed by ESEM/EDX, XRD, AAS, FIB and IC. With no additional sulphur, alkali chlorides made up a large part of the deposit/corrosion product layer and in some cases chromate (VI) was detected. It is suggested that the chromate (VI) has formed by reaction of the protective oxide with alkali chlorides in the deposit. Adding sulphur to the fuel changed the composition of the deposits, alkali chlorides being largely replaced by alkali sulphates. No chromates(VI) were detected in the sulphur-added runs. It is suggested that adding sulphur to the fuel may decrease fireside corrosion because it changes the composition of the deposit. Alkali sulphates are much less corrosive than alkali chlorides partly because they do not form chromate(VI).



Materials Science Forum (Volumes 522-523)

Edited by:

Shigeji Taniguchi, Toshio Maruyama, Masayuki Yoshiba, Nobuo Otsuka and Yuuzou Kawahara




J. Pettersson et al., "The Influence of Sulfur Additions on the Corrosive Environments in a Waste-Fired CFB Boiler", Materials Science Forum, Vols. 522-523, pp. 563-570, 2006

Online since:

August 2006




[1] Riedl, R., et al., China International Corrosion Control Conference '99. 1999. Beijing, China: China Chemical Anticorrosion Technology Association (CCATA).

[2] Spiegel, M., Materials and Corrosion-Werkstoffe Und Korrosion, 1999. 50(7): pp.373-393.

[3] Spiegel, M., A. Zahs, and H.J. Grabke, Materials at High Temperatures, 2003. 20(2): p.153159.

[4] Grabke, H.J., E. Reese, and M. Spiegel, Corros. Sci., 1995. 37(7): pp.1023-43.

[5] Montgomery, M., A. Karlsson, and O.H. Larsen, Materials and Corrosion, 2002. 53(2): pp.121-131.

[6] Nielsen, H.P., F.J. Frandsen, and K. Dam-Johansen, Energy & Fuels, 1999. 13(6): p.11141121.

[7] Pettersson, J. and H. Asteman, Svensson, J. -E., Johansson, L. -G., Accepted to oxidation of metals.

[8] Pettersson, C., Pettersson, J., Asteman, H., Svensson, J. E., Johansson, L. G., Accepted to corrosion science.

[9] Pettersson, J. in Department of Cemical and Biological Engineering. 2005, Chalmers University of Technology: Gothenburg. p.55.

[10] E Skog, H.H., S Hansson, J-E Svensson, L-G Johansson, C Pettersson, J Pettersson, T Jonsson, M Halvarsson, N Folkeson, H Asteman, M Hagström, J-B-C Pettersson, K Davidsson, K-E Brink, J Tuiremo, T Aspelin, A Wilson, B Heikne, B Arnesson, K Eriksson and P Gerdin. 2004. p.163.


[11] Asteman, H., et al., Oxidation of Metals, 1999. 52(1-2): pp.95-111.

[12] Asteman, H., et al., Oxidation of Metals, 2000. 54(1-2): pp.11-26.

[13] Segerdahl, K., J. -E. Svensson, and L. -G. Johansson, Materials and Corrosion, 2002. 53: pp.247-255.
