Thermomechanical Modelling of a Steel Plate Impacted by a Shot and Experimental Validation

Abstract:

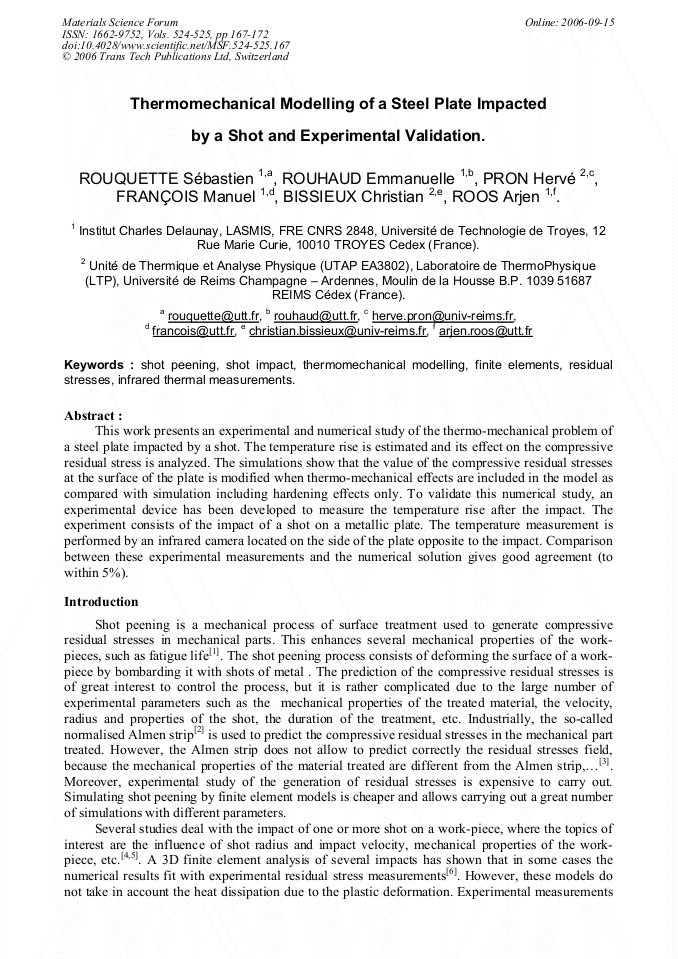

Article Preview

This work presents an experimental and numerical study of the thermo-mechanical problem of a steel plate impacted by a shot. The temperature rise is estimated and its effect on the compressive residual stress is analyzed. The simulations show that the value of the compressive residual stresses at the surface of the plate is modified when thermo-mechanical effects are included in the model as compared with simulation including hardening effects only. To validate this numerical study, an experimental device has been developed to measure the temperature rise after the impact. The experiment consists of the impact of a shot on a metallic plate. The temperature measurement is performed by an infrared camera located on the side of the plate opposite to the impact. Comparison between these experimental measurements and the numerical solution gives good agreement (to within 5%).

Info:

Periodical:

Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander

Pages:

167-172

DOI:

10.4028/www.scientific.net/MSF.524-525.167

Citation:

S. Rouquette et al., "Thermomechanical Modelling of a Steel Plate Impacted by a Shot and Experimental Validation ", Materials Science Forum, Vols. 524-525, pp. 167-172, 2006

Online since:

September 2006

Export:

Price:

$35.00

[1] K.J. Marsh. Shot Peening : Techniques and Applications. Engineering Materials Advisory Services Ltd., London, (1993).

[2] J. Almen, J.P.H. Black. Residual Stresses and Fatigue in Metals. McGraw-Hill, Toronto, 1963, p.64±69.

[3] R. Herzog, W. Zinn, B. Scholtes, H. Wohlfahrt. The significance of Almen intensity for the generation of shot peening residual stresses. Proceedings of the Sixth International Conference on Shot Peening, ICSP6, San Francisco, CA, 1996, p.270±281.

DOI: 10.1002/3527606580.ch21

[4] David Deslaef, Modélisation numérique du grenaillage de précontrainte : approche tridimensionnelle et dynamique. Université de Technologie de Troyes, Thèse de Doctorat (2000).

[5] G.H. Majzoobi ., R. Azizi, A. Alavi Nia. A three-dimensional simulation of shot peening process using multiple shot impacts. Journal of Materials Processing Technology 164-165 (2005) pp.1226-1234.

DOI: 10.1016/j.jmatprotec.2005.02.139

[6] S.A. Meguid, G. Shagal, J.C. Stranart, Three-dimensional finite element analysis of peening of strain-rate sensitive materials using multiple impingement model, Int. J. Impact Eng. 27 (2002) 119-134.

DOI: 10.1016/s0734-743x(01)00043-4

[7] H. Pron, J. -F. Henr, B. Flan, J. Lu, S. Offermann et J.L. Beaudoin. Estimation of residual stresses induced by shot-peening. Measurement of the thermal dissipation with an infrared camera. Int. J. Therm. Sci. 41 (2002) pp.369-375.

DOI: 10.1016/s1290-0729(02)01327-3

[8] J. Lemaître et J-L. Chaboche. Mécanique des matériaux solides. DUNOD, 2ième édition.

[9] P. Rosakis, A.J. Rosakis, G. Ravichandran, J. Hodowany. A thermodynamic internal variable model for the partition of plastic work into heat and stored energy in metals. Journal of the Mechanics and Physics of solids. Vol. 48, pp.581-607 (2000).

DOI: 10.1016/s0022-5096(99)00048-4
