Residual Stress in Laser Bent Steel Components

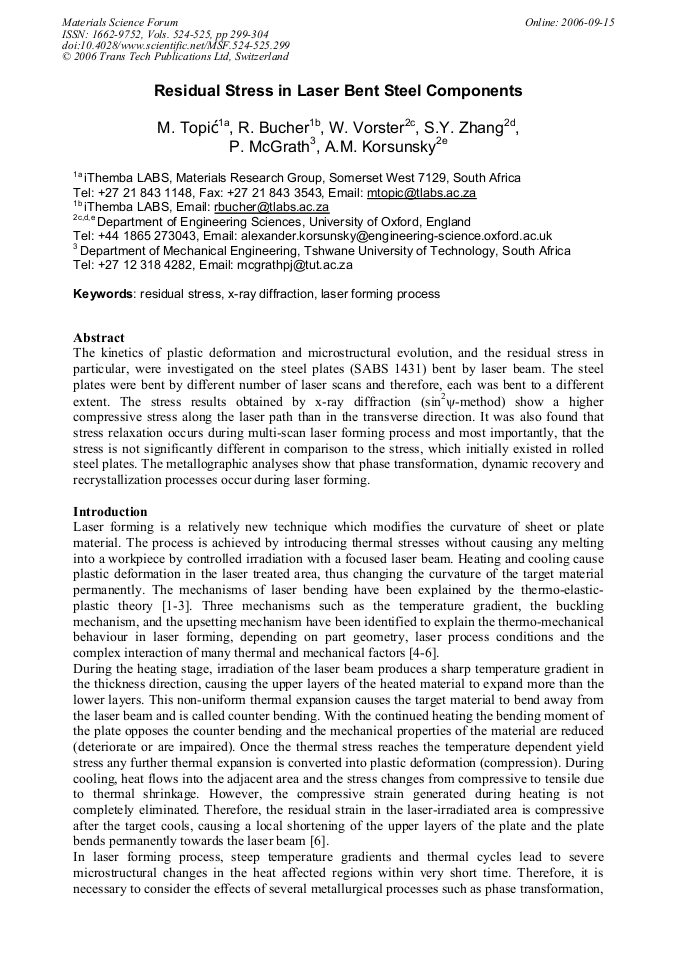

Article Preview

The kinetics of plastic deformation and microstructural evolution, and the residual stress in particular, were investigated on the steel plates (SABS 1431) bent by laser beam. The steel plates were bent by different number of laser scans and therefore, each was bent to a different extent. The stress results obtained by x-ray diffraction (sin2ψ-method) show a higher compressive stress along the laser path than in the transverse direction. It was also found that stress relaxation occurs during multi-scan laser forming process and most importantly, that the stress is not significantly different in comparison to the stress, which initially existed in rolled steel plates. The metallographic analyses show that phase transformation, dynamic recovery and recrystallization processes occur during laser forming.



Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander




M. Topic et al., "Residual Stress in Laser Bent Steel Components", Materials Science Forum, Vols. 524-525, pp. 299-304, 2006

Online since:

September 2006




[1] Y. Namba, (C.P. Wang et al. STS Press, Las Vegas, NV, 1986).

[2] H. Arnet, F. Vollertsen, 1995; Proc. Inst. Mech. Eng. 209, (1995) p.433.

[3] X. R. Zhang, X. Xu; Journal of Applied Mechanics, Vol. 71 (2004), p.321.

[4] F. Vollertsen, Mechanisms and Models for Laser Forming (LANE, M. Geiger et al, eds. Meisenbach, Germany, 1994).

[5] M. Geiger, F. Vollertsen; Annals of the CIRP, 42 (1993), p.301.

[6] G Dearde, S.P. Edwardson, Laser Assisted Forming for Ship Building, SAIL, Williamsburg, VA, 2003).

[7] J. Cheng, Y L Yao: Journal of Manufacturing Science and Engineering Vol. 124 (2002), p.379.

[8] B.D. Cullity, Elements of X-ray Diffraction, (Addison-Wesley, Reading Mass., 1956).

[9] ASTM Standards E 112, American Society for Testing and Materials, (1980).

[10] ASTM Standards E 92-82, American Society for Testing and Materials, (1997).

[11] I.C. Noyan, J.B. Cohen, Residual stress measurement by diffraction and interpretation, (Springer, NY, 1987).

[12] H.P. Klug, L.E. Alexander, X-ray Diffraction Procedures, (John Wiley and Sons, NY, 1954).

[13] P. Van Houtte, P.L. De Buyser, Acta Metall. 41 (2) (1993) p.23.

[14] R.W.K. Honeycombe, Plastic Deformation of Metals (Edward Arnold (Publishers 1968).
