Residual Stress in Railway Rails by IP/cosα Method

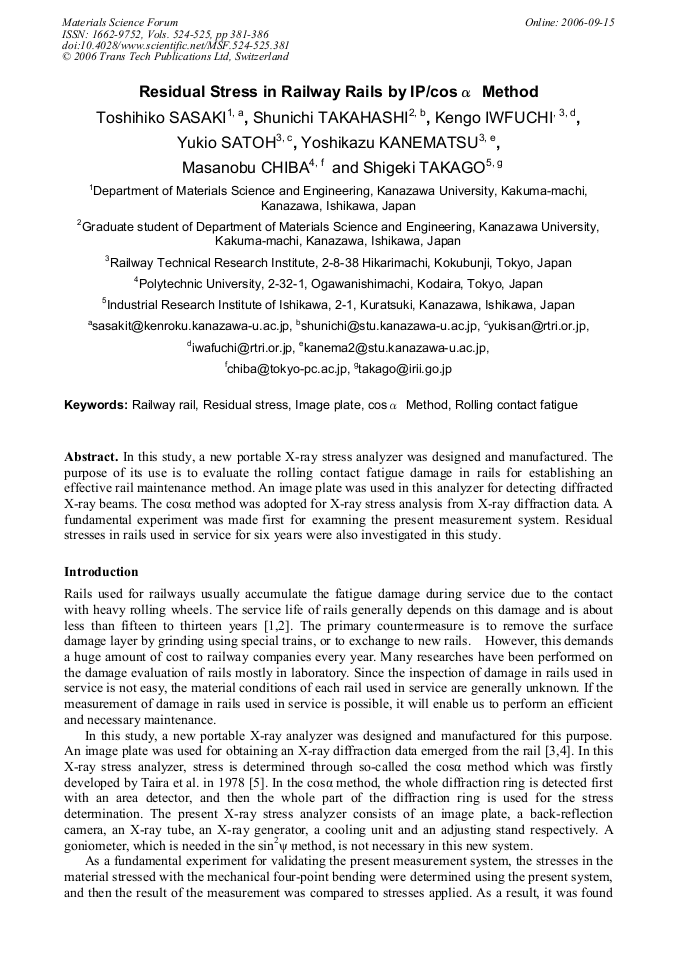

Article Preview

In this study, a new portable X-ray stress analyzer was designed and manufactured. The purpose of its use is to evaluate the rolling contact fatigue damage in rails for establishing an effective rail maintenance method. An image plate was used in this analyzer for detecting diffracted X-ray beams. The cosα method was adopted for X-ray stress analysis from X-ray diffraction data. A fundamental experiment was made first for examning the present measurement system. Residual stresses in rails used in service for six years were also investigated in this study.



Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander




T. Sasaki et al., "Residual Stress in Railway Rails by IP/cosα Method", Materials Science Forum, Vols. 524-525, pp. 381-386, 2006

Online since:

September 2006




[1] K. Kashiwaya, Y. Inoue, Y. Sato and S. Matsuyama: J. Soc. Mater. Sci., Japan, vol. 34-37(1986), p.786.

[2] K. Kashiwaya, Y. Inoue and Y. Sato: J. Soc. Mater. Sci., Japan, vol. 47-9(2000), p.837.

[3] T. Sasaki and Y. Hirose: Transatons of the Japan Society of Mechanical Engineers. A, vol. 61-590 (1995), p.2288.

[4] T. Sasaki, Y. Kanematsu, Y. Sato, K. Iwafuchi, Y. Yamane, K. Hiratsuka and Y. Hirose: J. Soc. Mater. Sci., Japan, vol. 39 (2004), p.29.

[5] S. Taira, K. Tanaka and T. Yamazaki: J. Soc. Mater. Sci., Japan, vol. 27-294(1978), p.251.

[6] I. C. Noyan, and J. B. Cohen, Residual Stress, Measurement by Diffraction and Intertation, 166 (1987), Springer-Verlag.

[7] J. Kelleher, D. Buttle, J. Shackleton, P. J. Webster, D. J. Hughes, P. J. Withers and P. Mummery: EMAS(2002), p.95.
