Residual Stress Analysis of Laser Welded Aluminium T-Joints Using Neutron Diffraction

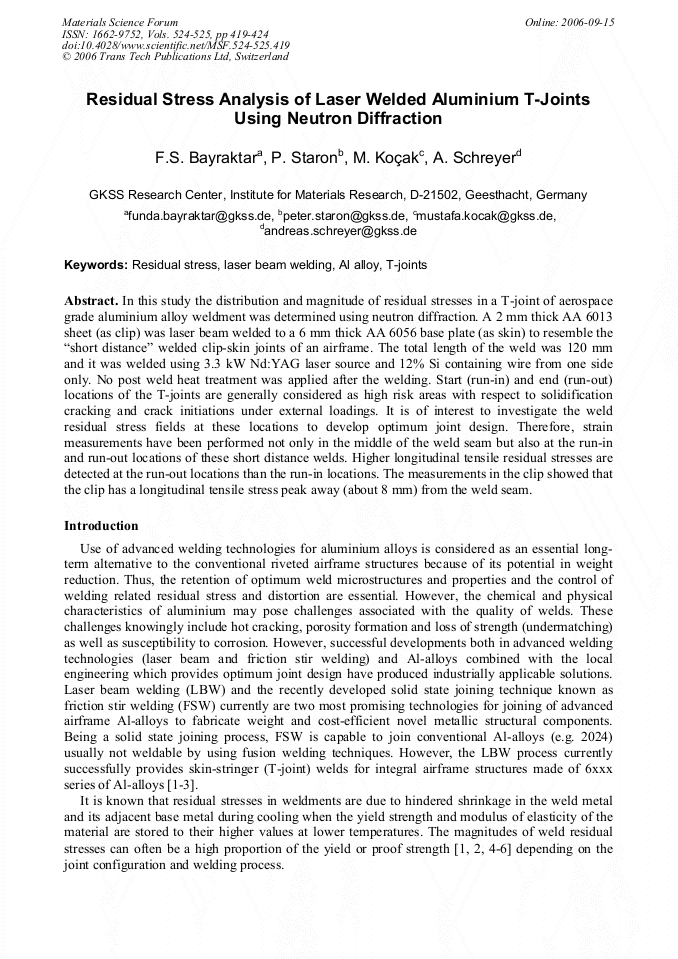

Article Preview

In this study the distribution and magnitude of residual stresses in a T-joint of aerospace grade aluminium alloy weldment was determined using neutron diffraction. A 2 mm thick AA 6013 sheet (as clip) was laser beam welded to a 6 mm thick AA 6056 base plate (as skin) to resemble the “short distance” welded clip-skin joints of an airframe. The total length of the weld was 120 mm and it was welded using 3.3 kW Nd:YAG laser source and 12% Si containing wire from one side only. No post weld heat treatment was applied after the welding. Start (run-in) and end (run-out) locations of the T-joints are generally considered as high risk areas with respect to solidification cracking and crack initiations under external loadings. It is of interest to investigate the weld residual stress fields at these locations to develop optimum joint design. Therefore, strain measurements have been performed not only in the middle of the weld seam but also at the run-in and run-out locations of these short distance welds. Higher longitudinal tensile residual stresses are detected at the run-out locations than the run-in locations. The measurements in the clip showed that the clip has a longitudinal tensile stress peak away (about 8 mm) from the weld seam.



Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander






F. S. Bayraktar et al., "Residual Stress Analysis of Laser Welded Aluminium T-Joints Using Neutron Diffraction", Materials Science Forum, Vols. 524-525, pp. 419-424, 2006

Online since:

September 2006




[1] R.A. Owen, R.V. Preston, P.J. Withers, H.R. Shercliff, P.J. Webster, Materials Science and Engineering, Vol. A346, pp.159-167, (2003).

[2] R.V. Preston, H.R. Shercliff, P.J. Withers, S. Smith, Acta Materialia, Vol. 52, pp.4973-4983, (2004).

[3] M. Ya, P. Marquette, F. Belahcene, J. Lu, Materials Science and Engineering, Vol. A382, pp.257-264, (2004).

[4] Z. Feng, Woodhead Publishing Limited - England and CRC Press LLC - USA, (2005).

[5] A. Stacey, H.J. Macgillivary, G.A. Webster, P.J. Webster, K.R.A. Ziebeck, Journal of Strain Analysis, Vol. 20, No. 2, pp.93-100, (1985).

[6] E. Goncalves, M.A.C. Gonzales, 11th International Conference on Fracture (ICF), Turin (Italy), March 20-25, (2005).

[7] P. Staron, H. -U. Ruhnau, M. Marmotti, P. Mikula, R. Kampmann, Physica B, Vol. 276-278, pp.158-159, (2000).

DOI: 10.1016/s0921-4526(99)01295-8

[8] P. Staron, M. Kocak, S. Williams, A. Wescott, Physica B, Vol. 350, pp.491-493, (2004).

[9] P. Staron, M. Kocak, S. Williams, 6 th International Trends in Welding research Conference Proceedings, pp.253-256, April 15-19, 2002, Pine Mountain, GA, ASM International, (2003).

[10] L. Pintschovius, V. Jung, E. Macherauch and O. Vöhringer, Materials Science and Engineering, Vol. 61, pp.43-50, (1983).

[11] A.J. Allen, M.T. Hutchings, C.G. Windsor, C. Andreani, Advances in Physics, Vol. 34, No. 4, pp.445-473, (1985).

[12] B. Clausen, T. Lorentzen, T. Leffers, Acta Materialia, Vol. 46 pp.3087-3098, (1998).

[13] H.G. Priesmeyer, eds. M.T. Hutchings and A.D. Krawitz, NATO ASI series, Vol. E 216, pp.277-284, (1992).

[14] E. O'Brien, Proceedings of the Sixth International Conference on Residual Stresses ICRS-6, IOM Communications Ltd., 13, 2000, London, UK.

[15] M. Hutchings, P. Withers, T. Holden, T. Lorentzen, CRC Press Taylor & Francis Group, UK, (2005).

[16] A.D. Krawitz, R.A. Winholtz, Materials Science and Engineering, Vol. A185, pp.123-130, (1994).

[17] G. Albertini, G. Bruno, B.D. Dunn, F. Fiori, W. Reimers, J.S. Wright, Materials Science and Engineering, Vol. A224, pp.157-165, (1997).
