The Residual Stresses Generated by Deep Rolling and their Stability in Fatigue & Application to Deep-Rolled Crankshafts

Abstract:

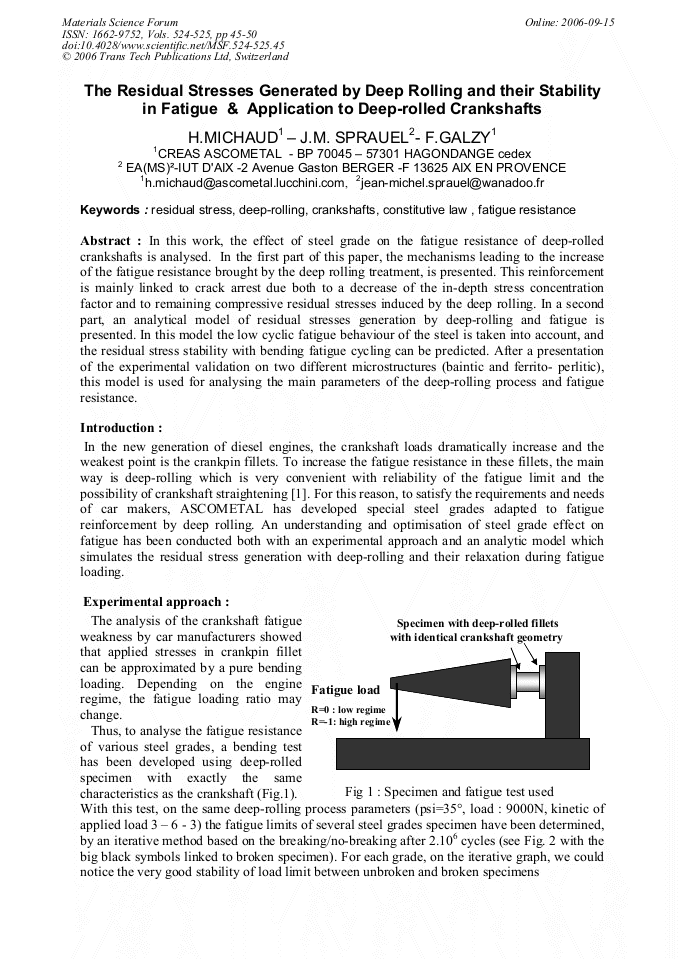

Article Preview

In this work, the effect of steel grade on the fatigue resistance of deep-rolled crankshafts is analysed. In the first part of this paper, the mechanisms leading to the increase of the fatigue resistance brought by the deep rolling treatment, is presented. This reinforcement is mainly linked to crack arrest due both to a decrease of the in-depth stress concentration factor and to remaining compressive residual stresses induced by the deep rolling. In a second part, an analytical model of residual stresses generation by deep-rolling and fatigue is presented. In this model the low cyclic fatigue behaviour of the steel is taken into account, and the residual stress stability with bending fatigue cycling can be predicted. After a presentation of the experimental validation on two different microstructures (baintic and ferrito- perlitic), this model is used for analysing the main parameters of the deep-rolling process and fatigue resistance.

Info:

Periodical:

Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander

Pages:

45-50

DOI:

10.4028/www.scientific.net/MSF.524-525.45

Citation:

H. Michaud et al., "The Residual Stresses Generated by Deep Rolling and their Stability in Fatigue & Application to Deep-Rolled Crankshafts ", Materials Science Forum, Vols. 524-525, pp. 45-50, 2006

Online since:

September 2006

Export:

Price:

$35.00

[1] N.V. Nallicheri, J.P. Clark, F.R. Field : Material Alternatives for the Automotive Crankshaft; a Competitive Assessment Based on Manufacturing economics/March 1991/ SAE -910139.

DOI: 10.4271/910139

[2] D.E. TAYLOR, A.J. CIEPALOWICZ, P. ROGERS and J. DEVLUKIA Prediction of fatigue failure in crankshaft using the technique of crack modelling, Fatigue Fract. Engng. Mater. Struct. Vol. 20 N°1 pp.13-21 - (1997).

DOI: 10.1111/j.1460-2695.1997.tb00397.x

[3] F. Galzy, H. Michaud and J.M. Sprauel : Approach of Residual Stress Generated by Deep Rolling - Application to the Reinforcement of the Fatigue Resistance of Crankshafts" Material Science Forum Vols; 490-491, 2005, pp.384-389.

DOI: 10.4028/www.scientific.net/msf.490-491.384

[4] D.K. Matlock, J.G. Speer : Deep Rolling Reponse of Notched Medium Carbon Bar Steels" SAE Technical Publication - 2004-01-1528, SAE, Warrendale, PA, (2004).

DOI: 10.4271/2004-01-1528

[5] C. Achmus, J. Betzold and H. Wohlfahrt : Messung von Festwalzeigenspannungsverteilungen an Bauteilen , Mat. -Wiss. u. Werkestoffech. 28, 153-157 (1997).

DOI: 10.1002/mawe.19970280405

[6] A. Lahal, J.M. Sprauel and H. Michaud : Numerical and Experimental Analysis of Residual Stress induced by elastic-plastic Bending, Tension or Torsion Bending. (ECSR7 - Berlin ).

DOI: 10.4028/0-87849-414-6.331

[7] F. Galzy : Contribution à l'étude analytique du renforcement des vilebrequins automobiles par galetage de précontraintes, Thèse de l'Université de la Méditerranée, 10 juin (2005).

[8] J. Demurger, R. Forestier, B. Kieber and P. Lasne : Deep rolling process simulation : impact of kinematic hardening on residual stresses, Proceedings ESAFORM (2006).

[9] H. Michaud and M. Blanc : Le vilebrequin et sa mise en œuvre- Répercutions sur sa tenue en service Journées de printemps de fatigue - SF2M - CETIM SENLIS - 21-22 mai (2003).
