Ultrasonic Stress Measurement: Application to Preload Assessment on Already Tightened Bolts

Abstract:

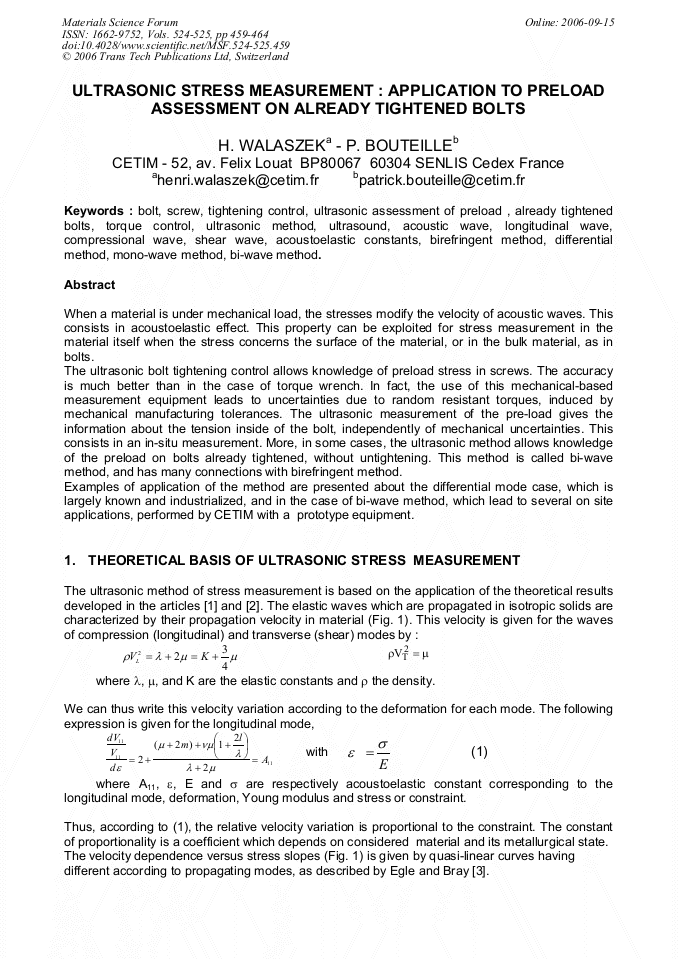

Article Preview

When a material is under mechanical load, the stresses modify the velocity of acoustic waves. This consists in acoustoelastic effect. This property can be exploited for stress measurement in the material itself when the stress concerns the surface of the material, or in the bulk material, as in bolts. The ultrasonic bolt tightening control allows knowledge of preload stress in screws. The accuracy is much better than in the case of torque wrench. In fact, the use of this mechanical-based measurement equipment leads to uncertainties due to random resistant torques, induced by mechanical manufacturing tolerances. The ultrasonic measurement of the pre-load gives the information about the tension inside of the bolt, independently of mechanical uncertainties. This consists in an in-situ measurement. More, in some cases, the ultrasonic method allows knowledge of the preload on bolts already tightened, without untightening. This method is called bi-wave method, and has many connections with birefringent method. Examples of application of the method are presented about the differential mode case, which is largely known and industrialized, and in the case of bi-wave method, which lead to several on site applications, performed by CETIM with a prototype equipment.

Info:

Periodical:

Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander

Pages:

459-464

DOI:

10.4028/www.scientific.net/MSF.524-525.459

Citation:

H. Walaszek and P. Bouteille, "Ultrasonic Stress Measurement: Application to Preload Assessment on Already Tightened Bolts", Materials Science Forum, Vols. 524-525, pp. 459-464, 2006

Online since:

September 2006

Export:

Price:

$35.00

[1] D. S. Hughes and J. L. Kelly, 1953, Second-order elastic deformation of solids, Phys. Rev, 92, 5, pp.1145-1149.

DOI: 10.1103/physrev.92.1145

[2] T. D. Murnaghan, 1951, Finite Deformation of an elastic solid, John Wiley, New York.

[3] D. M. Egle and D. E. Bray, 1976, Measurement of acoustoelastic and third-order elastic constants for rail steels, Journal of Acoustical Society of America, 60, 3, pp.741-744.

DOI: 10.1121/1.381146

[4] D. E. Bray, Current directions of Ultrasonic Stress Measurement Techniques, 2000, 15th WCNDT, Rome, Paper n°647.

[5] H. Walaszek, H.P. Lieurade, C. Peyrac, J. Hoblos, J. Rivenez, 2002, Potentialities of ultrasonics for evaluating residual stresses : Influence of microstructure, Journal of Pressure Vessel Technology, Vol. 124, August 2002, pp.349-353.

DOI: 10.1115/1.1490931

[6] H. Walaszek, J. Hoblos, G. Bourse, C. Robin, 2002, Effect of microstructure on ultrasonic measurements of residual stresses in welded joints, 6 th European Conference on Residual Stresses (E.C.R.S. 6), 10-13 July 2002, Coimbra, Portugal.

DOI: 10.4028/www.scientific.net/msf.404-407.875

[7] J. Hoblos, G. Bourse, C. Robin, H. Walaszek, 2003, Ultrasonic stress in welded joints by using Lcr Waves : An approach to separate microstructure and stress effects, (WCU2003), 7-10 September, Paris, France, pp.701-704.

DOI: 10.4028/0-87849-414-6.453

[8] H. Walaszek, J. Hoblos, G. Bourse, C. Robin, HP. Lieurade, 2004, Ultrasonic stress measurement in welded component by using LCR waves : analysis of the microstructure effect, Conference ASME PVP, July 2004, San Diego CA, USA.

DOI: 10.1115/pvp2004-2829

[9] Cetim-Info n° 181, december 2002 Les assemblages contrôlés en direct.

[10] H. Walaszek, J. Hoblos, G. Bourse, C. Robin, H.P. Lieurade, P. Bouteille, 2005, Ultrasonic stress measurement : application to welded joints and to bolt tightening assessment, COFREND Congress, May 2005, Beaune, France.

DOI: 10.1115/pvp2004-2829
