Residual Stress and Microstructure in the Rail/Wheel Contact Zone of a Worn Railway Wheel

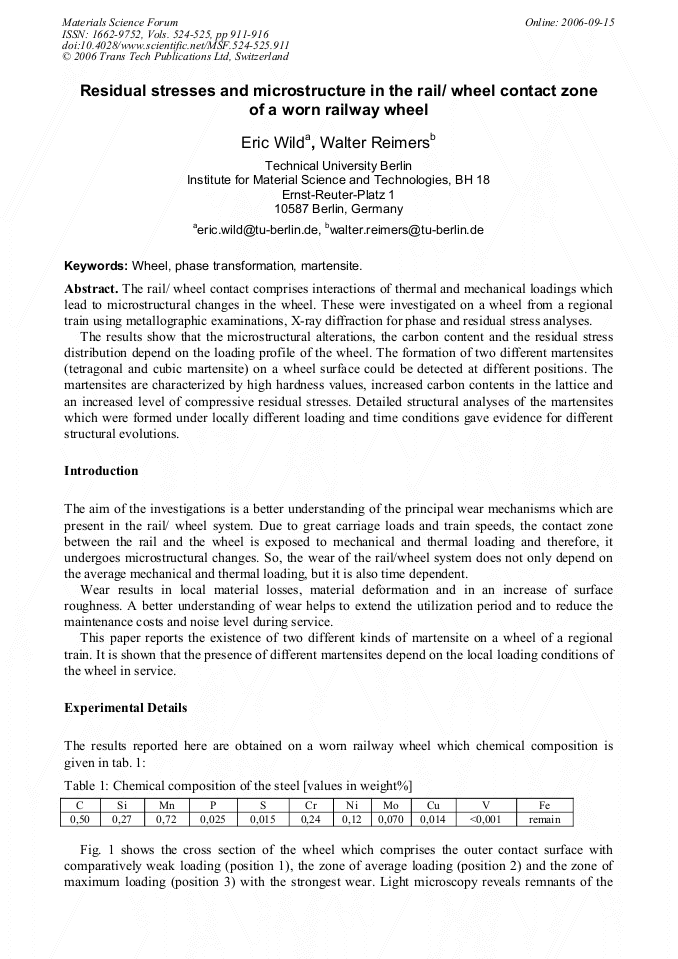

Article Preview

The rail/ wheel contact comprises interactions of thermal and mechanical loadings which lead to microstructural changes in the wheel. These were investigated on a wheel from a regional train using metallographic examinations, X-ray diffraction for phase and residual stress analyses. The results show that the microstructural alterations, the carbon content and the residual stress distribution depend on the loading profile of the wheel. The formation of two different martensites (tetragonal and cubic martensite) on a wheel surface could be detected at different positions. The martensites are characterized by high hardness values, increased carbon contents in the lattice and an increased level of compressive residual stresses. Detailed structural analyses of the martensites which were formed under locally different loading and time conditions gave evidence for different structural evolutions.



Materials Science Forum (Volumes 524-525)

Edited by:

W. Reimers and S. Quander




E. Wild and W. Reimers, "Residual Stress and Microstructure in the Rail/Wheel Contact Zone of a Worn Railway Wheel", Materials Science Forum, Vols. 524-525, pp. 911-916, 2006

Online since:

September 2006




[1] T. Wroblewski, O. Clauß, H.A. Crostack, A. Ertel, F. Fandrick, C. Genzel. K. Hradil, W. Ternes, E. Woldt: Nuclear Instruments & Methods in Physics Research A Vol. 428 (1999), p.570.


[2] T. Wroblewski, E. Wild, T. Poeste, A. Pyzalla, Mat. Sci. Letters 19 (2000), pp.975-978.

[3] V. Hauk: Structural and Residual Stress Analysis by Nondestructive Methods (Elsevier, Netherlands 1997), pp.136-154.

[4] O. Vöhringer, E. Macherauch: HTM Vol. 32 (1977) No. 4, pp.153-202.

[5] K. Knothe, S. Stichel: Schienenfahrzeugdynamik (Springer, Germany 2003).

[6] L. Wang: Microstructure and Residual Stress State in the Contact Zone of Rails and Wheels (TU Berlin, 2002, phD-thesis).

[7] K. Knothe, S. Liebelt: Wear 189 (1995) pp.91-99.

[8] V.L. Popov, V. Rubzov, A.V. Kolubaev: Tribologie und Schmierungstechnik (2000) No. 6, pp.35-38.

[9] J. Ahlström, B. Karlsson: Wear Vol. 232, (1999), pp.1-14.

[10] H.J. Eckstein: Wärmebehandlung von Stahl (VEB Grundstoffindustrie, 1971).
