Via Hole Formation in Silicon Carbide by Laser Micromachining

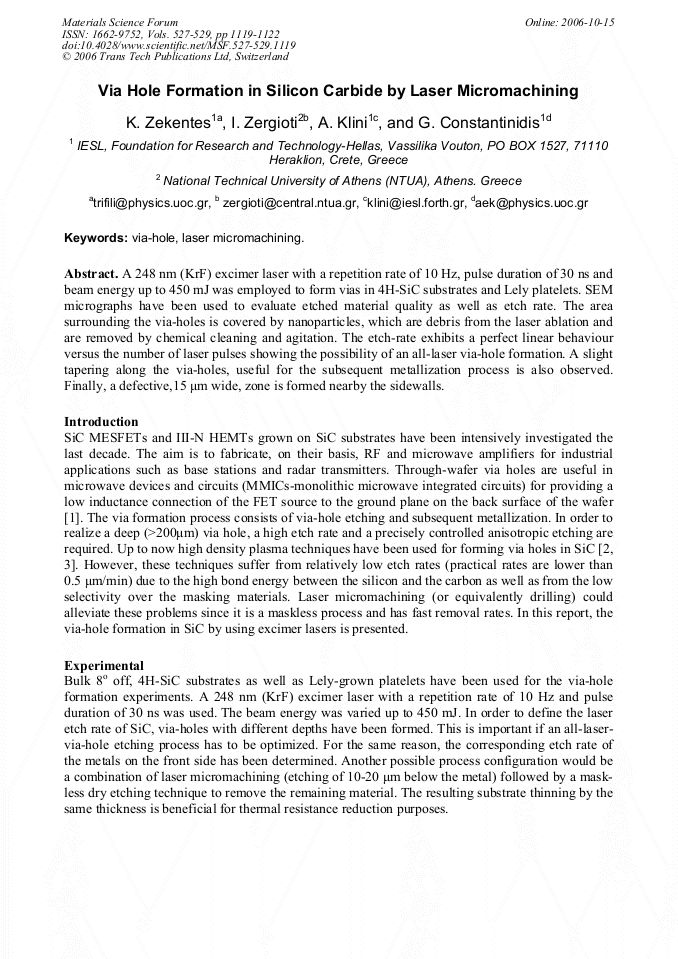

Article Preview

A 248 nm (KrF) excimer laser with a repetition rate of 10 Hz, pulse duration of 30 ns and beam energy up to 450 mJ was employed to form vias in 4H-SiC substrates and Lely platelets. SEM micrographs have been used to evaluate etched material quality as well as etch rate. The area surrounding the via-holes is covered by nanoparticles, which are debris from the laser ablation and are removed by chemical cleaning and agitation. The etch-rate exhibits a perfect linear behaviour versus the number of laser pulses showing the possibility of an all-laser via-hole formation. A slight tapering along the via-holes, useful for the subsequent metallization process is also observed. Finally, a defective,15 μm wide, zone is formed nearby the sidewalls.



Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow




K. Zekentes et al., "Via Hole Formation in Silicon Carbide by Laser Micromachining", Materials Science Forum, Vols. 527-529, pp. 1119-1122, 2006

Online since:

October 2006




[1] L. G. Hipwood and P. N. Wood: J. Vac. Sci. Technol. B3(1), (1985), pp.395-397.

[2] P. Leerungnawarat, D. C. Hays, H. Cho, S. J. Pearton, R. M. Strong, C. M. Zetterling and M. Ostling: J. Vac. Sci. Technol. B17(5), (1999), p.2050-(2054).

[3] F. A. Khan, B. Roof, L. Zhou and I. Adesida: J. Electron. Mat., 30(3), (2001), pp.212-219. Fig. 3. Etch (ablation) rate of SiC versus number of pulses for 240 mJ beam energy.
