Growth of Cubic Silicon Carbide Crystals from Solution

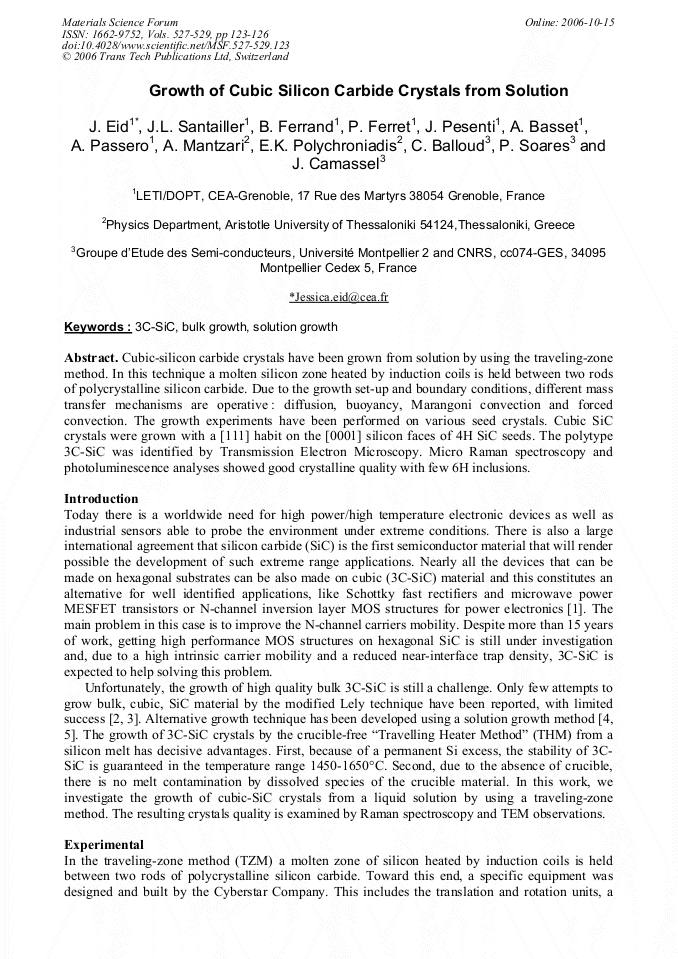

Article Preview

Cubic-silicon carbide crystals have been grown from solution by using the traveling-zone method. In this technique a molten silicon zone heated by induction coils is held between two rods of polycrystalline silicon carbide. Due to the growth set-up and boundary conditions, different mass transfer mechanisms are operative : diffusion, buoyancy, Marangoni convection and forced convection. The growth experiments have been performed on various seed crystals. Cubic SiC crystals were grown with a [111] habit on the [0001] silicon faces of 4H SiC seeds. The polytype 3C-SiC was identified by Transmission Electron Microscopy. Micro Raman spectroscopy and photoluminescence analyses showed good crystalline quality with few 6H inclusions.



Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow




J. Eid et al., "Growth of Cubic Silicon Carbide Crystals from Solution", Materials Science Forum, Vols. 527-529, pp. 123-126, 2006

Online since:

October 2006




[1] T. Tachibana, H. S. Kong, Y. C. Wang and R. F. Davis: J. Appl. Phys. 67 (1990), p.6375.

[2] K. Semmelroth, M. Krieger, G. Pensl, H. Nagasawa, R. Püsche, M. Hundhausen, L. Ley, M. Nerding and H. P. Strunk: Mater. Sci. Forum 457-460 (2004), p.151.


[3] A. Freudenberg, J. Wollweber, R. Nitschke, V. Alex and J. Doerschel: Journal of Crystal Growth 275/1-2 (2004), e467-e470.


[4] K. Gillessen and W. Von Munch: Journal of Crystal Growth 19, (1973), pp.263-268.

[5] J. Wollweber, A. Freudenberg, R. Nitschke and J. Doerschel: Poster presented at the 2 nd FrenchGerman Crystal Growth Meeting (10 th - 13th March 2003) Nancy, France.

[6] H. Harima, S. I. Nakashima and T. Uemura: J. Appl. Phys. 78 (1995), p. (1996).
