A Study on the Reliability and Stability of High Voltage 4H-SiC MOSFET Devices

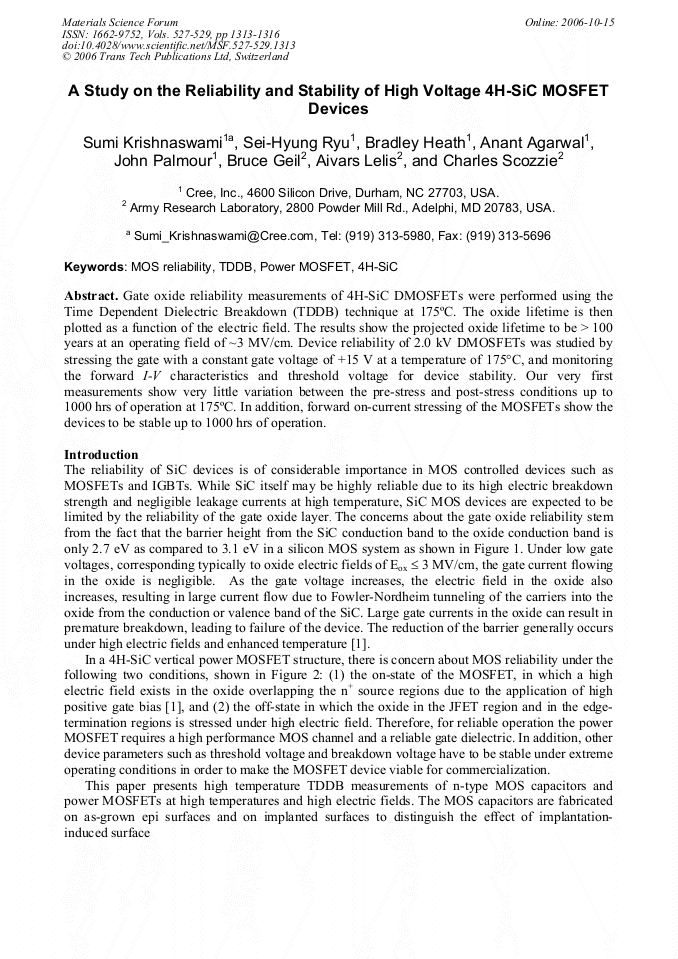

Article Preview

Gate oxide reliability measurements of 4H-SiC DMOSFETs were performed using the Time Dependent Dielectric Breakdown (TDDB) technique at 175°C. The oxide lifetime is then plotted as a function of the electric field. The results show the projected oxide lifetime to be > 100 years at an operating field of ~3 MV/cm. Device reliability of 2.0 kV DMOSFETs was studied by stressing the gate with a constant gate voltage of +15 V at a temperature of 175°C, and monitoring the forward I-V characteristics and threshold voltage for device stability. Our very first measurements show very little variation between the pre-stress and post-stress conditions up to 1000 hrs of operation at 175°C. In addition, forward on-current stressing of the MOSFETs show the devices to be stable up to 1000 hrs of operation.



Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow




S. Krishnaswami et al., "A Study on the Reliability and Stability of High Voltage 4H-SiC MOSFET Devices", Materials Science Forum, Vols. 527-529, pp. 1313-1316, 2006

Online since:

October 2006




[1] A.K. Agarwal, S. Seshadri, L.B. Roland: IEEE Elec. Dev. Letters, Vol. 18 (1997), pp.592-594.

[2] S. Krishnaswami, M. K. Das, A. K. Agarwal and J. Palmour: Mat. Res. Soc. Symp. Proc., Vol. 815 (2004), pp.205-210.
