Homoepitaxial Growth and Characterization of 4H-SiC Epilayers by Low-Pressure Hot-Wall Chemical Vapor Deposition

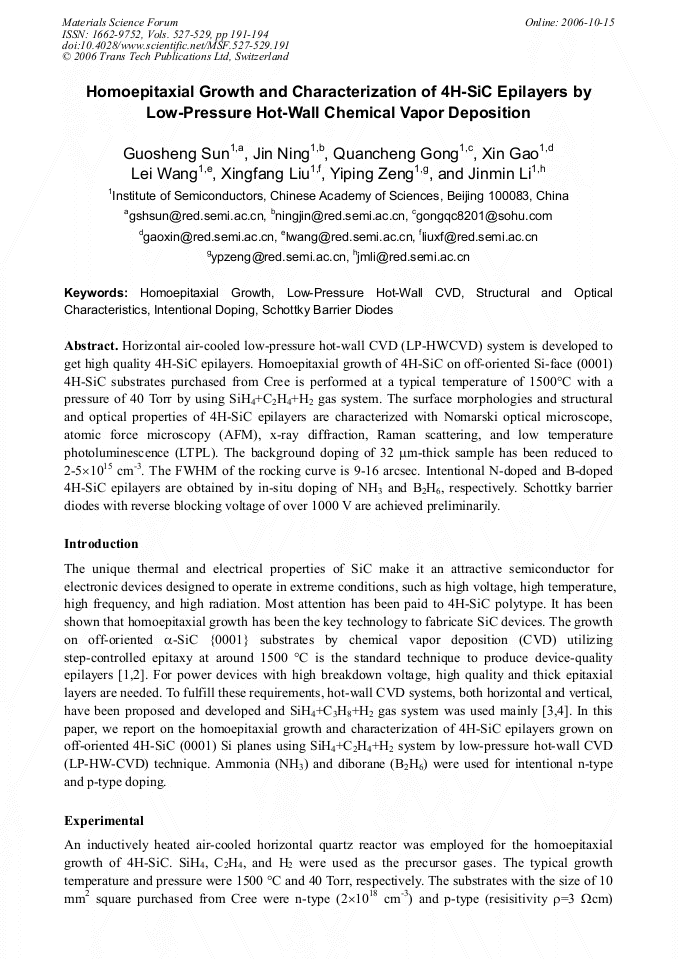

Article Preview

Horizontal air-cooled low-pressure hot-wall CVD (LP-HWCVD) system is developed to get high quality 4H-SiC epilayers. Homoepitaxial growth of 4H-SiC on off-oriented Si-face (0001) 4H-SiC substrates purchased from Cree is performed at a typical temperature of 1500°C with a pressure of 40 Torr by using SiH4+C2H4+H2 gas system. The surface morphologies and structural and optical properties of 4H-SiC epilayers are characterized with Nomarski optical microscope, atomic force microscopy (AFM), x-ray diffraction, Raman scattering, and low temperature photoluminescence (LTPL). The background doping of 32 μm-thick sample has been reduced to 2-5×1015 cm-3. The FWHM of the rocking curve is 9-16 arcsec. Intentional N-doped and B-doped 4H-SiC epilayers are obtained by in-situ doping of NH3 and B2H6, respectively. Schottky barrier diodes with reverse blocking voltage of over 1000 V are achieved preliminarily.



Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow




G. S. Sun et al., "Homoepitaxial Growth and Characterization of 4H-SiC Epilayers by Low-Pressure Hot-Wall Chemical Vapor Deposition", Materials Science Forum, Vols. 527-529, pp. 191-194, 2006

Online since:

October 2006




[1] T. Kimoto, H. Nishino, W. S. Yoo and H. Matsunami: J. Appl. Phys. Vol. 73 (1993), p.726.

[2] H. S. Kong, J. T. Glass and R.F. Davis: J. Appl. Phys. Vol. 64 (1988), p.2672.

[3] H. Fujiwara, K. Danno, T. Kimoto, T. Tojo and H. Matsunami: Mat. Sci. Forum Vols. 457-460 (2004), pp.205-208.

[4] O. Kordina, C. Hallin, A. Henry, J. P. Bergman, I. Ivanov, A. Ellison, N. T. Son and E. Janzén: Phys. Stat. Sol. Vol. B202 (1997), p.321.

[5] C. Raynaud, K. Isoird, M. Lazar, C. M. Johnson and N. Wright: J. Appl. Phys. Vol. 19 (2002), pp.9841-9847. Fig. 6 Typical forward and reverse I-V characteristics of Ti/4H-SiC Schottky diodes.

DOI: https://doi.org/10.1063/1.1477256
