Growth of Micropipe Free Crystals on 4H-SiC {03-38} Seeds

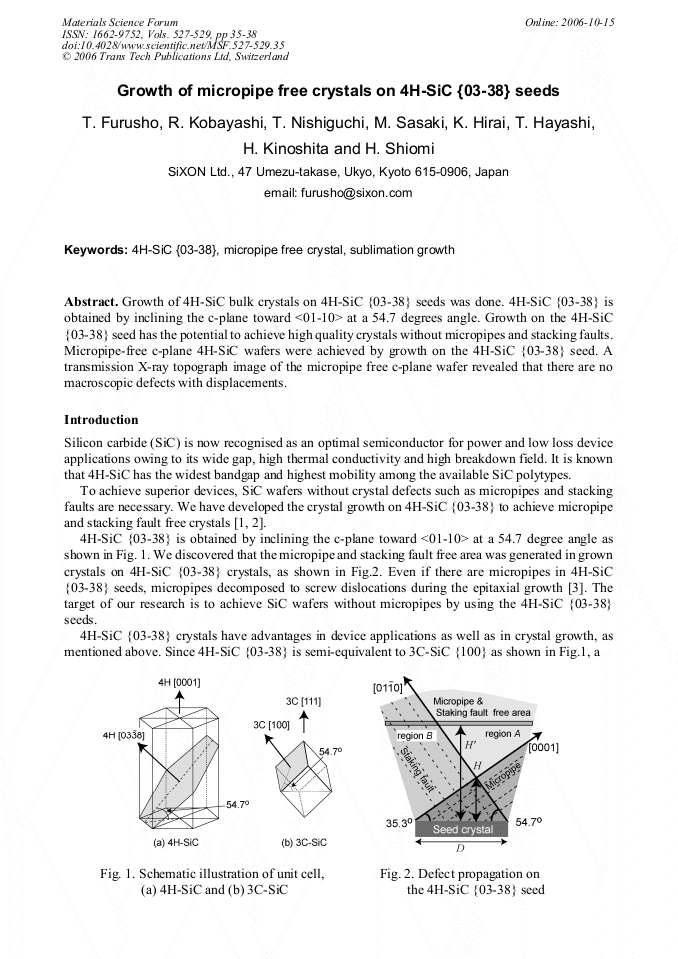

Article Preview

Growth of 4H-SiC bulk crystals on 4H-SiC {03-38} seeds was done. 4H-SiC {03-38} is obtained by inclining the c-plane toward <01-10> at a 54.7 degrees angle. Growth on the 4H-SiC {03-38} seed has the potential to achieve high quality crystals without micropipes and stacking faults. Micropipe-free c-plane 4H-SiC wafers were achieved by growth on the 4H-SiC {03-38} seed. A transmission X-ray topograph image of the micropipe free c-plane wafer revealed that there are no macroscopic defects with displacements.



Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow




T. Furusho et al., "Growth of Micropipe Free Crystals on 4H-SiC {03-38} Seeds", Materials Science Forum, Vols. 527-529, pp. 35-38, 2006

Online since:

October 2006




[1] K. Nakayama, Y. Miyanagi, H. Shiomi, S. Nishino, T. Kimoto and H. Matsunami: Mater. Sci. Forum 389-393 (2002) 123.


[2] T. Furusho, H. Takagi, S. Ota, H. Shiomi and S. Nishino: Mater. Sci. Forum 457-460 (2004) 107.

[3] T. Kimoto, K. Dannno, K. Fujihira, H. Shiomi and H. Matsunami: Mater. Sci. Forum 433-436 (2003) 198.

[4] T. Hirao, H. Yano, T. Kimoto, H. Matsunami and H. Shiomi: Mater. Sci. Forum 389-393 (2002) 1065.


[5] J. Takahashi and N. Ohtani: Phys. Stat. Sol. (b) 202 (1997).
