Development of Non-Destructive In-House Observation Techniques for Dislocations and Stacking Faults in SiC Epilayers

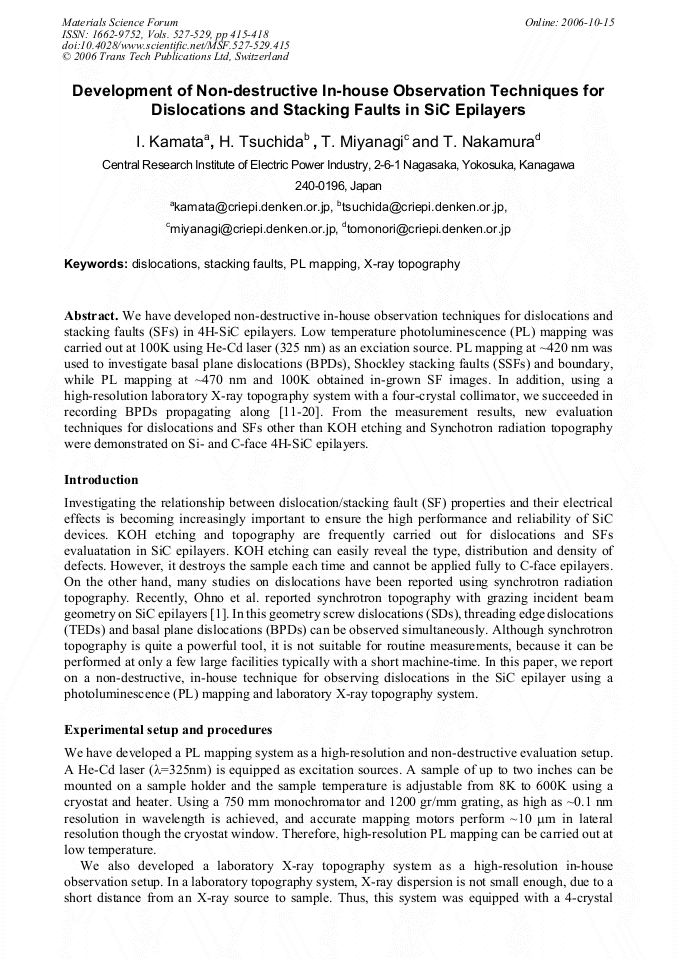

Article Preview

We have developed non-destructive in-house observation techniques for dislocations and stacking faults (SFs) in 4H-SiC epilayers. Low temperature photoluminescence (PL) mapping was carried out at 100K using He-Cd laser (325 nm) as an exciation source. PL mapping at ~420 nm was used to investigate basal plane dislocations (BPDs), Shockley stacking faults (SSFs) and boundary, while PL mapping at ~470 nm and 100K obtained in-grown SF images. In addition, using a high-resolution laboratory X-ray topography system with a four-crystal collimator, we succeeded in recording BPDs propagating along [11-20]. From the measurement results, new evaluation techniques for dislocations and SFs other than KOH etching and Synchotron radiation topography were demonstrated on Si- and C-face 4H-SiC epilayers.



Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow




I. Kamata et al., "Development of Non-Destructive In-House Observation Techniques for Dislocations and Stacking Faults in SiC Epilayers", Materials Science Forum, Vols. 527-529, pp. 415-418, 2006

Online since:

October 2006




[1] T. Ohno, H. Yamaguchi, S. Kuroda, K. Kojima, T. Suzuki, K. Arai: J. Cryst. Growth Vol. 260 (2004), p.209.

[2] H. Tsuchida, I. Kamata, T. Jikimoto, and K. Izumi: J. Cryst. Growth Vol. 237-239 (2002), p.1206.

[3] S. G. Sridhara, F. H. C. Carlsson, J. P. Bergman and E. Janzén: Appl. Phys. Lett. Vol. 79 (2001) p.3944.

[4] H. Jacobson, J. Birch, R. Yakimova, M. Syvajarvi, J. P. Bergman, A. Ellison, T. Tuomi, and E. Janzén: J. Appl. Phys. Vol. 91, (2002) p.6355.

[5] H. Tsuchida, I. Kamata, T. Miyanagi, T. Nakamura, K. Nakayama, R. Ishii, and Y. Sugawara: Jpn. J. Appl. Phys. Vol. 44 (2005), p.806.

[6] T. Miyanagi, H. Tsuchida, I. Kamata, T. Nakamura, R. Ishii, K. Nakayama and Y. Sugawara: these Proceedings.

[7] S. Izumi, I. Kamata, T. Tawara, H. Fujisawa and H. Tsuchida: Mater. Sci. Forum Vols. 457-460 (2004), p.1085.
