The Corrosion Behaviour of a Hypereutectic Al-Si Alloy Obtained by Spray Forming in Acid, Neutral and Alkaline Solutions

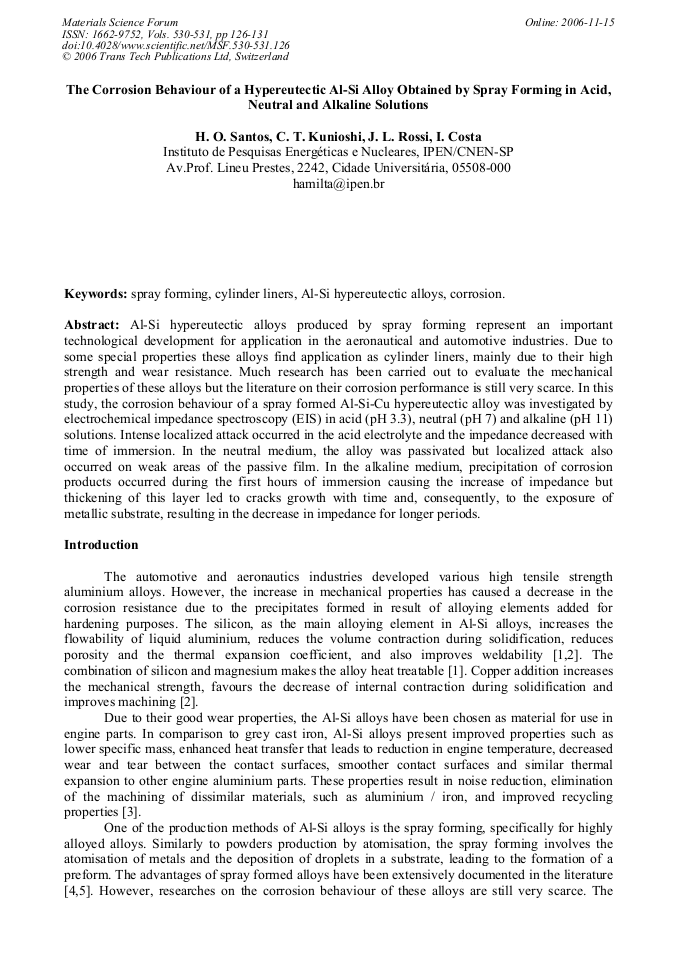

Article Preview

Al-Si hypereutectic alloys produced by spray forming represent an important technological development for application in the aeronautical and automotive industries. Due to some special properties these alloys find application as cylinder liners, mainly due to their high strength and wear resistance. Much research has been carried out to evaluate the mechanical properties of these alloys but the literature on their corrosion performance is still very scarce. In this study, the corrosion behaviour of a spray formed Al-Si-Cu hypereutectic alloy was investigated by electrochemical impedance spectroscopy (EIS) in acid (pH 3.3), neutral (pH 7) and alkaline (pH 11) solutions. Intense localized attack occurred in the acid electrolyte and the impedance decreased with time of immersion. In the neutral medium, the alloy was passivated but localized attack also occurred on weak areas of the passive film. In the alkaline medium, precipitation of corrosion products occurred during the first hours of immersion causing the increase of impedance but thickening of this layer led to cracks growth with time and, consequently, to the exposure of metallic substrate, resulting in the decrease in impedance for longer periods.



Materials Science Forum (Volumes 530-531)

Edited by:

Lucio Salgado and Francisco Ambrozio Filho




H.O. Santos et al., "The Corrosion Behaviour of a Hypereutectic Al-Si Alloy Obtained by Spray Forming in Acid, Neutral and Alkaline Solutions", Materials Science Forum, Vols. 530-531, pp. 126-131, 2006

Online since:

November 2006




[1] Rossi, JL; Ambrozio Filho, F. Spray forming plant an available technology. Metalurgia & Materiais, v. 52, n. 449 January 1996. pp.18-19. (In Portuguese).

[2] Rossi, JL; Ambrozio Filho, F.; Bressiani, JC; Faria, RN; Genova, LA; Leal Neto, RM; Ramanathan, LV. The Powder Processing Centre - a successful experience. Third Int. Conf. on Spray Forming. 9-11 Sept. 1996, Cardiff, Wales, UK.

[3] Hermann, P.; Morris, DG. Relationship between microstructure and mechanical properties of the spinodally-decomposing Cu-15Ni-8Sn alloy prepared by spray deposition. Powder Metallurgy World Congress. v. III Paris 6-9 July 1994. pp.1851-18544.

DOI: 10.1007/bf02665473

[4] Crivellone, G; Fuganti, A; Mus, C; Saline, D. SAE Special Technical Publication STP-1610 Powdered Metal Performance Applications, 2001, pp.77-83.

[5] Gomes, EG; Rossi, JL. Heat treatment effect on spray formed Al/SiC composite. Key Engineering Materials, v. 189-91, 2001. pp.496-502.

DOI: 10.4028/

[6] ACESITA - Private Communication. (b) Cracks → (a).
