2D Model for Ball Mills

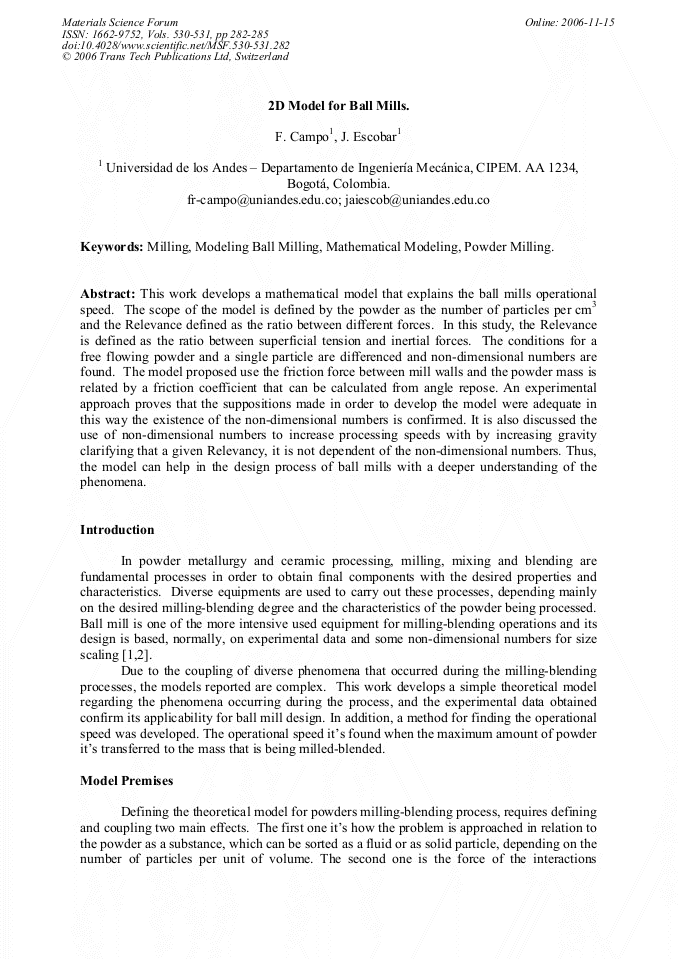

Article Preview

This work develops a mathematical model that explains the ball mills operational speed. The scope of the model is defined by the powder as the number of particles per cm3 and the Relevance defined as the ratio between different forces. In this study, the Relevance is defined as the ratio between superficial tension and inertial forces. The conditions for a free flowing powder and a single particle are differenced and non-dimensional numbers are found. The model proposed use the friction force between mill walls and the powder mass is related by a friction coefficient that can be calculated from angle repose. An experimental approach proves that the suppositions made in order to develop the model were adequate in this way the existence of the non-dimensional numbers is confirmed. It is also discussed the use of non-dimensional numbers to increase processing speeds with by increasing gravity clarifying that a given Relevancy, it is not dependent of the non-dimensional numbers. Thus, the model can help in the design process of ball mills with a deeper understanding of the phenomena.



Materials Science Forum (Volumes 530-531)

Edited by:

Lucio Salgado and Francisco Ambrozio Filho




F. Campo and J. A. Escobar Gutiérrez, "2D Model for Ball Mills", Materials Science Forum, Vols. 530-531, pp. 282-285, 2006

Online since:

November 2006




[1] M.E. Fayed. and L. Otten (Editor). Handbook of Powder Science and Technology. Chapter. 13. Size reduction of Solids: Crushing and Grinding Equipment. L. G. Austin. Van Nostrand reinhold Company. 1984. USA.

[2] L.G. Austion , R.R. Klimpel and P.T. Luckie. Process Engineering of Size Reduction: Ball Milling. Society of Mining Engineers of the American Institute of Mining, Metallurgical, and Petroleum engineers, Inc. 1984. USA.

[3] Erhard Klar and James W. Fesko. Atomization. En ASM. ASM HANDBOOK. Vol 7. Powder Metallurgy,. ASM International. The Materials Information Society. 5th ed. 1993. USA.

[4] Frank M. White. Mecanica de Fuidos. McGraw-Hill. Mexico. (1979).

[5] H. Goldstein, Poole, C. and Safko, J. Classical Mechanics. 3th ed. Addison Wesley. 2002. USA.

[6] J.P. Hansen and I.R. McDonald. Theory of Simple Liquids. 2nd ed. Academic Press. 2003. Great Britain.

[7] J.E. Gordon. The New Science of Strong Materials of Why You Don't Fall Through the Floor. Penguin Books. 1991. England.

[8] Michael Spivak. Calculus. Calculo Infinitesimal. 2nd ed. Editorial Reveré, S.A. 1999. Mexico.

[9] George F. Simmons. Ecuaciones diferenciales. Con aplicaciones y notas históricas. 2nd ed. McGraw-Hill. 1991. Spain.
