Performance Assessment of Spray Formed AISI M2 High-Speed Steel Tools

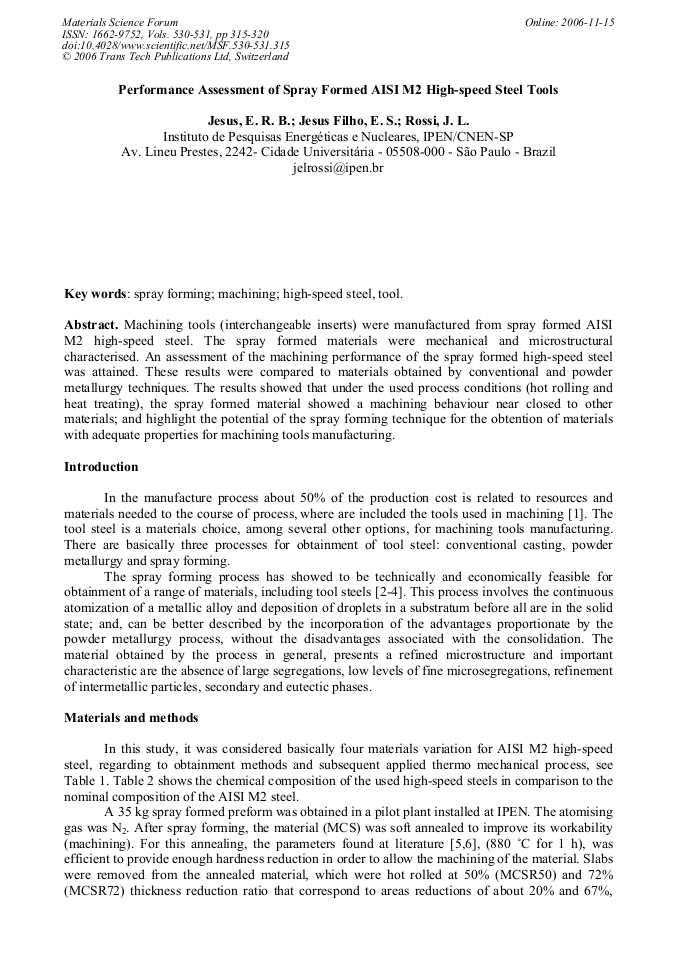

Article Preview

Machining tools (interchangeable inserts) were manufactured from spray formed AISI M2 high-speed steel. The spray formed materials were mechanical and microstructural characterised. An assessment of the machining performance of the spray formed high-speed steel was attained. These results were compared to materials obtained by conventional and powder metallurgy techniques. The results showed that under the used process conditions (hot rolling and heat treating), the spray formed material showed a machining behaviour near closed to other materials; and highlight the potential of the spray forming technique for the obtention of materials with adequate properties for machining tools manufacturing.



Materials Science Forum (Volumes 530-531)

Edited by:

Lucio Salgado and Francisco Ambrozio Filho




E. R. B. Jesus et al., "Performance Assessment of Spray Formed AISI M2 High-Speed Steel Tools", Materials Science Forum, Vols. 530-531, pp. 315-320, 2006

Online since:

November 2006




[1] De Garmo EP, Black JT, Kohser RA. Materials and processes in manufacturing. 8th Ed., Prentice Hall, 1997, pp.3-5.

[2] Jesus ERB. Machining tools in AISI M2 high-speed steel obtained by spray forming process. 2004. Ph.D. Thesis - IPEN/USP. (In Portuguese).

[3] Lima RM, Jesus, ERB, Rossi J L. Effect of heat treatment on the microstructure of spray formed AISI M2 high-speed steel. Materials Science Forum, v. 416-418, n. 1, 2003. pp.95-100.


[4] Ohja SN, Singh SN. On spray deposition of high-speed steel. Journal of Materials Science Letters, v. 10, 1991. pp.893-95.

[5] Bayer, AM, Walton, LR. Wrought tool steels. Metals Handbook, 10th Ed., ASM, v. 1, 1990. pp.757-79.

[6] Roberts GA, Cary RA. Tool Steels - 4th Ed., ASM, 1980. pp.628-791.

[7] Ambrozio Filho F, Nogueira RA, Ribeiro OS, Neves MDM, Lima LFCP. Influence of heat treatment on microstructures of conventional and sintered AISI-M2 high-speed steel. 20 ASM Heat Treating Society Conf., St. Louis, MO, 9-12 October 2000. pp.1006-1009.

[8] METAL POWDER INDUSTRIES FEDERATION. Determination of transverse strength of powder metallurgy materials, 1991 (Standard Test Method 41).

[9] INTERNATIONAL ORGANIZATION FOR STANDARDIZATION. Tool-life testing with single-point turning tools. 2nd Ed., 1993. (ISO 3685).

[10] Santos RS. Machining tool made of sintered and conventional: properties analysis. 1998. Master Dissertation - UFSC, Brazil. (In Portuguese).

[11] Haberling E, Weigand HH. Correlation between mechanical properties, microstructure and performance of high-speed tool steels. Int. Conf. Towards Improved Performance of Tool Material, Teddington, Middlesex, 28-29 April 1981. pp.170-75.

[12] Igharo M, Wood JV. Investigation of M2 high-speed steel produced by Osprey process. Powder Metallurgy, v. 32, n. 2, 1989. pp.124-31.


[13] Mesquita RA, Barbosa CA. Evaluation of as-hipped PM high-speed steel for production of large-diameter cutting tools. Materials Science Forum, v. 416-418, 2003. pp.235-240.


[14] Schruff I, Schüler V, Spiegelhauer C. Advanced tool steels produced via spray forming. 6th Int. Tooling Conf., Karlstad-Sweden, v. 2, 10-13 Sept. 2002. pp.973-990.

[15] Schruff I, Schüler V, Spiegelhauer C. Spray forming - the new technology for the production of high-grade tool steels. SDMA 2003 and ICSF V, Bremen-Germany, v. 1, 22-25 June 2003. pp.5-11 to 5-25.
