An Overview of the Microstructures Present in High-Speed Steel -Carbides Crystallography

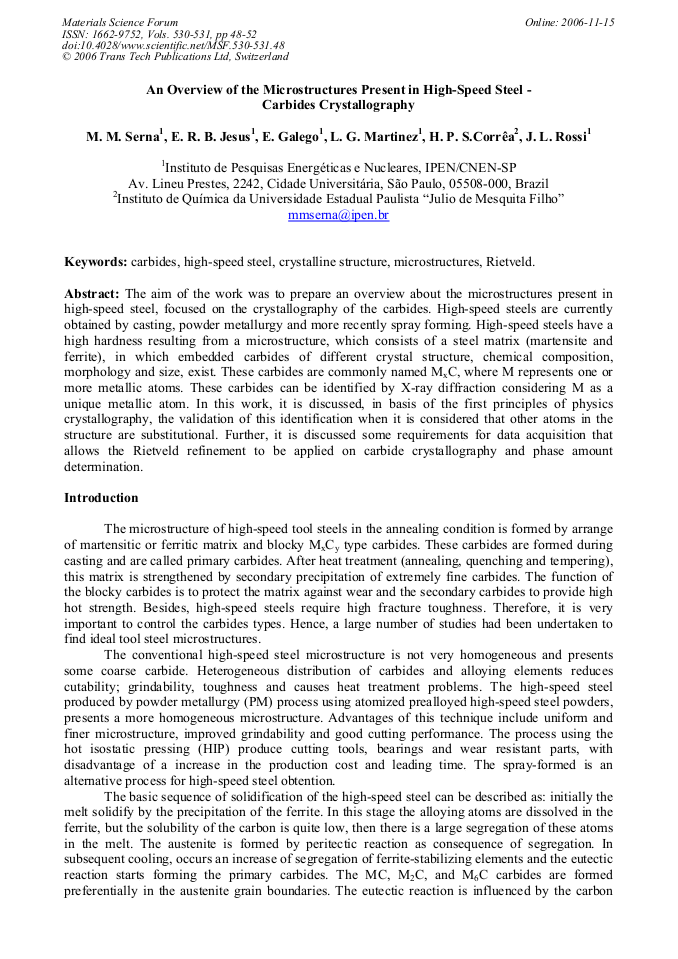

Article Preview

The aim of the work was to prepare an overview about the microstructures present in high-speed steel, focused on the crystallography of the carbides. High-speed steels are currently obtained by casting, powder metallurgy and more recently spray forming. High-speed steels have a high hardness resulting from a microstructure, which consists of a steel matrix (martensite and ferrite), in which embedded carbides of different crystal structure, chemical composition, morphology and size, exist. These carbides are commonly named MxC, where M represents one or more metallic atoms. These carbides can be identified by X-ray diffraction considering M as a unique metallic atom. In this work, it is discussed, in basis of the first principles of physics crystallography, the validation of this identification when it is considered that other atoms in the structure are substitutional. Further, it is discussed some requirements for data acquisition that allows the Rietveld refinement to be applied on carbide crystallography and phase amount determination.



Materials Science Forum (Volumes 530-531)

Edited by:

Lucio Salgado and Francisco Ambrozio Filho




M.M. Serna et al., "An Overview of the Microstructures Present in High-Speed Steel -Carbides Crystallography", Materials Science Forum, Vols. 530-531, pp. 48-52, 2006

Online since:

November 2006




[1] E. S. Lee, W. J. Park, J. Y. Jung, S. Ahn, Metallurgical and Materials Transactions A, 29 (1998), p.1395.

[2] A. Fischer, E. Kohlhaas, Praktische Metallographie, 12 (1975), p.393.

[3] M. R. Gomashchi, C. M. Sellars, Metal Science, 18 (1984), p.44.

[4] J. Wang, Z. Lai, M. Friesel, A. Lodding, Advances in Powder Metallurgy and Particulate Materials, 14-17 May, Seattle, 3 (1995), p.10117.

[5] S. Karagöz, I. Liem, E. Bischoff, H. F. Fischmeister, Metallurgical Transactions A, 20, (1989), p.2695.

[6] A. Kulmburg, Praktische Metallographie, 35 (1998), p.267.

[7] H. Fredriksson, S. Brising, Scandinavian Journal of Metallurgy, 5 (1976), p.268.

[8] A. Kulmburg, Praktische Metallographie, 35 (1998), p.181.

[9] ICSD - Inorganic Crystal Structure Database - Database available for the Fachinformationszentrum Karlsruhe, version (2003).

[10] ICDD - PDF2 - Database available for The International Centre for Diffraction Data®, version (2003).

[11] D. Rafaja, W. Lengauer, P. Ettmayer, V. N. Lipatnikov, Journal of Alloys and Compounds, 269 (1998), p.60.

[12] S. K. Jackson, R. C. Layland, H. C. Loye, Journal of Alloy and Compounds, 291 (1999), p.94.

[13] J. Dubois, T. Epicier, C. Esnouf, G. Fantozzi, Acta Metallurgica, 36 (1988), p.1891.
