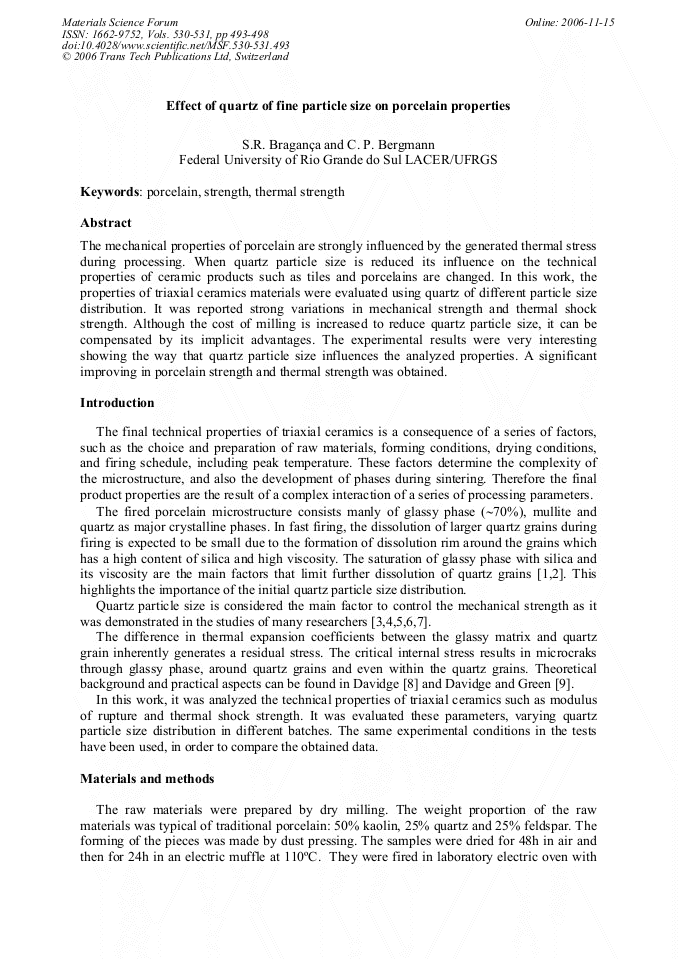

Effect of Quartz of Fine Particle Size on Porcelain Properties

Abstract:

The mechanical properties of porcelain are strongly influenced by the generated thermal stress during processing. When quartz particle size is reduced its influence on the technical properties of ceramic products such as tiles and porcelains are changed. In this work, the properties of triaxial ceramics materials were evaluated using quartz of different particle size distribution. It was reported strong variations in mechanical strength and thermal shock strength. Although the cost of milling is increased to reduce quartz particle size, it can be compensated by its implicit advantages. The experimental results were very interesting showing the way that quartz particle size influences the analyzed properties. A significant improving in porcelain strength and thermal strength was obtained.

Info:

Periodical:

Materials Science Forum (Volumes 530-531)

Main Theme:

Advanced Powder Technology V

Edited by:

Lucio Salgado and Francisco Ambrozio Filho

Pages:

493-498

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.530-531.493

Citation:

S.R. Bragança and C.P. Bergmann, "Effect of Quartz of Fine Particle Size on Porcelain Properties", Materials Science Forum, Vols. 530-531, pp. 493-498, 2006

Online since:

November 2006

Authors:

S.R. Bragança, C.P. Bergmann

Keywords:

Porcelain, Strength, Thermal Strength

Export:

RIS, BibTeX

Price:

$38.00

Permissions:

Request Permissions

Add to Cart

References

[1] L. Mattyasovszky-Zsolnay, , J. Mater. Sci. 40 (1957) 299-306.

[2] M.J. Jackson, M.J.; B. Mills, J. Mat. Sc., 32, (1997) 3295-3304.

[3] Kobayashi, Y., Ohira, O., Kato, E., J. Am. Ceram. Soc. 75 (1992) 1801-6.

[4] Ohya, Y. & Takahashi, Y., J. Am. Ceram. Soc. 82 (1999) 445-8.

[5] Warshaw, S.I. & Seider, R.J., J. Am. Ceram. Soc. 50 (1967) 337-42.

[5] Ece, O.I. & Nakagawa, Z., Ceramics Int. 28 (2002) 131-40.

[7] Bragança, S.R. & Bergmann, C.P., Ceramics Int. 29 (2003) 801-6.

[8] Davidge, R.W., Mechanical behaviour of ceramics. Cambridge University Press, Cambridge, (1979).

[9] Davidge and Green (1968) in.

[8] .

[10] Schüller, K.H., Porcelain. Ceramics Monographs. Handbook of Ceramics, Verlag Sch. GmbH, (1979).

[11] Carty, M.W. & Senapati, U., J. Am. Ceram. Soc. 81 (1998) 3-20.

[12] J.B. Wachtman, Mechanical Properties of Ceramics, John Wiley & Sons (1996).

[13] Freiman, S.W., In: Science of Whitewares, The Amer. Ceram. Soc., Westerville, USA, 1996, pp.431-6.

[14] Carty, W.M. & Pinto, B.M., Ceram. Eng. Sci. Proc. 23, No. 2 (2002) 95-104.

[15] McConville, Whitewares and Materials. Ceramic Eng. Sci. Proc. v. 25, 2, The Amer. Ceram. Soc. (2004).

[16] Bragança, S.R.; Bergmann, C.P.; Hübner, submited to J. Eur. Ceram. Soc. (2005).

[17] Hasselman, D.P.H., J. Am. Ceram. Soc., 52, 11, (1969).

[18] Moore, R.E. thermal. In: Science of Whitewares,. The Amer. Ceram. Soc , Westerville, USA, (1996).
