Phosphoric Acid Rate Addition Effect in the Hydroxyapatite Synthesis by Neutralization Method

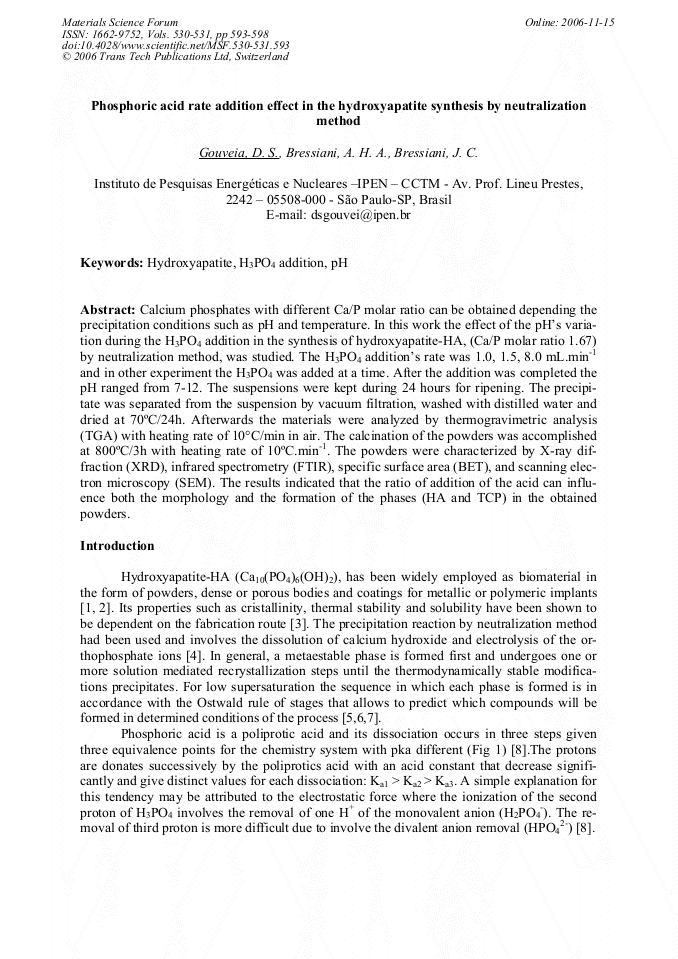

Article Preview

Calcium phosphates with different Ca/P molar ratio can be obtained depending the precipitation conditions such as pH and temperature. In this work the effect of the pH’s variation during the H3PO4 addition in the synthesis of hydroxyapatite-HA, (Ca/P molar ratio 1.67) by neutralization method, was studied. The H3PO4 addition’s rate was 1.0, 1.5, 8.0 mL.min-1 and in other experiment the H3PO4 was added at a time. After the addition was completed the pH ranged from 7-12. The suspensions were kept during 24 hours for ripening. The precipitate was separated from the suspension by vacuum filtration, washed with distilled water and dried at 70°C/24h. Afterwards the materials were analyzed by thermogravimetric analysis (TGA) with heating rate of 10°C/min in air. The calcination of the powders was accomplished at 800°C/3h with heating rate of 10°C.min-1. The powders were characterized by X-ray diffraction (XRD), infrared spectrometry (FTIR), specific surface area (BET), and scanning electron microscopy (SEM). The results indicated that the ratio of addition of the acid can influence both the morphology and the formation of the phases (HA and TCP) in the obtained powders.



Materials Science Forum (Volumes 530-531)

Edited by:

Lucio Salgado and Francisco Ambrozio Filho




D.S. Gouveia et al., "Phosphoric Acid Rate Addition Effect in the Hydroxyapatite Synthesis by Neutralization Method", Materials Science Forum, Vols. 530-531, pp. 593-598, 2006

Online since:

November 2006




[1] L.L. Hench, J. Wilson (editors). An introduction to Bioceramics - Advanced Series in Ceramics 1, World Scientific, Singapore (1993).

[2] E. Mavropoulos, A.M. Rossi, N.C.C. Rocha, G.A. Soares, J.C. Moreira, G.T. Moure, Materials Characterization 50(2003) pp.203-207.

[3] L. Bernard, M. Freche, J.L. Lacout, B. Biscans, Powder Tecnology 103 (1999) pp.19-25.

[4] A. Osaka, Y. Miura, K. Takeuchi, M. Asada, K. Takahashi, Journal of Materials Science: Materials in Medicine 2 (1991) 51-55.

[5] M.M. Seckler, thesis (1994) p.38.

[6] J.S.V. Albuquerque, R.E.F.Q. Nogueira, J.V.F. Neto, J.I.L.A. Junior, D.O. Lima, T.D. Pinheiro, M.H. Prado da Silva, Anais do 47º Congresso Brasileiro de Cerâmica (2003) pp.2205-2215.

[7] M.M. Seckler, M. Denese, S. Derenzo, J.V. Valarelli, M. Giulietti, R. RodriguezClemente, Materials Research vol 2 nº 2 (1999) pp.59-62.

[8] P. Atkins, L. Jones; Princípios de Química, Bookman, 2001 p.743.

[9] P.N. Kumta, C. Sfeir, D. -H. Lee, D. Olton, D. Choi. Acta biomaterials 1 (2005) 65-83.

[10] A. Afshar, M. Ghorbani, N. Ehsani, M.R. Saeri, C.C. Sorell, Materials and Design 24 (2003) pp.197-202.

[11] C. J, Liao, F.H. Lin, K.S. Chen, J.S. Sun, Biomaterials 20 (1999) pp.1807-1813.

[12] E. Landi, A. Tampieri, G. Celotti, L. Vichi, M. Sandri, Biomaterials 25 (2004) pp.1763-1770.


[13] K. Ishikawa, P. Ducheyene, S. Radin, Jounal of Material Science - Materials in Medicine 4 (1993) pp.165-168.

[14] S. Raynaud, E. Champion, D. Bernache-Assolant, P. Thomas, Biomaterials 23(2002) pp.1065-1072.

[15] A. Slosarczyk, C. Paluszkiewicz, M. Gawlicki and Z. Paszkiewicz, Ceramics International 23 (1997) pp.297-304.


[16] A. Destainville, E. Champion, D. Bernache-Assolant, E. Laborde, Materials Chemistry and Physics 80 (2003) pp.269-277.

[17] W.L. Suchanek, K. Byrappa, P. Shuk, R.E. Riman, V.F. Janas, K.S. TenHuisen, Jounal of Solid State Chemistry 177 (2004) pp.793-799.
