A Novel Edge Detector for the Pressed Characters Based on the Facet Model and the Topographic Structures

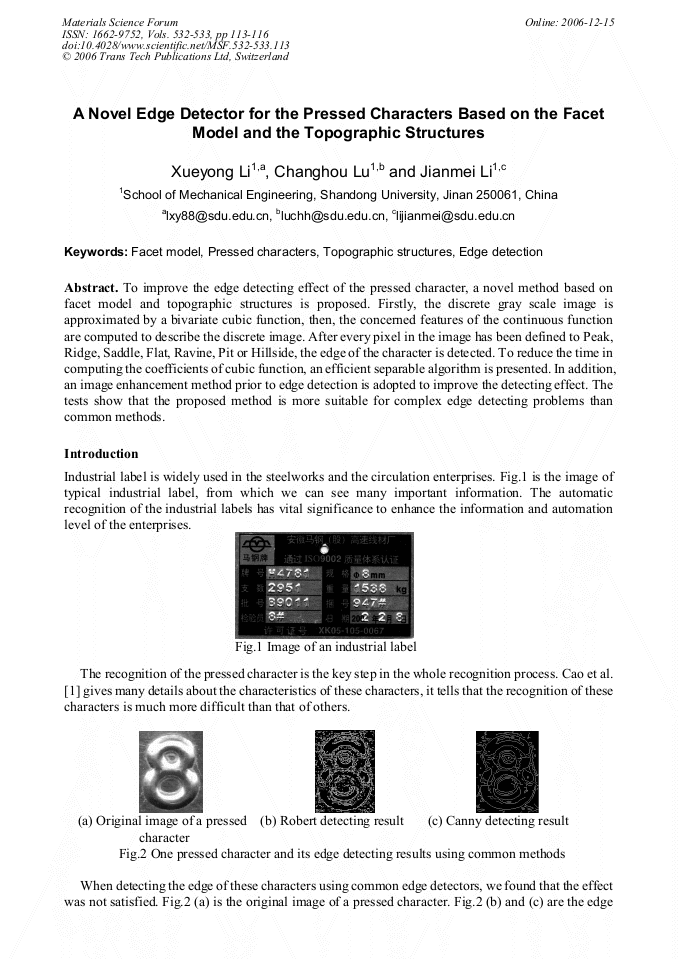

Article Preview

To improve the edge detecting effect of the pressed character, a novel method based on facet model and topographic structures is proposed. Firstly, the discrete gray scale image is approximated by a bivariate cubic function, then, the concerned features of the continuous function are computed to describe the discrete image. After every pixel in the image has been defined to Peak, Ridge, Saddle, Flat, Ravine, Pit or Hillside, the edge of the character is detected. To reduce the time in computing the coefficients of cubic function, an efficient separable algorithm is presented. In addition, an image enhancement method prior to edge detection is adopted to improve the detecting effect. The tests show that the proposed method is more suitable for complex edge detecting problems than common methods.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu




X. Y. Li et al., "A Novel Edge Detector for the Pressed Characters Based on the Facet Model and the Topographic Structures", Materials Science Forum, Vols. 532-533, pp. 113-116, 2006

Online since:

December 2006




[1] J.H. Cao and C.H. Lu: Journal of Optoelectronics·Laser, Vol. 6 (2004), p.714.

[2] W. Quan, N.N. Zheng and J.R. Xue: Mini-Microsystems, Vol. 25 (2004), p.271.

[3] B.R. Abidi, H. Sari-Sarraf and J.S. Goddard: Proceedings of SPIE-The International Society for Optical Engineering, Vol. 3837 (1999), p.334.

[4] P. Araman, D. Schmoldt and T.H. Cho: AI Applications, Vol. 6 (1992), p.13.

[5] R.M. Haralick: IEEE Trans. Pattern Anal. Mach. Intell, Vol. PAMI-6 (1984) , p.58.

[6] J.G. Li: Theory and Practice of Computer Vision (ShangHai JiaoTong Univesity Press, China 1991).

[7] R.M. Haralick and L.G. Shapiro: Computer and Robot Vision (Addison-Wesley Publishing Company, USA 1992).
