Analysis of Chip Breaking Prediction in Cutting Aluminum Alloys

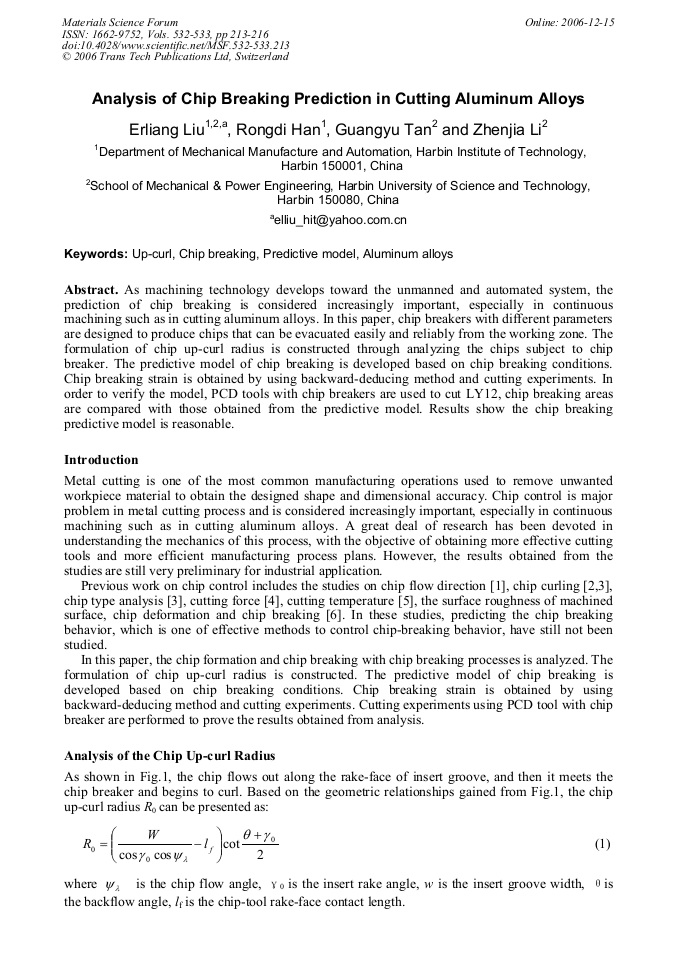

Article Preview

As machining technology develops toward the unmanned and automated system, the prediction of chip breaking is considered increasingly important, especially in continuous machining such as in cutting aluminum alloys. In this paper, chip breakers with different parameters are designed to produce chips that can be evacuated easily and reliably from the working zone. The formulation of chip up-curl radius is constructed through analyzing the chips subject to chip breaker. The predictive model of chip breaking is developed based on chip breaking conditions. Chip breaking strain is obtained by using backward-deducing method and cutting experiments. In order to verify the model, PCD tools with chip breakers are used to cut LY12, chip breaking areas are compared with those obtained from the predictive model. Results show the chip breaking predictive model is reasonable.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu




E. L. Liu et al., "Analysis of Chip Breaking Prediction in Cutting Aluminum Alloys", Materials Science Forum, Vols. 532-533, pp. 213-216, 2006

Online since:

December 2006




[1] C.Y. Jiang, Y.Z. Zhang and Z. J. Chi: Annals of the CIRP, Vol. 33 (1984), pp.81-84.

[2] I.S. Jawahir: Annals of the CIRP, Vol. 37 (1988), pp.121-126.

[3] K. Nakayama: Bulletin of Japanese Society of Precision Engineering, Vol. 18, (1984) No. 2, pp.97-103.

[4] I.S. Jawahir: Annals of the CIRP, Vol. 39 (1990), pp.47-51.

[5] P. Lezanski, M.C. Shaw: Transactions of the ASME, Vol. 132 (1990), p.112.

[6] Z. Li: Machining Chip breaking Process Analysis (Mechanical Industry Press, Beijing, China, 1996).
