Study on Process of Planing Forming of Plate Fin Heat Sinks

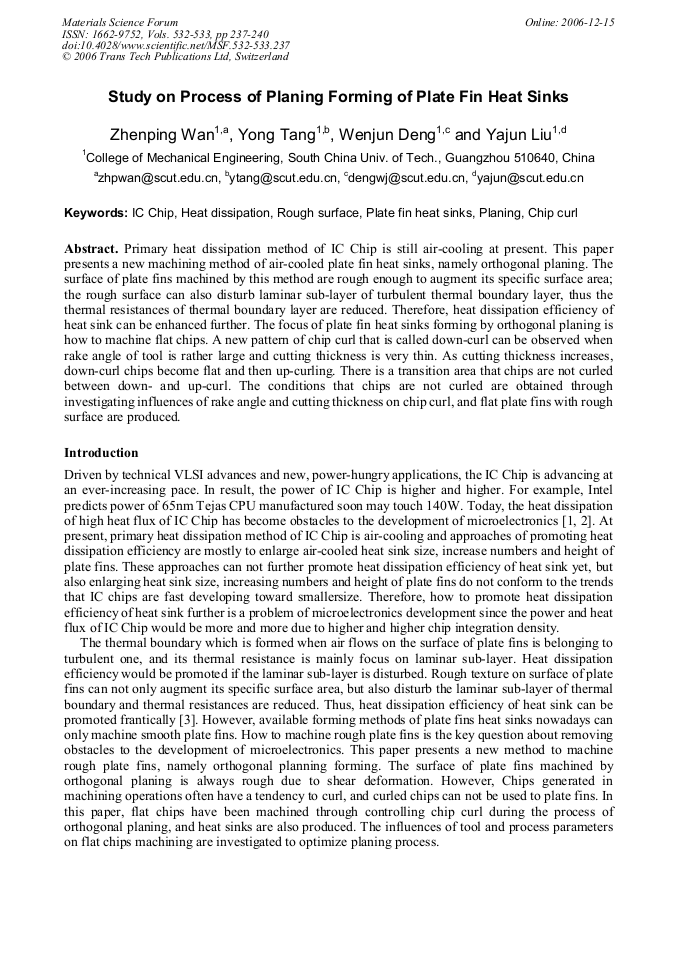

Article Preview

Primary heat dissipation method of IC Chip is still air-cooling at present. This paper presents a new machining method of air-cooled plate fin heat sinks, namely orthogonal planing. The surface of plate fins machined by this method are rough enough to augment its specific surface area; the rough surface can also disturb laminar sub-layer of turbulent thermal boundary layer, thus the thermal resistances of thermal boundary layer are reduced. Therefore, heat dissipation efficiency of heat sink can be enhanced further. The focus of plate fin heat sinks forming by orthogonal planing is how to machine flat chips. A new pattern of chip curl that is called down-curl can be observed when rake angle of tool is rather large and cutting thickness is very thin. As cutting thickness increases, down-curl chips become flat and then up-curling. There is a transition area that chips are not curled between down- and up-curl. The conditions that chips are not curled are obtained through investigating influences of rake angle and cutting thickness on chip curl, and flat plate fins with rough surface are produced.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu




Z. P. Wan et al., "Study on Process of Planing Forming of Plate Fin Heat Sinks", Materials Science Forum, Vols. 532-533, pp. 237-240, 2006

Online since:

December 2006




[1] J. Yogendra and et al: Microelectronics Journal, Vol. 34 (2003), pp.1195-1201.

[2] J. Markoff: The New York Times, May 17, (2004).

[3] Y. Tang, W. Liu, Z.Q. Wu and et al: Mater. Sci. Forum, Vol. 471-472 (2004), pp.248-254.

[4] N. Fang: ASME J. Manuf. Sci. Eng., Vol. 124 (2002), pp.667-675.

[5] N. Fang and I. S. Jawahir: Transaction of the NAMRC/SME, Vol. 28(2000), pp.137-142.

[6] H.T. Zhang, P.D. Liu and R.S. Hu: Int. J. Mach. Tools Manuf., Vol. 29(1989), pp.323-332.

[7] A. Kharkevich and P.K. Venuvinod: Int. J. Mach. Tools Manuf., Vol. 39(1999), pp.751-769.

[8] Z.J. Li and et al: MED 6-2, Manuf. Sci. Tech., ASME, Vol. 2 (1997), pp.305-312.

[9] I.S. Jawahir and P.L.B. Oxley: Proc. Int. Conf. ASME, MI'88, Atlanta, Georgia, (1988), pp.311-320.

[10] I.S. Jawahir and C.A. von Luttervelt: CIRP Ann. Vol. 42(1993), pp.659-685.

[11] C.A. Luttervelt and et al: CIRP Ann., Vol. 47 (1998), pp.587-626.
