Study on Surface Integrity of an Ultra-High Strength Alloy in HSC Process

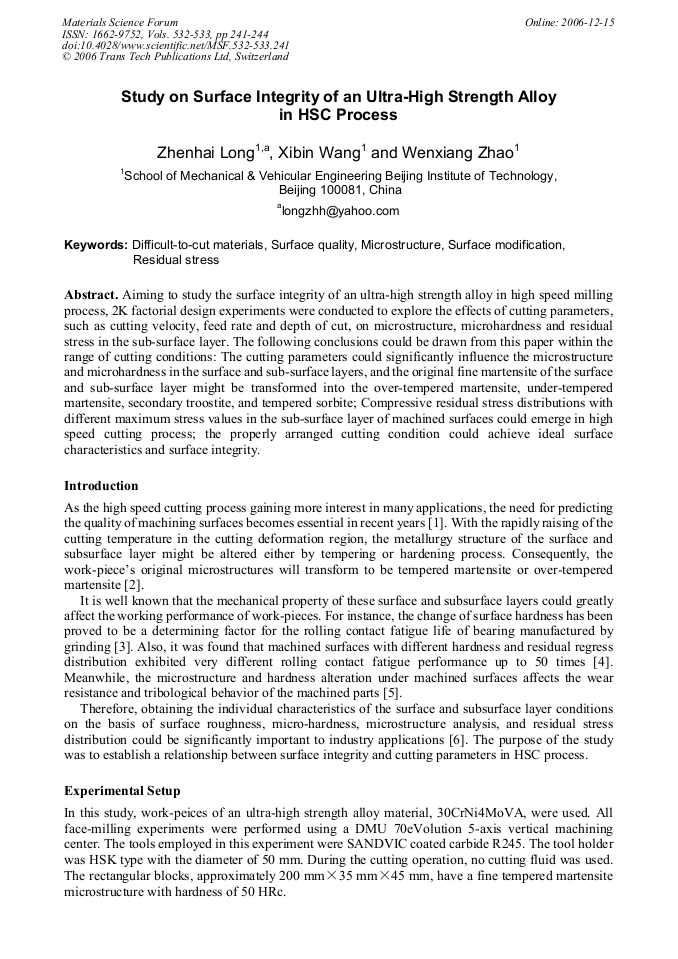

Article Preview

Aiming to study the surface integrity of an ultra-high strength alloy in high speed milling process, 2K factorial design experiments were conducted to explore the effects of cutting parameters, such as cutting velocity, feed rate and depth of cut, on microstructure, microhardness and residual stress in the sub-surface layer. The following conclusions could be drawn from this paper within the range of cutting conditions: The cutting parameters could significantly influence the microstructure and microhardness in the surface and sub-surface layers, and the original fine martensite of the surface and sub-surface layer might be transformed into the over-tempered martensite, under-tempered martensite, secondary troostite, and tempered sorbite; Compressive residual stress distributions with different maximum stress values in the sub-surface layer of machined surfaces could emerge in high speed cutting process; the properly arranged cutting condition could achieve ideal surface characteristics and surface integrity.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu




Z. H. Long et al., "Study on Surface Integrity of an Ultra-High Strength Alloy in HSC Process ", Materials Science Forum, Vols. 532-533, pp. 241-244, 2006

Online since:

December 2006




[1] S. Tlusty: J. of Manufact. Sci. & Eng., ASME, Vol. 119 (1997) No. 5, pp.664-666.

[2] M. Field, W. P. Koster and J. B. Kohls: Technical Report AFML-TR-70-11, Air Force Material Laboratory, MATF, Wright-Patterson Air Force Base, Ohio, U.S.A. (1970).

[3] T. A Harris: Rolling Bearing Analysis (Wiley, New York 1991).

[4] S. Agha, and C. R. Liu: Wear, Vol. 244 (2000), pp.52-59.

[5] B.J. Griffiths and D.C. Furze: ASME J. Eng. Ind., Vol. 109, pp.338-342.

[6] M.C. Shaw: Metal Cutting Principles (Oxford Science Publications, 1989). (a) vc=157 m/min (b) vc=314 m/min Fig. 5 Residual stress distribution achieved at different cutting conditions (fz =0. 1 mm/z; ap=0. 8 mm).
