Study on Effects of the Feed on AFM-Based Nanomachining Process

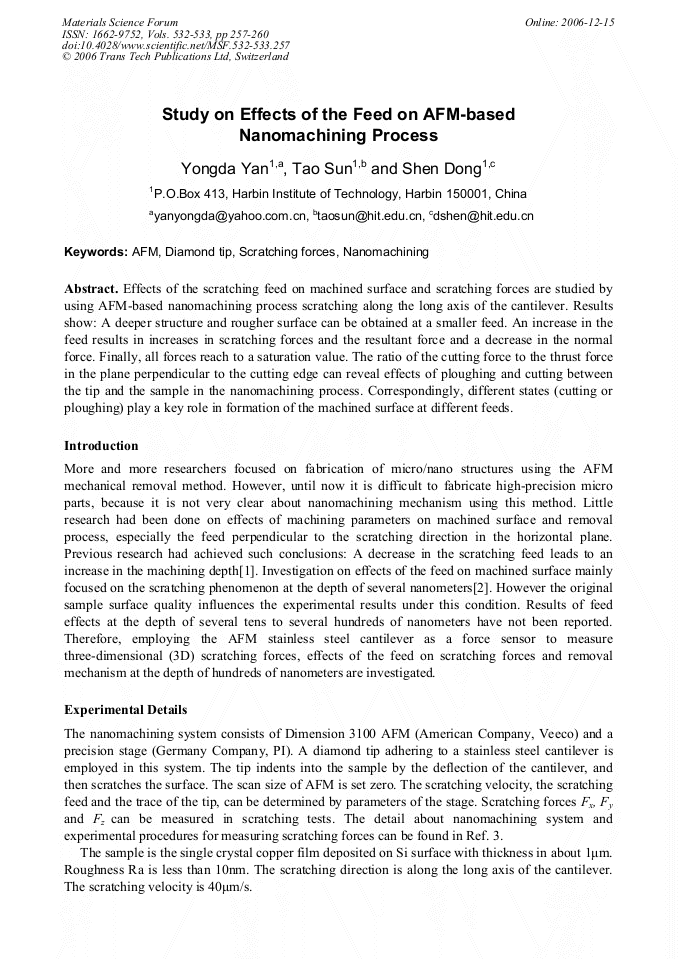

Article Preview

Effects of the scratching feed on machined surface and scratching forces are studied by using AFM-based nanomachining process scratching along the long axis of the cantilever. Results show: A deeper structure and rougher surface can be obtained at a smaller feed. An increase in the feed results in increases in scratching forces and the resultant force and a decrease in the normal force. Finally, all forces reach to a saturation value. The ratio of the cutting force to the thrust force in the plane perpendicular to the cutting edge can reveal effects of ploughing and cutting between the tip and the sample in the nanomachining process. Correspondingly, different states (cutting or ploughing) play a key role in formation of the machined surface at different feeds.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu




Y. D. Yan et al., "Study on Effects of the Feed on AFM-Based Nanomachining Process", Materials Science Forum, Vols. 532-533, pp. 257-260, 2006

Online since:

December 2006




[1] T. Sumomogi, T. Endo and K. Kuwahara: J. Vac. Sci. Technol., Vol. B13 (1995), p.1257.

[2] T.H. Fang, C.I. Weng and J. G. Chang: Nanotechnology, Vol. 11 (2000), p.181.

[3] Y.D. Yan, T. Sun and S. Dong: Ultramicroscopy, Vol. 105 (2005), p.62.

[4] X.C. Luo: Research on Generation Mechanism of Micro/nano Machined Aurfaces Based on Molecular Dynamics (Phd Paper, Harbin Institute of Technology 2002). Fig. 5 Relation between the feed and Fc/Fn.
