Study on Scanner for Large-Diameter Tubular Joint Welds Based on Ultrasonic Phased Array

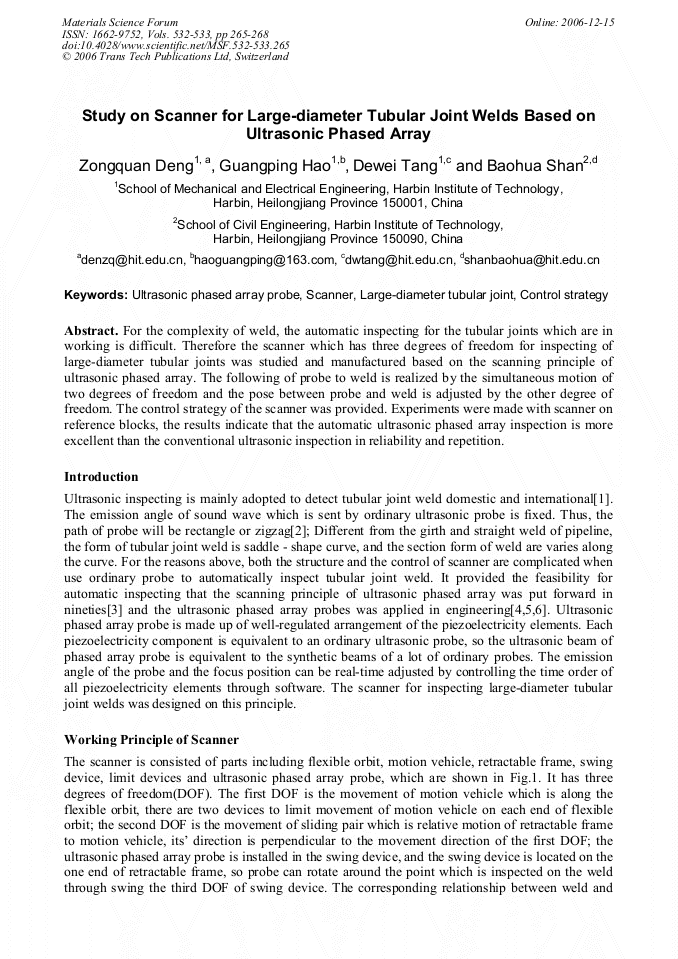

Article Preview

For the complexity of weld, the automatic inspecting for the tubular joints which are in working is difficult. Therefore the scanner which has three degrees of freedom for inspecting of large-diameter tubular joints was studied and manufactured based on the scanning principle of ultrasonic phased array. The following of probe to weld is realized by the simultaneous motion of two degrees of freedom and the pose between probe and weld is adjusted by the other degree of freedom. The control strategy of the scanner was provided. Experiments were made with scanner on reference blocks, the results indicate that the automatic ultrasonic phased array inspection is more excellent than the conventional ultrasonic inspection in reliability and repetition.



Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu






Z. Q. Deng et al., "Study on Scanner for Large-Diameter Tubular Joint Welds Based on Ultrasonic Phased Array", Materials Science Forum, Vols. 532-533, pp. 265-268, 2006

Online since:

December 2006




[1] Z.H. Cheng: Nondestructive Testing, Vol. 16 (1994) No. 8, pp.234-240.

[2] Z.Y. Liu, R. Pei and L. Wang: Journal of Welding, Vol. 23 (2002) No. 3, pp.71-74.

[3] J. Ritter: NDTnet., Vol. 1, (1996) No. 12.

[4] Q. Zhou, F.J. Liu and Z.J. Li: Ordnace Material Science and Engineering, Vol. 25 (2002) No. 1, pp.34-37.

[5] S. Chatillon, G. Cattiaux and et al: Ultrasonics, Vol. 38 (2000), pp.131-134.

[6] J. Poguet, A. Garcia, J. Vazquez and et al: Phased Array Technology Concepts, Probes and Applications (8 th, Barcelona: European Congress on NDT, 2002). Fig. 5 Picture of inspection on reference blocks (a) First B-scan (b) Second B-scan Fig. 6 B-scans image of hole in reference block.
