Breaking Elongation Properties of Hybrid Yarns by Commingling Process

Abstract:

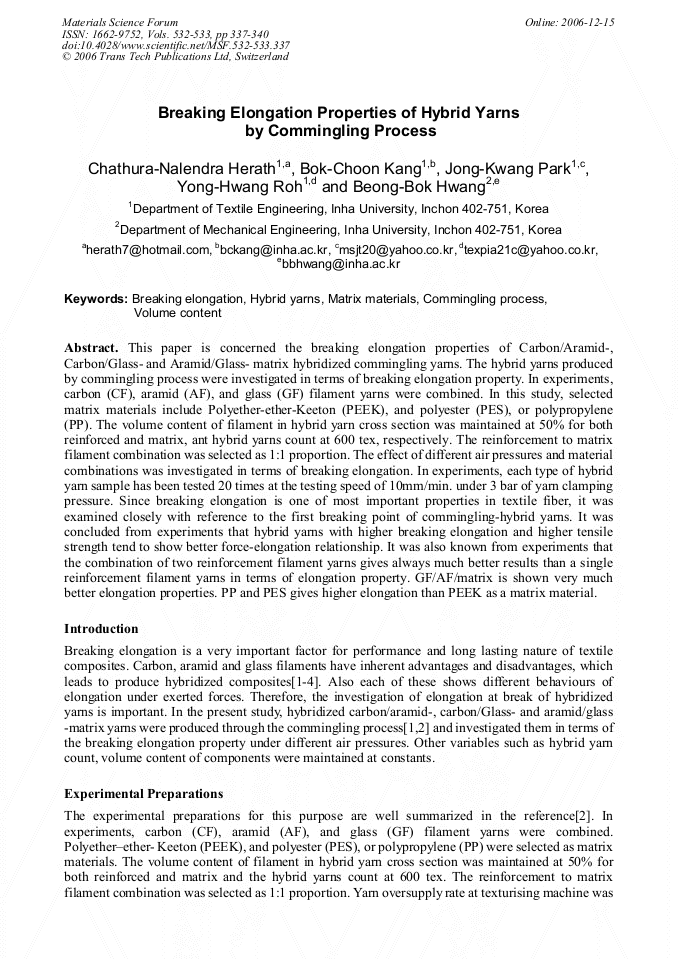

Article Preview

This paper is concerned the breaking elongation properties of Carbon/Aramid-, Carbon/Glass- and Aramid/Glass- matrix hybridized commingling yarns. The hybrid yarns produced by commingling process were investigated in terms of breaking elongation property. In experiments, carbon (CF), aramid (AF), and glass (GF) filament yarns were combined. In this study, selected matrix materials include Polyether-ether-Keeton (PEEK), and polyester (PES), or polypropylene (PP). The volume content of filament in hybrid yarn cross section was maintained at 50% for both reinforced and matrix, ant hybrid yarns count at 600 tex, respectively. The reinforcement to matrix filament combination was selected as 1:1 proportion. The effect of different air pressures and material combinations was investigated in terms of breaking elongation. In experiments, each type of hybrid yarn sample has been tested 20 times at the testing speed of 10mm/min. under 3 bar of yarn clamping pressure. Since breaking elongation is one of most important properties in textile fiber, it was examined closely with reference to the first breaking point of commingling-hybrid yarns. It was concluded from experiments that hybrid yarns with higher breaking elongation and higher tensile strength tend to show better force-elongation relationship. It was also known from experiments that the combination of two reinforcement filament yarns gives always much better results than a single reinforcement filament yarns in terms of elongation property. GF/AF/matrix is shown very much better elongation properties. PP and PES gives higher elongation than PEEK as a matrix material.

Info:

Periodical:

Materials Science Forum (Volumes 532-533)

Edited by:

Chengyu Jiang, Geng Liu, Dinghua Zhang and Xipeng Xu

Pages:

337-340

Citation:

C. N. Herath et al., "Breaking Elongation Properties of Hybrid Yarns by Commingling Process", Materials Science Forum, Vols. 532-533, pp. 337-340, 2006

Online since:

December 2006

Export:

Price:

$38.00

[1] B.D. Choi, O. Diestel, P. Offermann, E. Maeder and T. Huebner: Vertrag Auf Dem 8. Internationalen Techtextil Symposium, Frankfurt, (1999).

[2] C.N. Herath: An Investigation for Hybridisation of Different Reinforced Filament Yarns by Commingling Process (MSC Research Thesis, Technical University, Dresden, Germany 2000).

[3] B.D. Choi, O. Diestel and P. Offermann: Advancement of Commingling Hybrid Yarns for Fibre Reinforced Thermoplastics (TechTextil-Symposium, Frankfurt/Main, Germany 2001).

[4] K.H.G. Ashbee: Fundamental Principles of Fibre Reinforced Composites (Technomic Publishing, Lancaster 1987).
